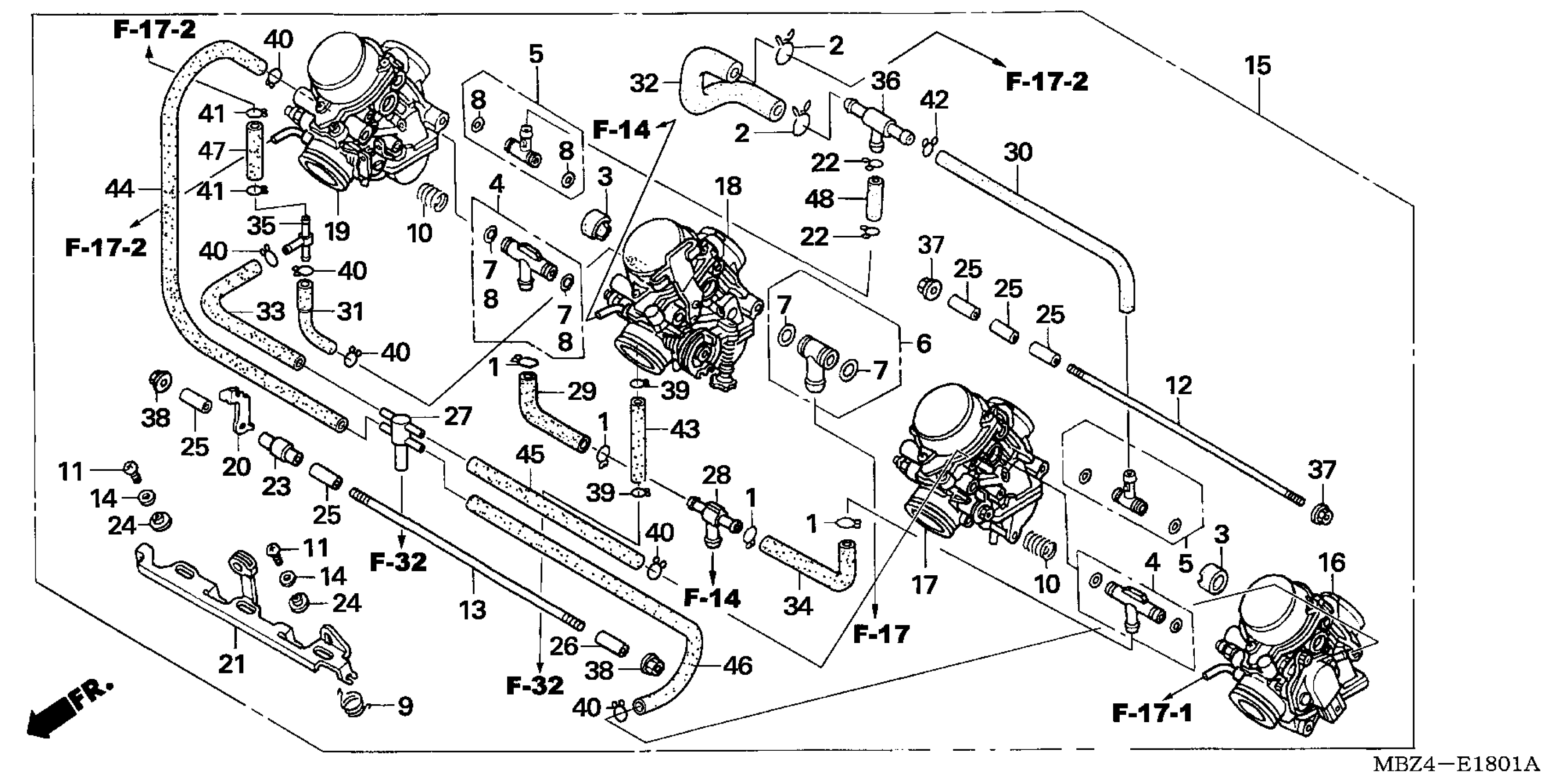

Honda CB600FAC (06) 599, ITA, VIN# ZDCPC361-6F100001 CARBURETOR (COMPONENT PARTS) Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

CLIP, BREATHER TUBE

15772-551-000

$2.05

3

JOINT

16024-KAZ-000

$29.30

4

JOINT SET

16024-MZ2-E00

$31.15

5

JOINT SET

16026-MZ2-E00

$38.48

6

JOINT SET

16027-MAL-E00

$41.89

7

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$12.84

7

GASKET SET B

16040-MZ1-790

$12.84

8

GASKET SET B

16040-MZ1-790

$12.84

9

SPRING, TORSION COIL

16051-MZ5-670

Unavailable

10

SPRING, COMPRESSION COIL

16053-MA6-003

$9.07

11

SCREW, TRUSS (4X8)

16081-KAZ-000

$3.10

12

BOLT

16083-MAT-000

Unavailable

13

BOLT

16084-MER-D01

$12.95

14

WASHER, PLAIN

16085-MV4-000

$2.92

15

CARBURETOR ASSY. (VP49T A)

16100-MBZ-L51

$1,407.74

16

CARBURETOR ASSY. 1

16101-MBZ-L51

$366.33

17

CARBURETOR ASSY. 2

16102-MBZ-L51

$366.33

18

CARBURETOR ASSY. 3

16103-MBZ-L51

$366.33

19

CARBURETOR ASSY. 4

16104-MBZ-L51

$366.33

20

PLATE, BYSTARTER STAY

16119-MBZ-610

$7.00

21

LEVER, STARTER

16120-MER-D01

Unavailable

22

CLIP, TUBE

16163-GHB-610

$1.73

22

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.73

23

COLLAR

16172-MBZ-610

Unavailable

24

COLLAR

16175-MZ1-000

$13.66

25

PIN, DOWEL (7.9X20)

16178-MAS-600

$8.39

26

PIN, DOWEL (7.9X12.4)

16178-MBZ-K31

$3.43

27

T-JOINT

16180-ME5-761

$31.64

28

T-JOINT

16180-MM5-601

$21.95

29

TUBE, FUEL

16195-MY9-000

$12.33

30

TUBE This part replaces 16197-MBZ-L11.

16955-MEC-505

$9.64

31

TUBE

16198-MBZ-L11

$13.77

32

TUBE

16199-MBZ-K31

Unavailable

33

TUBE

16199-MBZ-L11

$14.36

34

TUBE, FUEL

16199-MY9-000

Unavailable

35

PIPE, THREE WAY JOINT

16960-ME9-000

$16.49

36

T-JOINT

17193-MN5-000

$19.03

37

NUT, FLANGE (5MM)

94050-05000

$1.49

38

NUT, FLANGE (6MM)

94050-06000

$1.49

39

CLIP, TUBE (B7)

95002-02079

$1.49

40

CLIP, TUBE (B8)

95002-02089

$1.49

41

CLIP, TUBE (B10)

95002-02100

$1.90

42

CLIP, TUBE (B12)

95002-02129

$1.49

43

BULK HOSE, VACUUM (3.5X1000) (3.5X100)

95005-35001-20M

$9.67

44

BULK HOSE, VACUUM (4.5X1000) (4.5X160)

95005-45001-20M

$34.14

45

BULK HOSE, VACUUM (4.5X1000) (4.5X235)

95005-45001-20M

$34.14

46

BULK HOSE, VACUUM (4.5X1000) (4.5X375)

95005-45001-20M

$34.14

47

BULK HOSE, VACUUM (5.5X3000) (5.3X75)

95005-55003-20M

$34.09

48

BULK HOSE, VACUUM (7X1000) (7X25)

95005-70001-50M

$12.71
