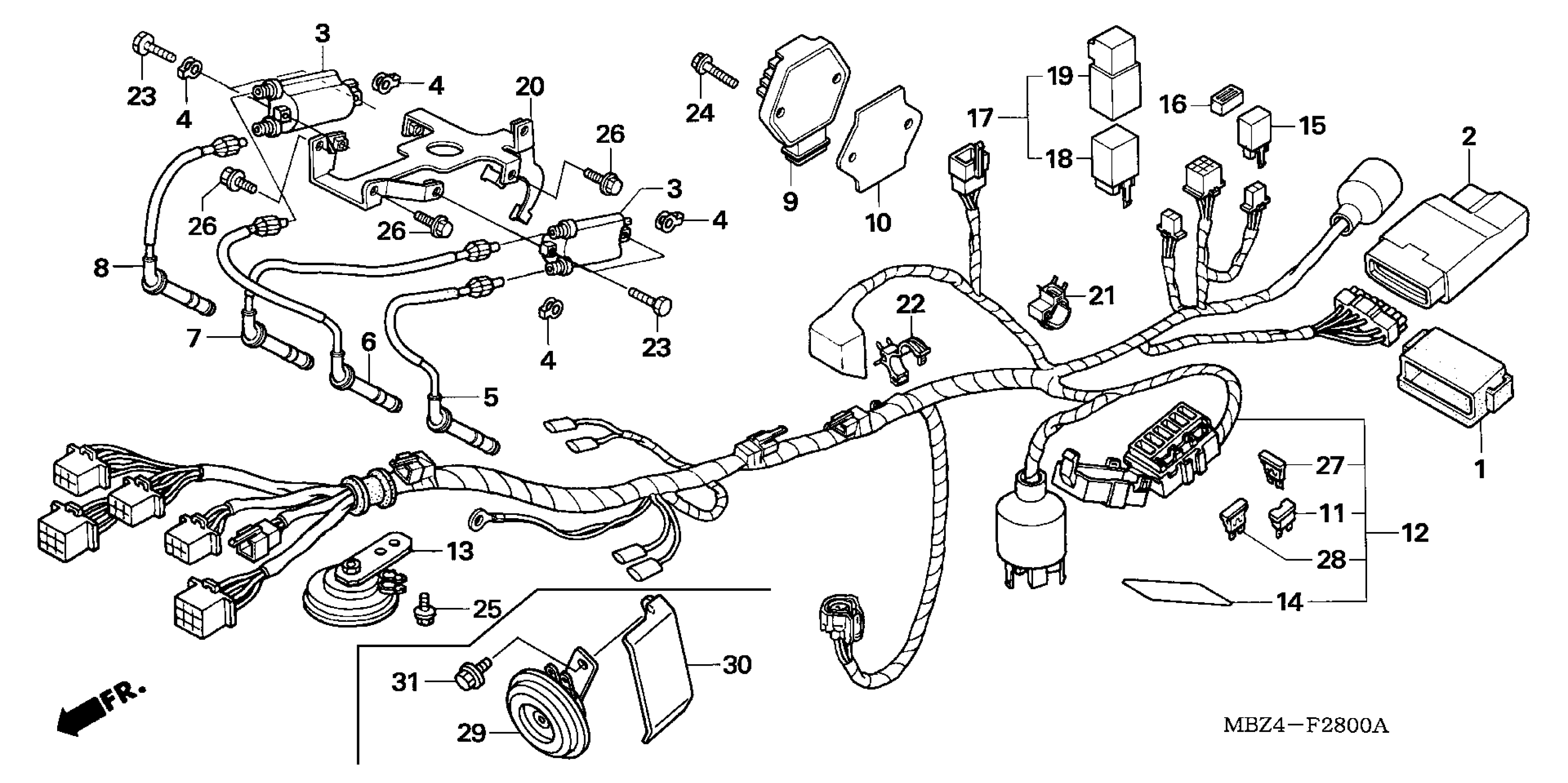

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 WIRE HARNESS Diagram

#

Description
Price

1

CUSHION, SPARK UNIT

30405-MBT-610

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30410-MBZ-A41

$361.80

3

COIL, IGNITION

30510-MCC-003

$80.74

4

SPACER, IGNITION COIL

30520-ML7-000

$3.52

5

CAP ASSY. 1, IGNITION

30751-MBZ-K00

$37.09

6

CAP ASSY. 2, IGNITION

30752-MBZ-K00

$34.45

7

CAP ASSY. 3, IGNITION

30753-MBZ-K00

$37.09

8

CAP ASSY. 4, IGNITION

30754-MBZ-K00

Unavailable

9

RECTIFIER ASSY., REGULATE

31600-KFG-861

$209.99

9

RECTIFIER ASSY., REGULATE This part replaces 31600-KFG-862.

31600-KFG-861

$209.99

10

PLATE, REGULATE RECTIFIER

31601-MBZ-G00

$8.28

11

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

12

WIRE HARNESS

32100-MBZ-A40

Unavailable

15

RELAY, TURN SIGNAL (MITSUBA)

38301-MEG-000

$35.31

16

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.80

17

RELAY ASSY., STARTER

38500-GC7-612

$45.68

18

RELAY, STARTER (MITSUBA)

38501-GN2-014

$44.57

19

SUSPENSION, STARTER RELAY (MITSUBA)

38506-GC7-611

$4.18

20

STAY, IGNITION COIL

50130-MBZ-K00

$7.41

21

CLIP, CABLE (15MM)

90690-GHB-651

$1.99

22

CLIP, CABLE (20MM)

90690-GHB-661

$1.99

23

BOLT, HEX. (6X20)

92101-06020-4J

$1.26

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

26

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

27

FUSE, MINI (10A)

98200-41000

$1.20

28

FUSE, MINI (20A)

98200-42000

$1.10

29

HORN

38120-MBZ-C50

Unavailable

30

GUARD, HORN

50380-MBZ-C50

Unavailable

31

BOLT, FLANGE (8X14) (DR)

90116-MBZ-C50

$0.97
