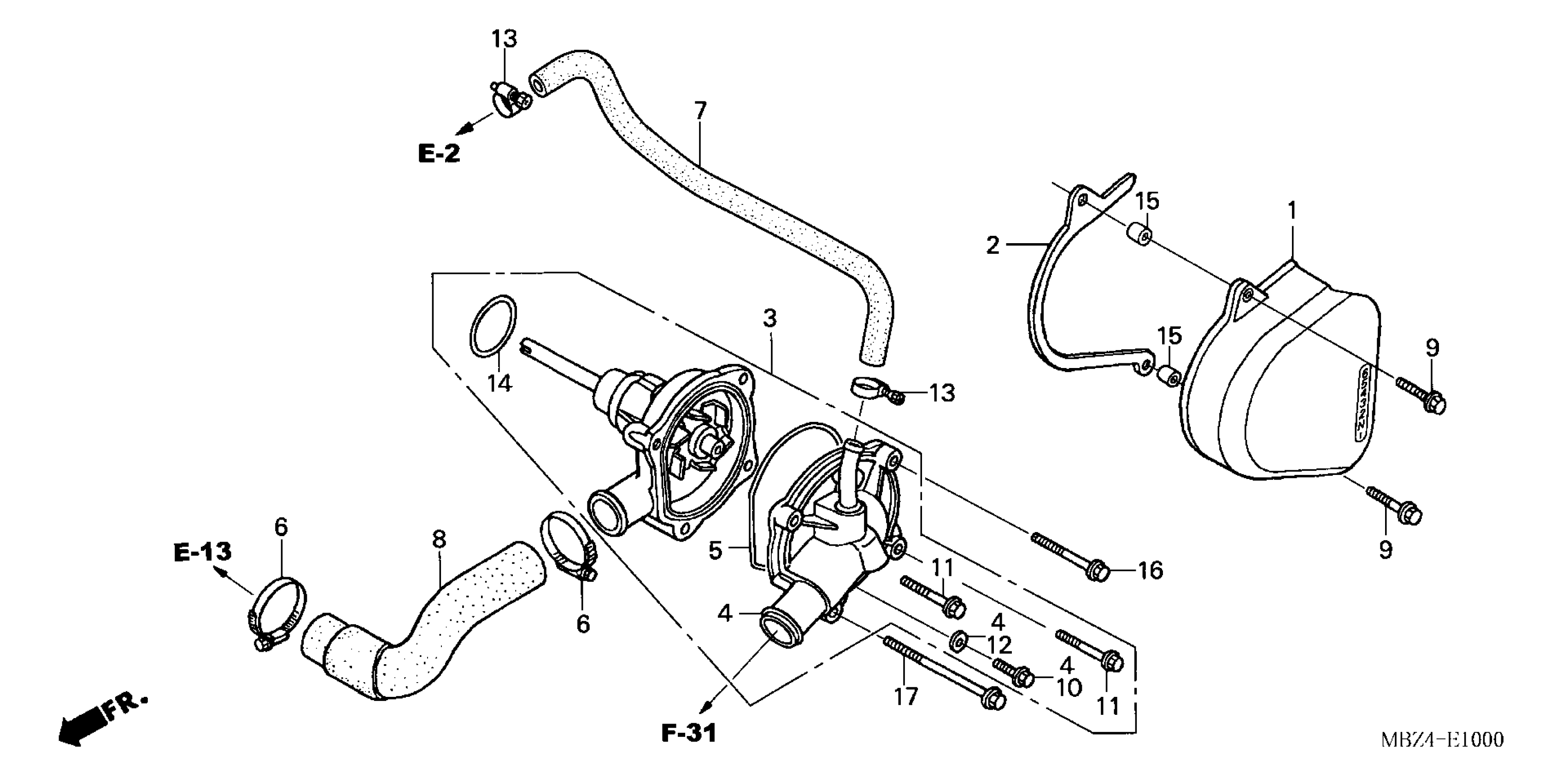

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 WATER PUMP Diagram

COVER, L. RR.

11351-MBZ-C50

Unavailable

PLATE, DRIVE CHAIN GUIDE

11355-MBZ-G00

Unavailable

WATER PUMP

19200-MBZ-C50

Unavailable

COVER, WATER PUMP

19220-MBZ-C50

$70.32

GASKET, WATER PUMP COVER

19226-ML7-000

$4.71

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

HOSE, WATER

19520-MBZ-610

Unavailable

HOSE A, WATER

19525-MV9-670

$25.85

BOLT, FLANGE (6X45) (NSHF)

90006-GHB-720

$1.72

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.43

BOLT, FLANGE (6X25)

90121-MV9-670

$2.75

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

CLAMP, WATER HOSE

90670-GHB-610

$4.44

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.71

PIN, DOWEL (8X20)

94301-08200

$2.76

BOLT, FLANGE (6X35)

96001-06035-00

$1.29

BOLT, FLANGE (6X75)

96001-06075-00

$2.06
