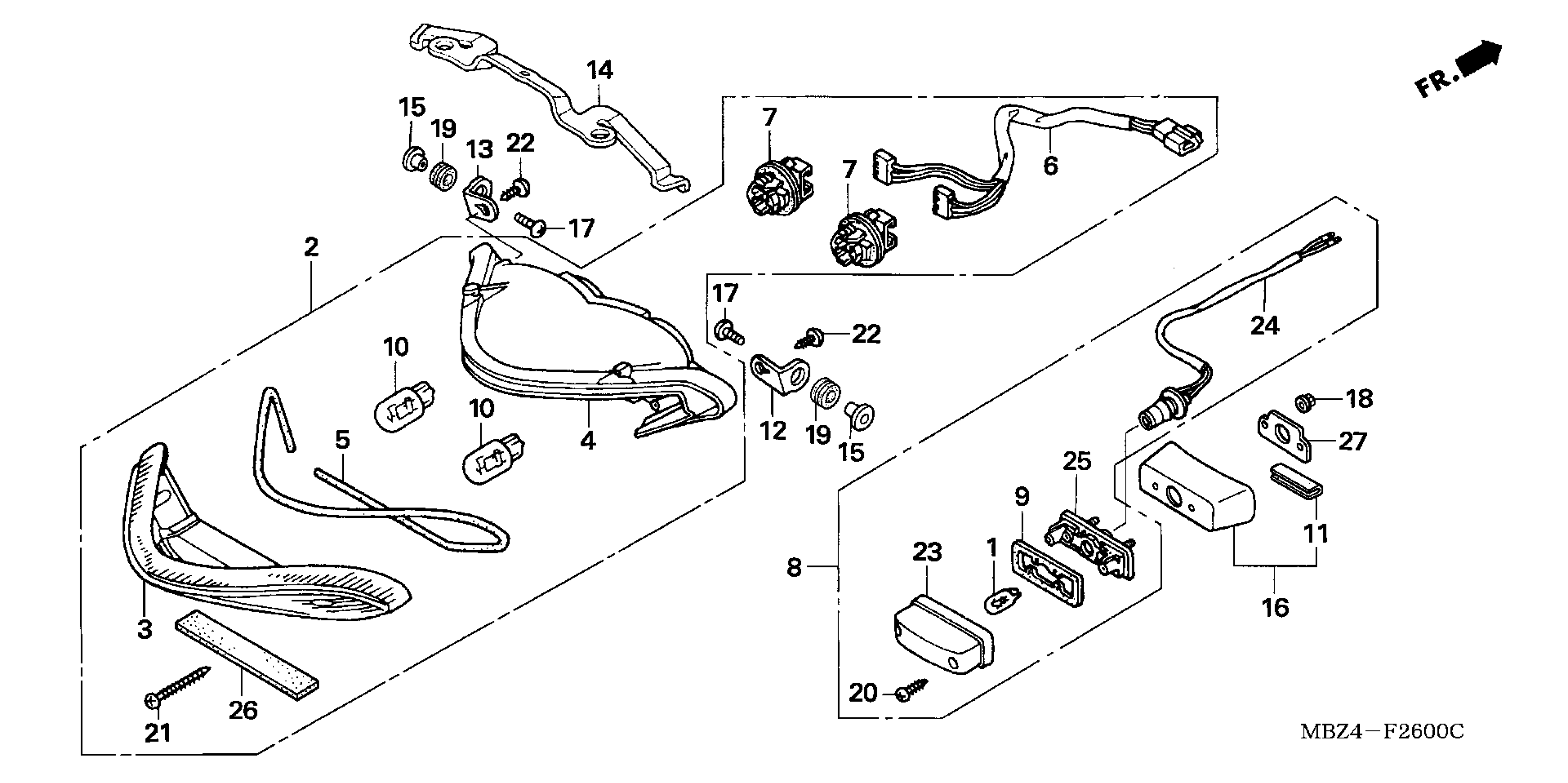

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 TAILLIGHT Diagram

#

Description
Price

1

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.66

2

TAILLIGHT UNIT

33701-MBZ-A10

Unavailable

3

LENS, TAILLIGHT

33702-MCZ-671

Unavailable

4

BASE, TAILLIGHT

33703-MCZ-671

Unavailable

5

GASKET, TAILLIGHT

33704-MCZ-003

Unavailable

6

WIRE

33705-MCZ-003

Unavailable

7

SOCKET

33720-GZ9-003

$11.64

8

LIGHT ASSY., LICENSE (12V 5W)

33720-MBZ-K01

Unavailable

9

GASKET, LENS

33729-MCZ-003

$8.62

10

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$3.73

11

RUBBER, PROTECTOR

64121-MCF-000

$2.96

12

STAY, R. TAILLIGHT SIDE

77212-MBZ-K00

Unavailable

13

STAY, L. TAILLIGHT SIDE

77213-MBZ-K00

$8.16

14

STAY, TAILLIGHT (UPPER)

77218-MBZ-K00

Unavailable

15

COLLAR, TAILLIGHT MOUNT

77219-MBZ-K00

$1.91

16

BRACKET, LICENSE LIGHT

80201-MBZ-A10

$13.74

17

SCREW, TRUSS (5X14)

90109-KBV-000

$1.78

18

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.25

19

RUBBER, TAILLIGHT MOUNTING

90851-961-000

$3.51

20

SCREW, TAPPING (4X16)

93901-24480

$0.75

21

SCREW, TAPPING (4X35)

93901-34880

$0.46

22

SCREW, TAPPING (5X12)

93903-25210

$0.75

23

COVER, LICENSE

33721-GET-671

$17.41

24

SOCKET, LICENSE

33722-MBZ-K01

$18.41

25

BASE, LICENSE

33723-MCZ-671

$18.71

26

RUBBER, TAILLIGHT

80110-MBZ-K00

$5.00

27

PLATE, LICENSE LIGHT

80205-MBZ-C50

Unavailable
