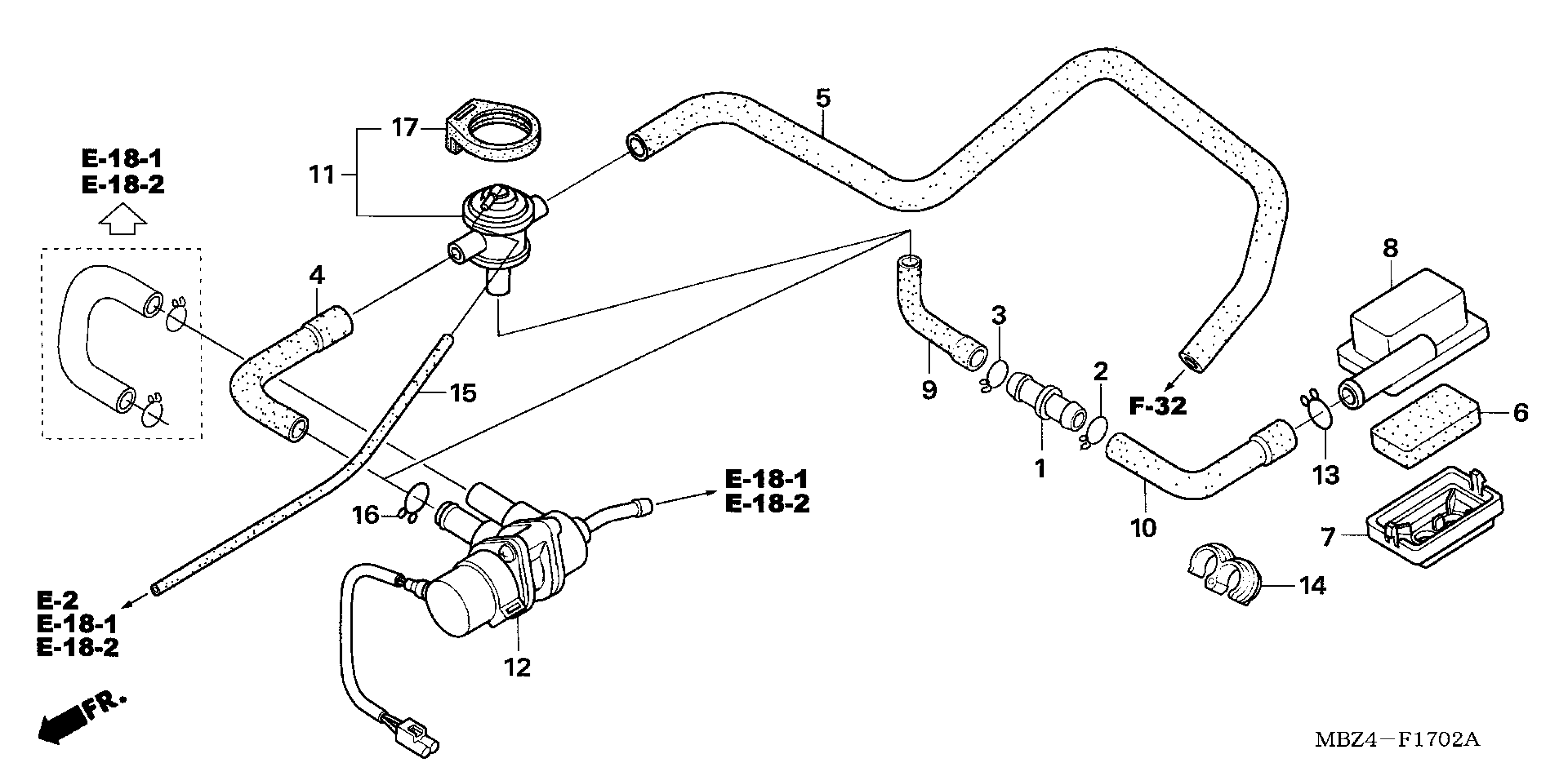

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 SUB AIR CLEANER Diagram

JOINT (TWO-WAY)

18631-MAH-710

$7.73

CLIP A, BREATHER TUBE

17316-MN1-670

$2.22

CLIP A, BREATHER TUBE

17316-MN1-670

$2.22

FILTER, SUB-AIR CLEANER

17254-KAZ-000

$1.94

COVER, SUB-AIR CLEANER

17256-MBZ-K00

Unavailable

CASE, SUB-AIR CLEANER

17257-MBZ-K00

Unavailable

TUBE, SOLENOID VALVE

17258-MBZ-K00

$3.59

TUBE, SUB-AIR CLEANER

17259-MBZ-K00

$4.90

VALVE ASSY., VENT SOLENOID

17450-MBZ-K01

Unavailable

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

CLIP, TUBE

90696-SB3-003

$6.90

CLIP, BREATHER TUBE

15772-551-000

$1.81
