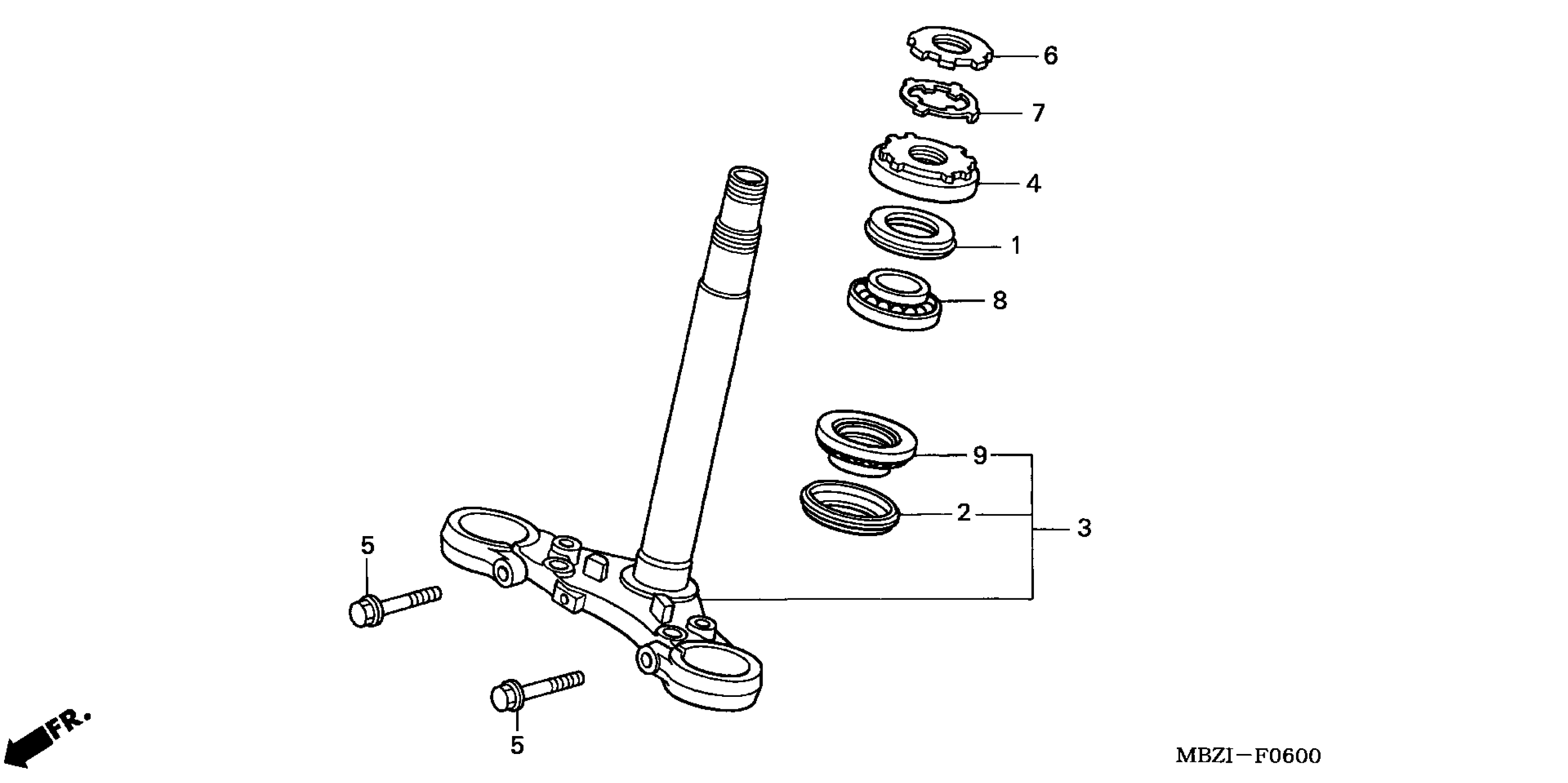

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 STEERING STEM Diagram

#

Description

Price

1

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$10.81

2

DUST SEAL, STEERING HEAD

53214-371-010

$11.28

3

STEM SUB-ASSY., STEERING

53219-MBZ-C51

Unavailable

4

THREAD, STEERING HEAD TOP

53220-422-000

$29.39

5

BOLT, FLANGE (10X35)

90115-KY6-000

$1.65

6

THREAD B, STEERING HEAD TOP

90302-425-830

$19.51

7

WASHER

90506-MBL-610

$4.41

8

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$31.88

8

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$31.88

9

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$31.88

9

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$31.88
