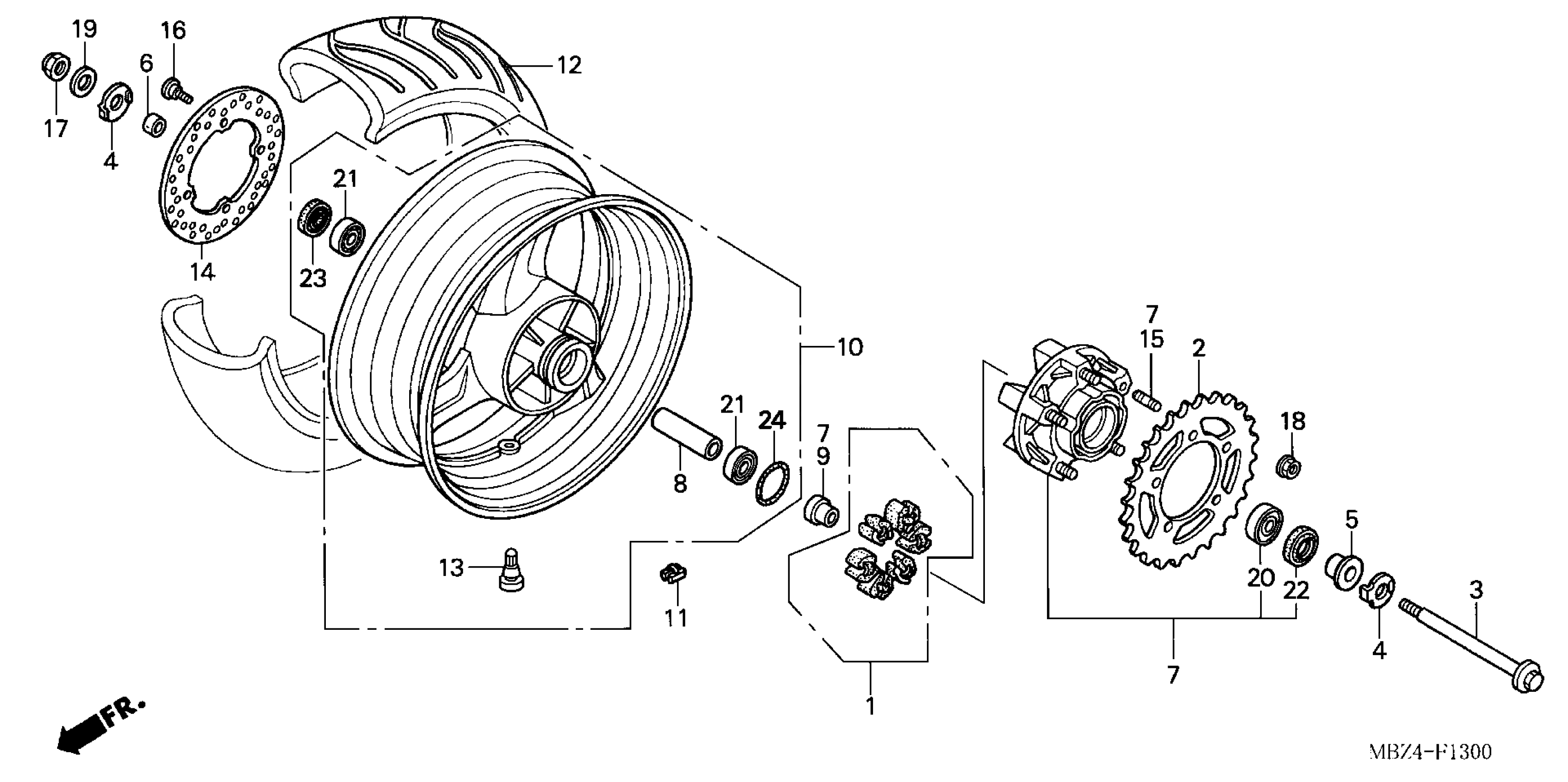

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MER-D00

$83.63

2

SPROCKET, FINAL DRIVEN (42T)

41201-MBZ-G01

$46.56

3

AXLE, RR. WHEEL

42301-MBZ-G00

Unavailable

4

WASHER, RR. AXLE

42306-KT8-000

Unavailable

5

COLLAR, L. RR. WHEEL SIDE

42311-MBZ-G00

Unavailable

6

COLLAR, RR. BRAKE SIDE

42312-MBZ-G00

Unavailable

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MBZ-G00

$244.06

8

COLLAR, RR. WHEEL DISTANCE

42620-MBZ-610

$13.41

9

COLLAR B, RR. WHEEL DISTANCE

42625-MBZ-G00

$12.46

10

WHEEL SUB-ASSY., RR.

42650-MBZ-C50

Unavailable

11

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.15

11

WEIGHT, BALANCE (20G)

42705-MER-D00

$16.09

11

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.85

12

TIRE, RR. (180/55ZR17) (M/C 73W) (BS) This part replaces 42711-MAS-033.

42711-MAS-043

Unavailable

12

TIRE, RR. (180/55ZR17) (M/C 73W) (BS)

42711-MAS-043

Unavailable

12

TIRE, RR. (180/55ZR17) (MICHELIN) (NOT AVAILABLE)

42711-MBZ-K02

Unavailable

13

VALVE, RIM (BS) This part replaces 42753-KBS-901.

42753-ML7-003

$11.69

13

VALVE, RIM (BS)

42753-ML7-003

$11.69

14

DISK, RR. BRAKE

43251-MBZ-G01

Unavailable

15

BOLT, STUD (12X25)

90102-MAS-000

$3.83

16

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.93

16

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.93

17

NUT, SPECIAL U (16MM) This part replaces 90305-MBZ-C50.

90305-MCB-610

$7.55

17

NUT, SPECIAL U (16MM)

90305-MCB-610

$7.55

18

NUT, FLANGE (12MM) (FUSERASHI)

90306-KF0-003

$3.68

20

BEARING, RADIAL BALL (6322)

91051-MAS-003

$36.76

21

BEARING, RADIAL BALL (6303)

91051-KS4-003

$35.18

21

BEARING, RADIAL BALL (6303UU) (NSK)

91054-MT6-831

$35.18

21

BEARING, RADIAL BALL (6303) This part replaces 91054-MT6-832.

91051-KS4-003

$35.18

22

DUST SEAL (30X56X7.5)

91252-MAS-003

$11.13

23

DUST SEAL (30X47X7.5)

91253-MAE-003

$14.64

24

O-RING (61X2)

91302-MA6-003

$4.93
