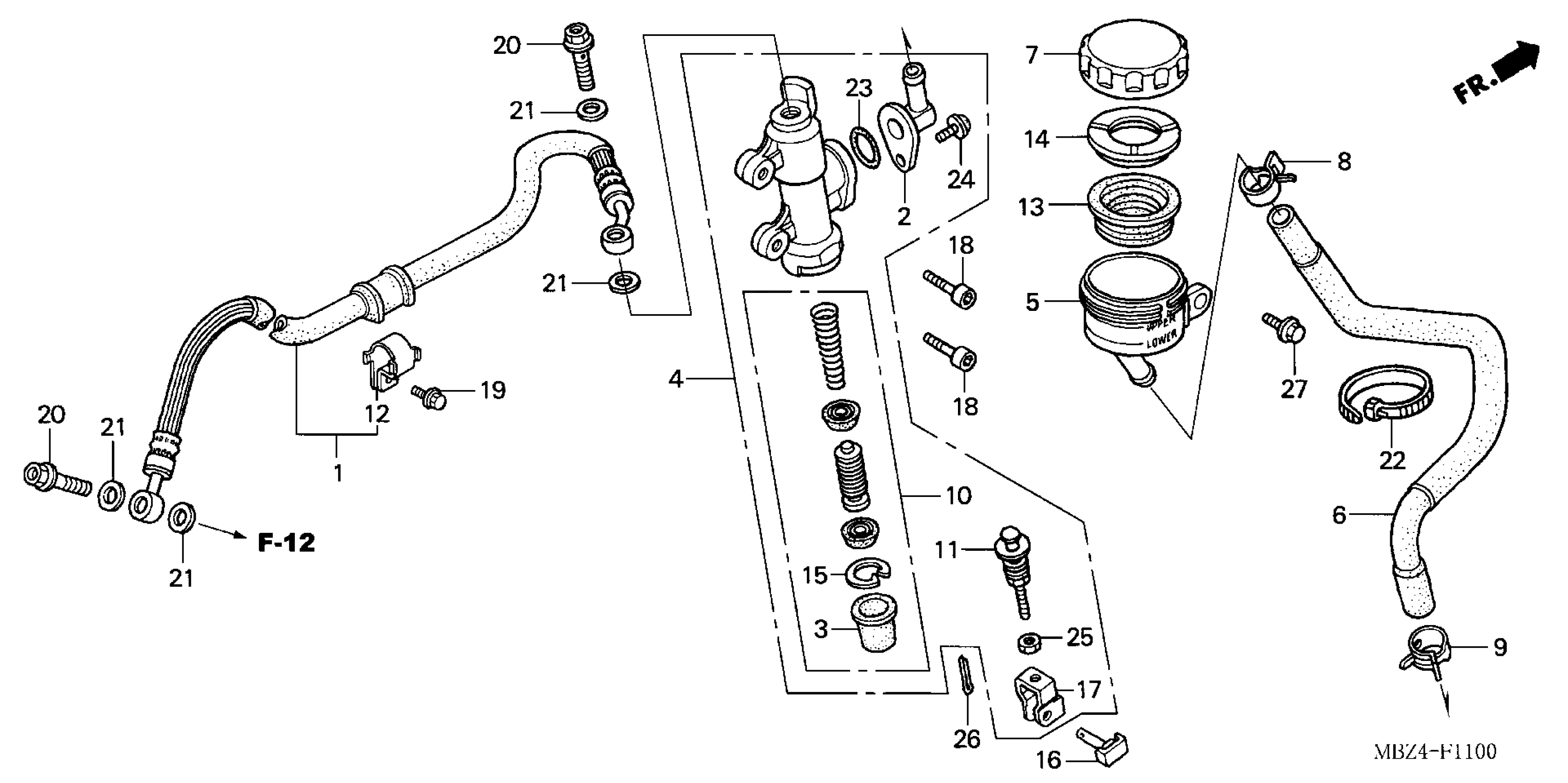

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MBZ-C51

Unavailable

2

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

3

BOOT

43504-MB2-006

$9.01

4

M/CYL SUB-ASSY, RR. This part replaces 43510-MBZ-G01.

43510-MBZ-G02

$121.61

5

CUP, OIL

43511-MR7-016

$29.55

6

HOSE, RR. MASTER CYLINDER

43512-MBZ-611

Unavailable

7

CAP, OIL CUP

43513-MY1-006

$26.39

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

10

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$41.76

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

11

ROD, PUSH

43530-KV3-701

$18.06

12

CLAMP, RR. BRAKE HOSE

43315-MBZ-C50

$14.71

13

DIAPHRAGM

45520-371-013

$12.88

14

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

15

CIRCLIP

46182-500-013

$4.46

16

PIN, BRAKE ROD

46503-MAL-000

$5.46

17

JOINT, BRAKE ROD

46504-MAL-601

$12.20

18

BOLT, SOCKET (6X18)

90040-MN5-000

$3.08

19

BOLT, FLANGE (6X18)

90105-MBZ-G00

$0.93

20

BOLT, OIL (10X22)

90145-MS9-612

$6.82

21

WASHER, OIL BOLT

90545-300-000

$3.72

22

BAND, WIRE (95MM)

90650-KV6-003

$2.90

23

O-RING (14.8X2.4)

91212-422-006

Unavailable

24

SCREW-WASHER (4X12)

93893-04012-07

$1.22

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

25

NUT, HEX. (8MM)

94002-08000-0S

$1.19

26

PIN, SPLIT (2.0X12)

94201-20120

$0.94

27

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
