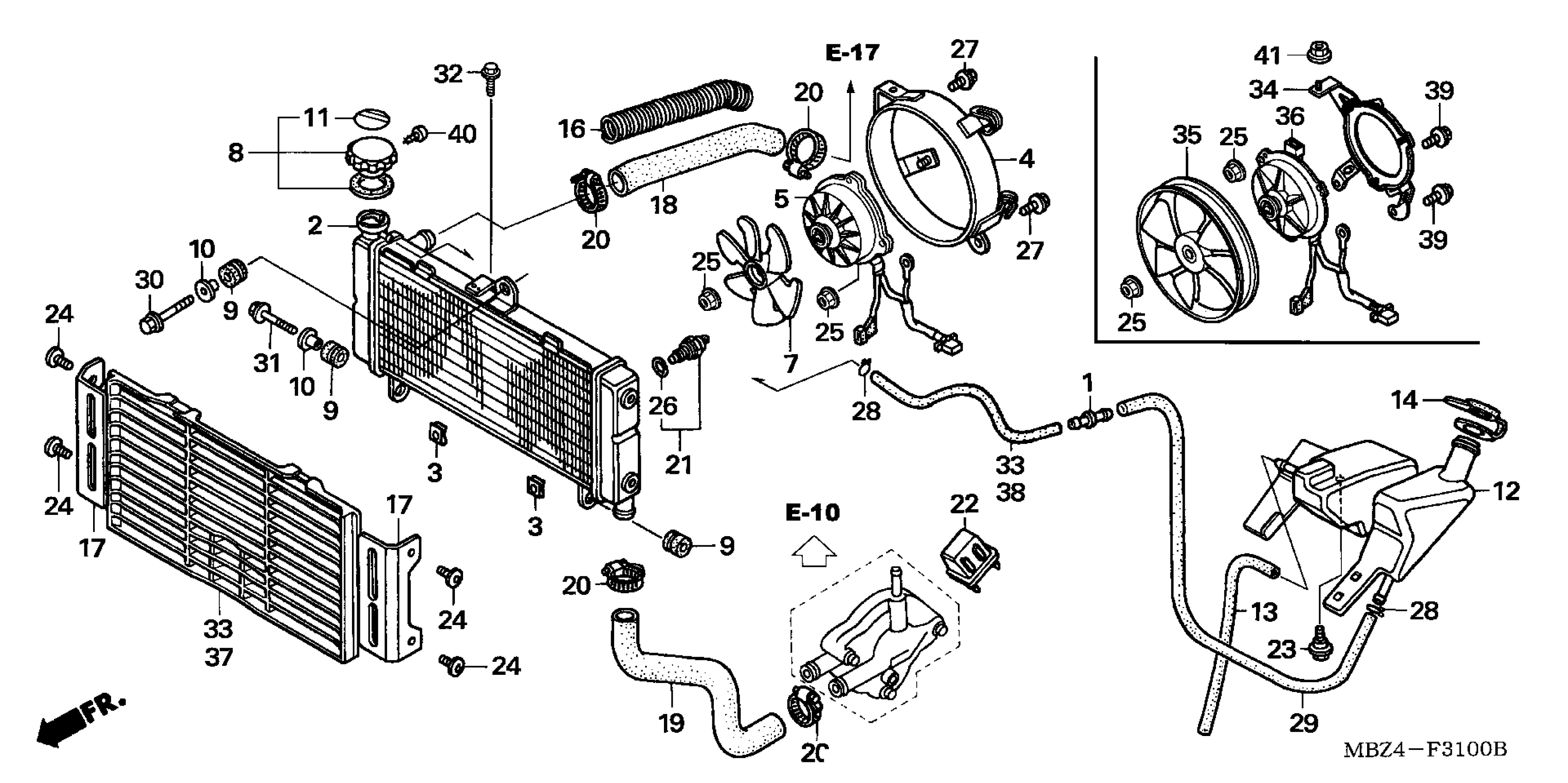

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 RADIATOR Diagram

#

Description
Price

1

JOINT, BREATHER TUBE

17359-419-670

$1.87

2

RADIATOR

19010-MBZ-C52

Unavailable

3

NUT, SETTING (6MM)

19014-KEA-003

$2.88

8

CAP, RADIATOR

19045-MY3-621

$36.33

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

10

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

10

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

11

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.28

12

TANK, RESERVE

19101-MBZ-G00

Unavailable

13

TUBE, RESERVE TANK DRAIN

19102-MBZ-K00

$6.45

14

CAP, RESERVE TANK

19104-MB0-700

$10.92

16

PROTECTOR, RADIATOR HOSE (UPPER)

19120-MBZ-G00

Unavailable

17

COVER, RADIATOR SIDE

19150-MBZ-G00

Unavailable

18

HOSE, RADIATOR (UPPER)

19501-MBZ-610

Unavailable

19

HOSE, RADIATOR (LOWER)

19504-MBZ-610

Unavailable

20

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

21

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$64.56

22

STAY, FUSE BOX

80107-MBZ-K00

$1.25

23

BOLT, FLANGE (6MM)

90111-162-000

$2.62

24

SCREW, PAN (6X14)

90118-MR1-000

$2.88

25

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

26

O-RING (13.5X1.4)

91307-PH7-660

$2.78

26

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.78

28

CLIP, TUBE (C12)

95002-80000

$0.42

29

BULK HOSE (7.3X1000)

95005-75001-20M

$20.14

30

BOLT, FLANGE (6X22)

95701-06022-07

$0.86

31

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

34

SHROUD

19015-MBZ-C51

$52.67

35

FAN, COOLING

19020-MEE-003

Unavailable

36

MOTOR ASSY., FAN

19030-MBZ-C51

Unavailable

37

GRILLE, RADIATOR

19032-MBZ-K01

Unavailable

38

HOSE, RESERVE TANK

19106-MBZ-K01

Unavailable

39

BOLT-WASHER (6X14)

93401-06014-08

$1.48

40

SCREW, TAPPING (3X8)

93901-22180

$0.83

41

NUT, FLANGE (6MM)

94050-06080

$0.59
