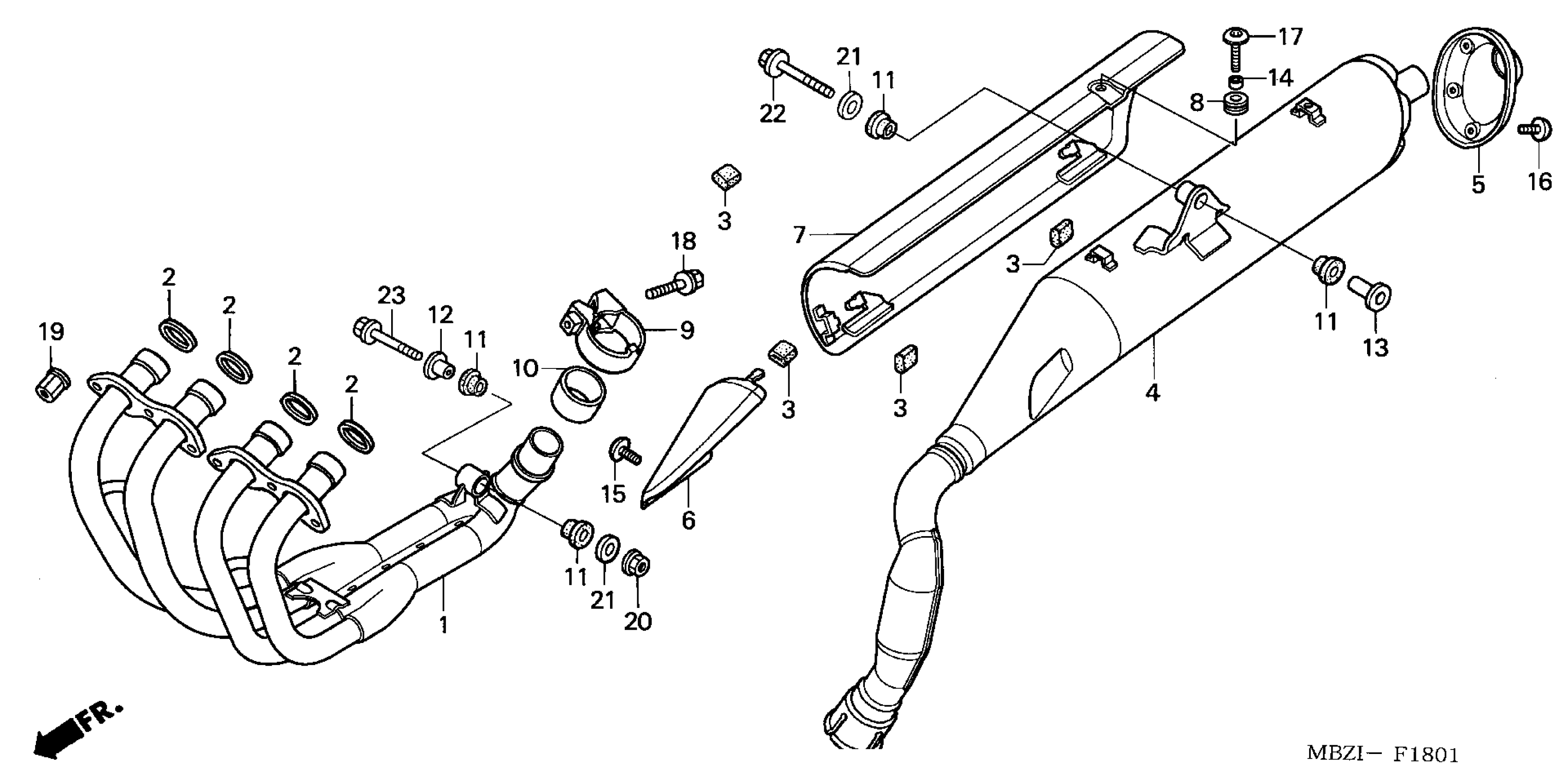

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MBZ-C50

$868.55

2

GASKET, EX. PIPE

18291-MV9-000

$4.41

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.87

4

MUFFLER, EX.

18300-MBZ-C50

$706.71

5

CAP, MUFFLER END

18313-MBZ-K00

Unavailable

6

PROTECTOR, FR. MUFFLER

18324-MBZ-K00

Unavailable

7

PROTECTOR, RR. MUFFLER

18325-MBZ-K00

Unavailable

8

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$1.99

9

BAND, R. RR. MUFFLER

18375-MG7-000

$27.00

10

GASKET, MUFFLER

18392-MG7-750

$12.26

11

RUBBER, MUFFLER MOUNTING

18421-MBZ-G00

Unavailable

12

COLLAR, MUFFLER MOUNTING This part replaces 18422-KAF-700.

18422-MAL-600

$5.51

12

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.51

13

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$7.67

14

COLLAR, TURN SIGNAL STAY

33619-459-840

$2.33

15

SCREW, PAN (6X10)

90105-MM4-000

$2.01

16

SCREW, SPECIAL (5X10)

90114-MBZ-K00

$4.55

17

SCREW, PAN (6X14)

90118-MR1-000

$2.88

18

BOLT, FLANGE (8X35)

90161-ML7-000

$3.41

19

NUT, FLANGE (7MM)

90304-MM5-000

$4.60

20

NUT, FLANGE (8MM)

94050-08070

$1.36

21

WASHER, PLAIN (8MM)

94103-08700

$0.86

22

BOLT, FLANGE (8X45)

95701-08045-07

$2.07

23

BOLT, FLANGE (8X50)

96300-08050-07

$2.17
