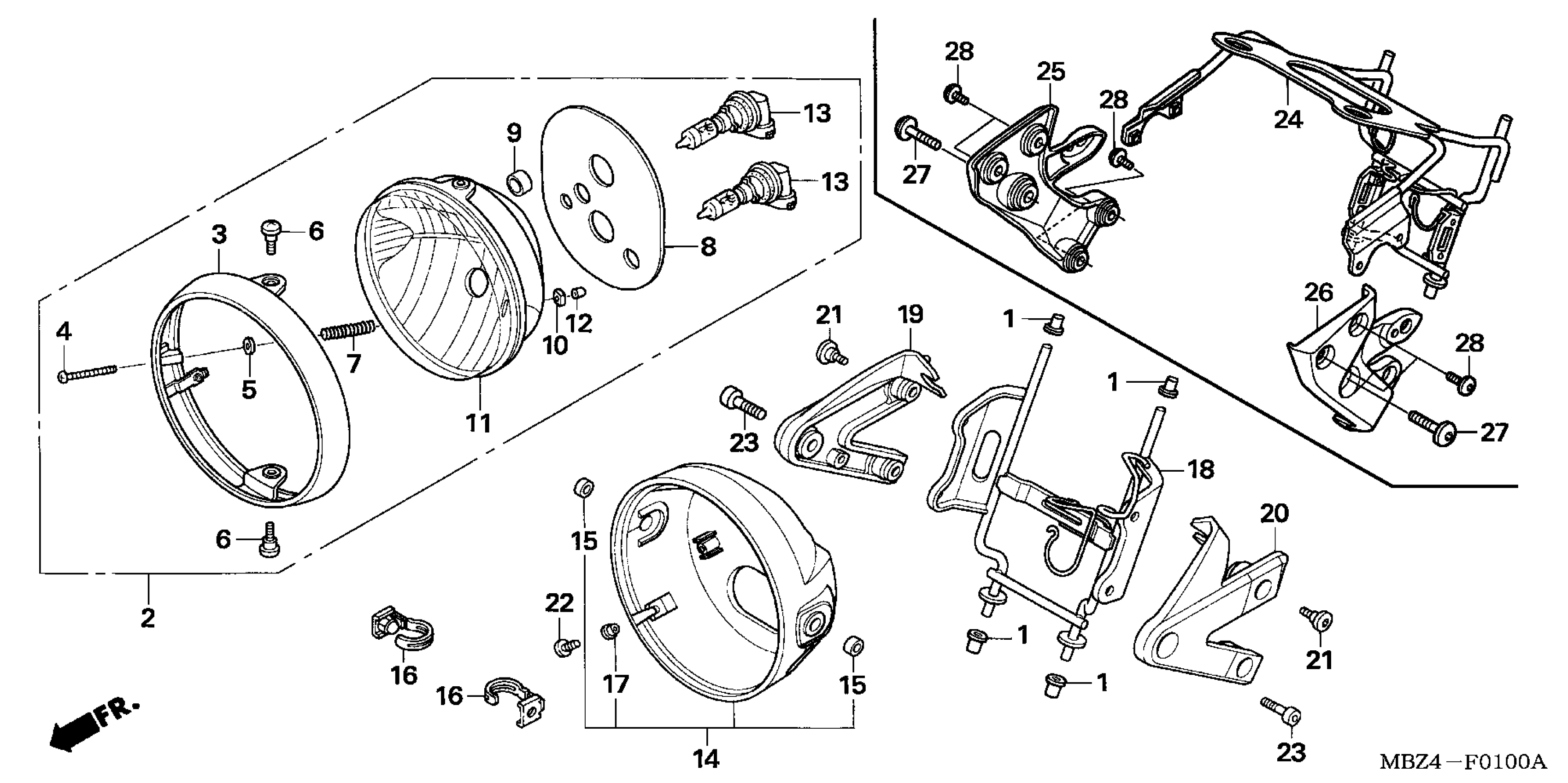

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 HEADLIGHT Diagram

RUBBER, RADIATOR MOUNTING

19051-MB2-000

$4.53

HEADLIGHT ASSY.

33100-MBZ-A11

Unavailable

RIM, HEADLIGHT

33101-MBZ-K31

Unavailable

SCREW, BEAM ADJUSTING

33103-MAH-671

$5.13

WASHER

33105-MAH-671

$1.84

SCREW

33106-MBZ-K31

$1.39

SPRING, BEAM ADJUST

33107-MCC-611

$4.13

RUBBER, HEADLIGHT

33112-MBZ-K31

Unavailable

PIPE, CP

33113-MBW-D21

$2.64

NUT, BEAM ADJUSTING

33118-438-841

$2.23

HEADLIGHT UNIT

33120-MBZ-A11

Unavailable

COVER, SCREW

33136-426-830

$1.89

BULB (H11) (12V 55W) This part replaces 33165-S5A-003.

33165-SAA-003

$27.69

CASE, HEADLIGHT

61301-MBZ-K00

$50.49

COLLAR, HEADLIGHT CASE

61302-KE5-000

$3.10

NUT, HEADLIGHT CASE

61303-MCE-H50

$3.85

COLLAR, HEADLIGHT SETTING

61304-379-690

$11.00

SCREW, SPECIAL (5X12)

90114-KFK-000

$1.59

STAY, HEADLIGHT

61311-MBZ-C50

Unavailable

BRACKET, R. HEADLIGHT *NH109MS* (SHOT SILVER METALLIC SPECIAL)

61312-MBZ-C50ZA

Unavailable

BRACKET, L. HEADLIGHT *NH109MS* (SHOT SILVER METALLIC SPECIAL)

61313-MBZ-C50ZA

Unavailable

BOLT, SOCKET (8X25)

90103-MBZ-C50

$5.64

SCREW, PAN (6X14)

90118-MR1-000

$3.10
