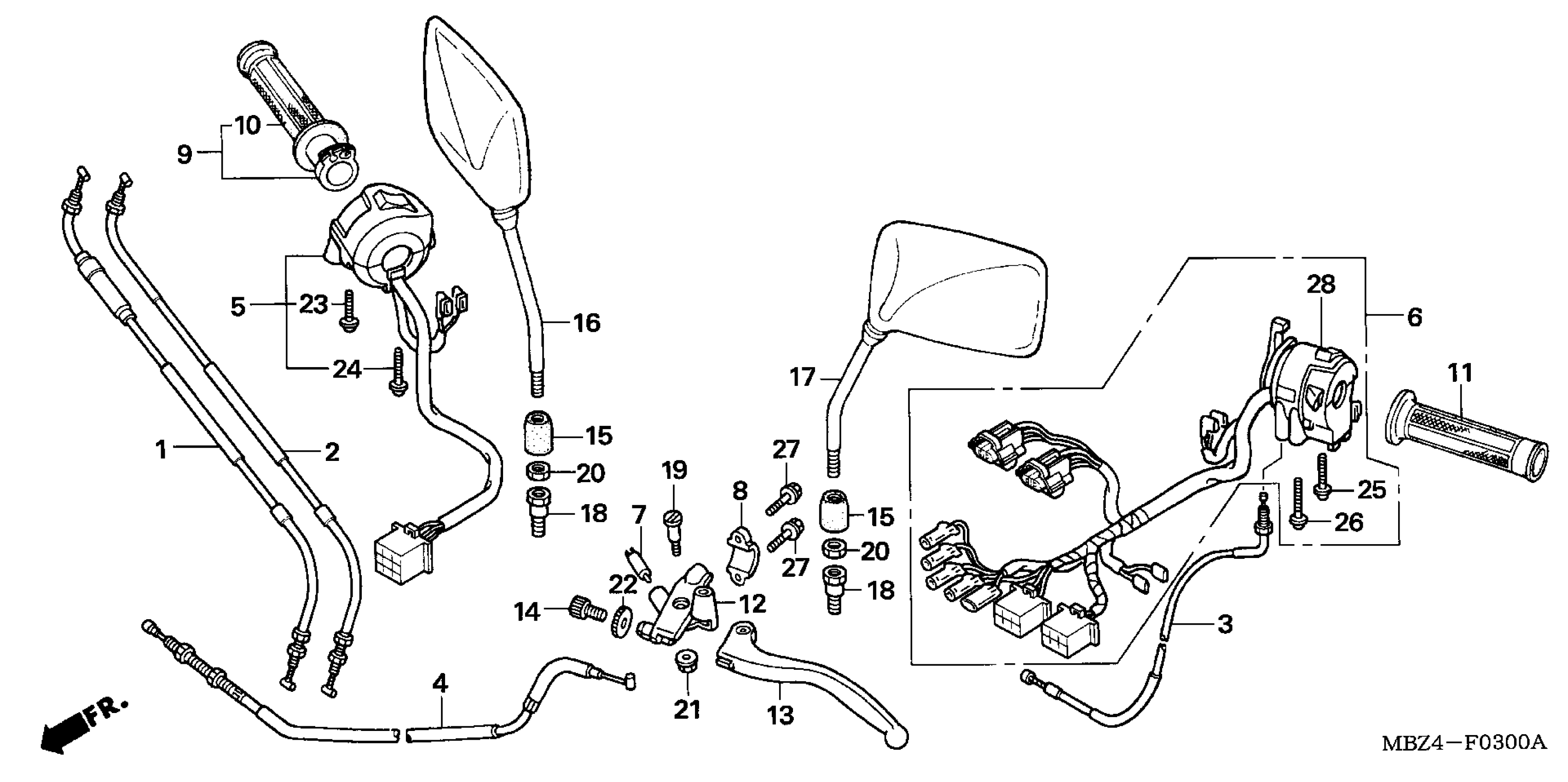

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 HANDLE LEVER + SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MBZ-C50

Unavailable

2

CABLE B, THROTTLE

17920-MBZ-K00

$40.26

3

CABLE, CHOKE

17950-MBZ-K00

$17.41

4

CABLE, CLUTCH

22870-MBZ-G00

$27.80

5

SWITCH SET, STARTER STOP This part replaces 35013-MBZ-K01.

35013-MBZ-K03

Unavailable

5

SWITCH SET, STARTER STOP This part replaces 35013-MBZ-K02.

35013-MBZ-K03

Unavailable

5

SWITCH SET, STARTER STOP

35013-MBZ-K03

Unavailable

7

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$19.67

8

HOLDER, MASTER CYLINDER

45517-MBL-610

Unavailable

8

HOLDER, MASTER CYLINDER This part replaces 45517-MBL-611.

45517-MBL-610

Unavailable

9

GRIP, R.

53140-KT8-710

$21.98

10

GRIP, R. HANDLE

53165-KT8-710

$7.83

11

GRIP, L. HANDLE

53166-KT8-710

$8.04

12

BRACKET, HANDLE LEVER This part replaces 53172-MY5-C60.

53172-MY5-C61

$14.64

12

BRACKET, HANDLE LEVER

53172-MY5-C61

$14.64

13

LEVER, L. HANDLE

53178-KV0-000

$16.46

13

LEVER, L. HANDLE This part replaces 53178-KV0-305.

53178-KV0-000

$16.46

14

BOLT, WIRE ADJUSTING

53192-MY5-730

$3.33

15

COVER, LOCK NUT

88113-KB4-620

Unavailable

16

MIRROR, R. BACK This part replaces 88210-MBZ-K00.

88210-MBZ-K01

$24.81

16

MIRROR, R. BACK

88210-MBZ-K01

$24.81

17

MIRROR, L. BACK This part replaces 88220-MBZ-K00.

88220-MBZ-K01

$24.81

17

MIRROR, L. BACK

88220-MBZ-K01

$24.81

18

BOLT, ADAPTER (10MM)

90003-MW3-620

$7.26

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

20

NUT, HEX. (10MM) (LEFT HAND THREAD)

90201-MW3-620

$4.09

21

NUT, LOCK

90201-MY5-730

$0.20

22

NUT, FIXING

90321-MY5-730

$3.33

23

SCREW-WASHER (5X20)

93892-05020-07

$0.78

24

SCREW-WASHER (5X25)

93892-05025-07

$0.99

25

SCREW-WASHER (5X35)

93892-05035-07

$0.99

26

SCREW-WASHER (5X45)

93892-05045-07

$1.17

27

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.30

28

SWITCH ASSY., TURN SIGNAL

35200-MBZ-A40

Unavailable
