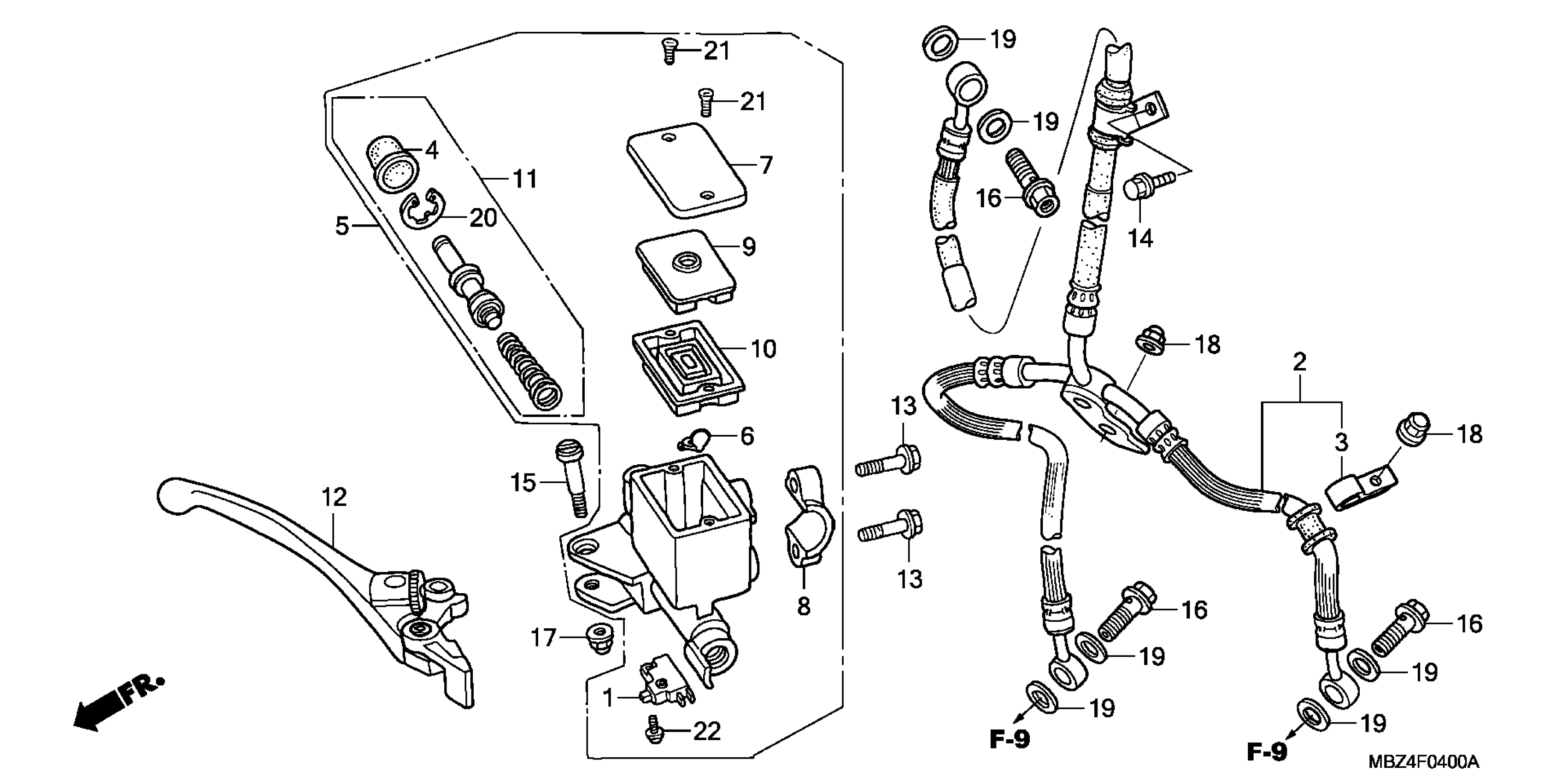

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

2

HOSE, FR. BRAKE

45125-MBZ-C52

Unavailable

3

CLAMP A, FR. BRAKE HOSE

45158-MEE-D00

$3.19

4

BOOT

45504-410-003

$11.17

5

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MW3-601

$217.19

6

PROTECTOR

45512-MA6-006

$4.09

7

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

8

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

9

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

10

DIAPHRAGM

45520-MM5-006

$13.87

11

MASTER CYLINDER SET

45530-471-831

$36.42

12

LEVER ASSY., R. HANDLE

53170-MBW-006

$40.03

13

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

14

BOLT, FLANGE (6X10)

90102-MW3-600

$1.28

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

16

BOLT, OIL (10X22)

90145-MS9-612

$6.99

17

NUT, CAP (6MM)

90201-415-000

Unavailable

18

NUT, CAP

90201-428-900

$2.06

19

WASHER, OIL BOLT

90545-300-000

$5.79

20

CIRCLIP

90651-MA5-671

$2.38

21

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

22

SCREW-WASHER (4X12)

93893-04012-07

$1.32

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32
