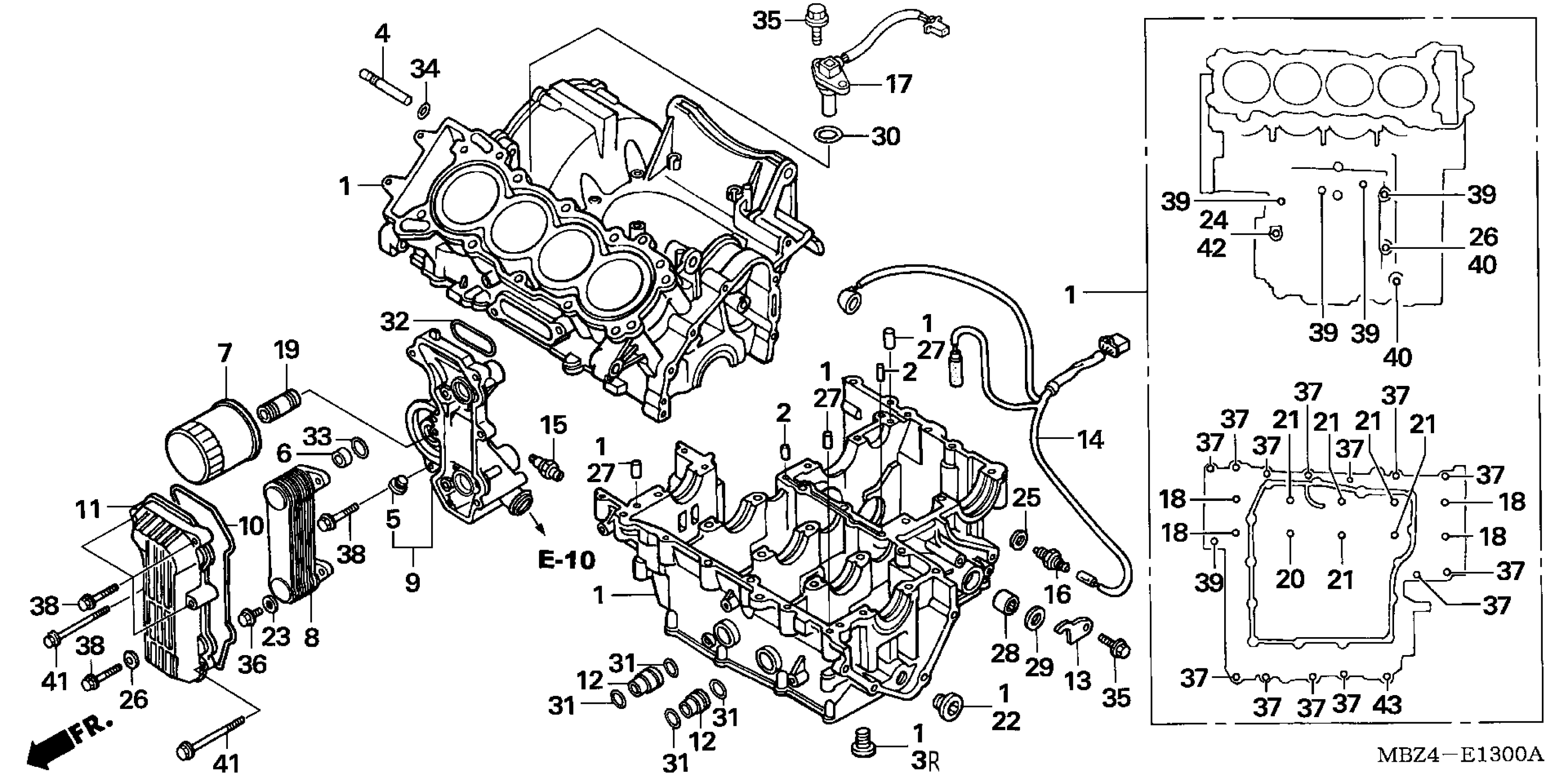

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Use up to Engine SN 2201394

11000-MBZ-C50

Unavailable

1

CRANKCASE SET | Use from Engine SN 2201395

11000-MBZ-C51

Unavailable

2

ORIFICE (1.2MM)

11104-MW0-000

$19.30

3

BOLT, SEALING

11106-657-320

$9.16

4

ORIFICE (2MM)

11208-MAL-600

Unavailable

5

BOLT, SEALING (18MM)

12206-ML8-300

$9.11

6

COLLAR, OIL PASSAGE (20MM)

15328-MV9-670

$4.15

7

FILTER, OIL (WAKO FILTER) This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

7

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

8

CORE, OIL COOLER

15600-MBZ-611

Unavailable

9

BODY, OIL COOLER

15610-MBZ-C50

$76.79

10

GASKET, OIL COOLER COVER

15615-MV9-670

$11.84

11

COVER, OIL COOLER

15621-MBZ-C50

$84.93

12

COLLAR, OIL COOLER

15622-MV9-670

Unavailable

13

PLATE, SPINDLE

24612-MAL-600

$9.75

14

SUB-WIRE, ENGINE

32101-MBZ-K00

$35.31

15

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

16

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

17

SENSOR ASSY., SPEED

37700-MCJ-003

$153.36

18

BOLT, UBS (8X100)

90004-MAL-A00

$7.82

19

BOSS, OIL FILTER

90019-MB0-000

$8.61

20

BOLT, UBS (8X88)

90024-MAL-A00

$7.48

21

BOLT, UBS (8X75)

90041-MAL-A00

$7.44

22

BOLT, SEALING (20MM)

90048-ME5-000

$15.56

23

WASHER, PLAIN (6.5X15)

90401-ZA0-000

$1.49

24

WASHER, SEALING (8MM)

90442-028-000

$1.77

25

WASHER, NEUTRAL

90443-MJ6-000

$1.92

26

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

27

PIN, DOWEL (10X16)

90701-MV9-670

$4.30

28

BEARING, NEEDLE (14X22X16)

91106-KM1-013

$19.13

29

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.81

30

O-RING (18.1X3.6)

91302-MAL-601

$3.53

31

O-RING (17.3X2.4)

91304-PS5-003

$3.21

32

O-RING (50X2.5)

91305-KK3-830

$5.05

33

O-RING (20.5X2.5)

91310-MER-D01

$2.34

34

O-RING (6X1.5) (N0K)

91315-PC9-004

$1.69

35

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

36

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

37

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

38

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

38

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

39

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

40

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

41

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

42

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

43

BOLT, FLANGE (10X75)

95701-10075-00

$2.44
