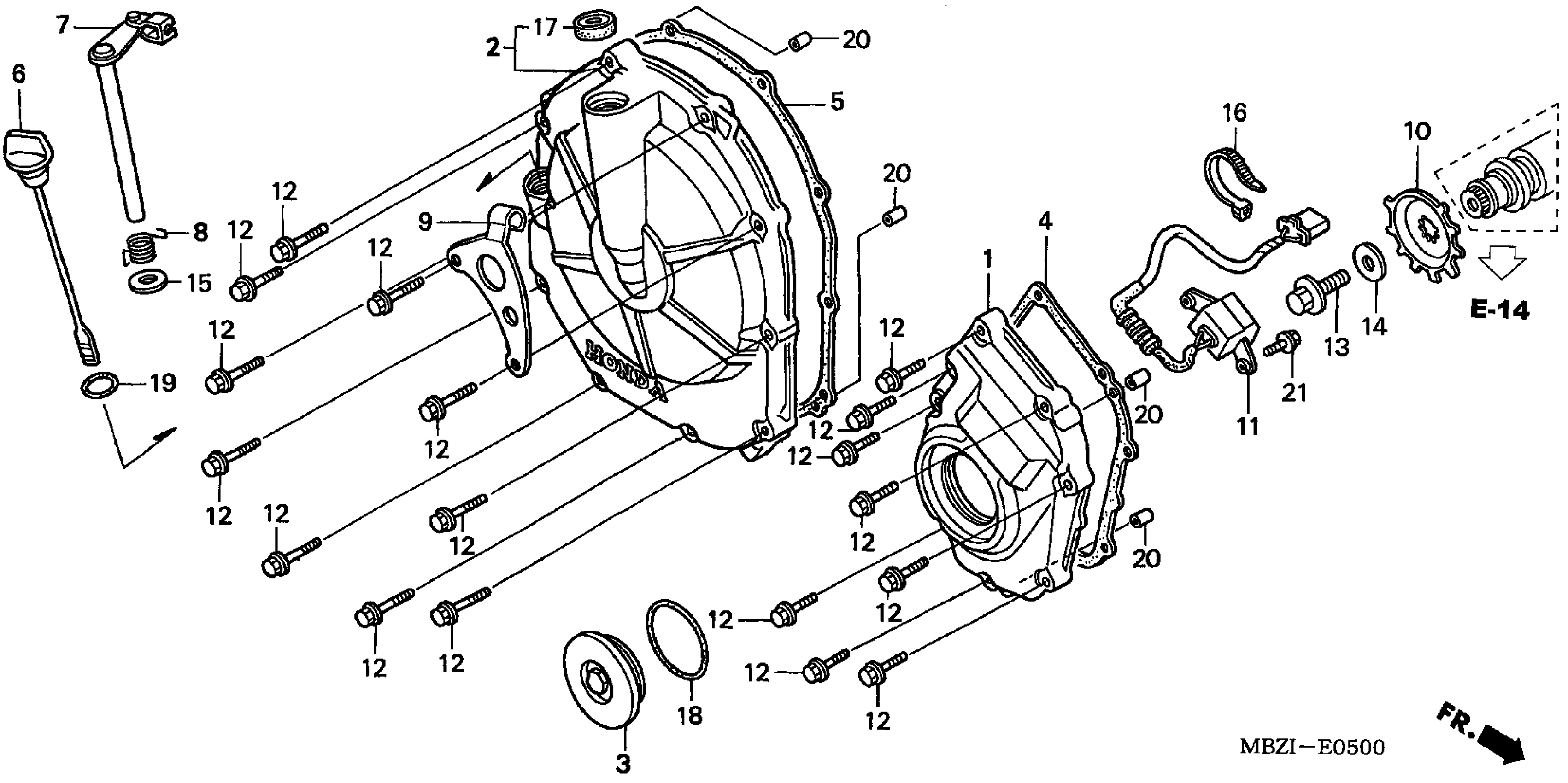

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 CLUTCH COVER Diagram

#

Description
Price

1

COVER, PULSER

11311-MBZ-C50

Unavailable

2

COVER, CLUTCH

11330-MBZ-C50

Unavailable

3

CAP (45MM)

11332-MBZ-C50

$18.00

4

GASKET, PULSER COVER

11391-MV9-670

$12.24

5

GASKET, CLUTCH COVER

11393-MV9-670

$20.34

6

DIPSTICK, OIL

15650-MBZ-610

$8.93

7

LEVER, CLUTCH

22810-MBZ-610

Unavailable

8

SPRING, CLUTCH LEVER

22815-MBZ-D00

Unavailable

9

RECEIVER, CLUTCH CABLE

22821-MBZ-610

$7.03

10

ROTOR, PULSE

30291-MV9-671

$13.88

11

GENERATOR ASSY., PULSE

30300-MBZ-611

Unavailable

12

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.86

13

BOLT, SPECIAL (10X25)

90013-430-000

$6.01

14

WASHER (10.5X27)

90405-MCA-780

$3.80

15

WASHER

90525-MBZ-610

$2.17

16

BAND, WIRE (95MM)

90650-KV6-003

$2.90

17

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.70

18

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.66

19

O-RING (18X3) (ARAI)

91302-KE8-003

$2.38

20

PIN, DOWEL (8X14)

94301-08140

$2.04

21

BOLT, FLANGE (6X14)

95701-06014-00

$0.91
