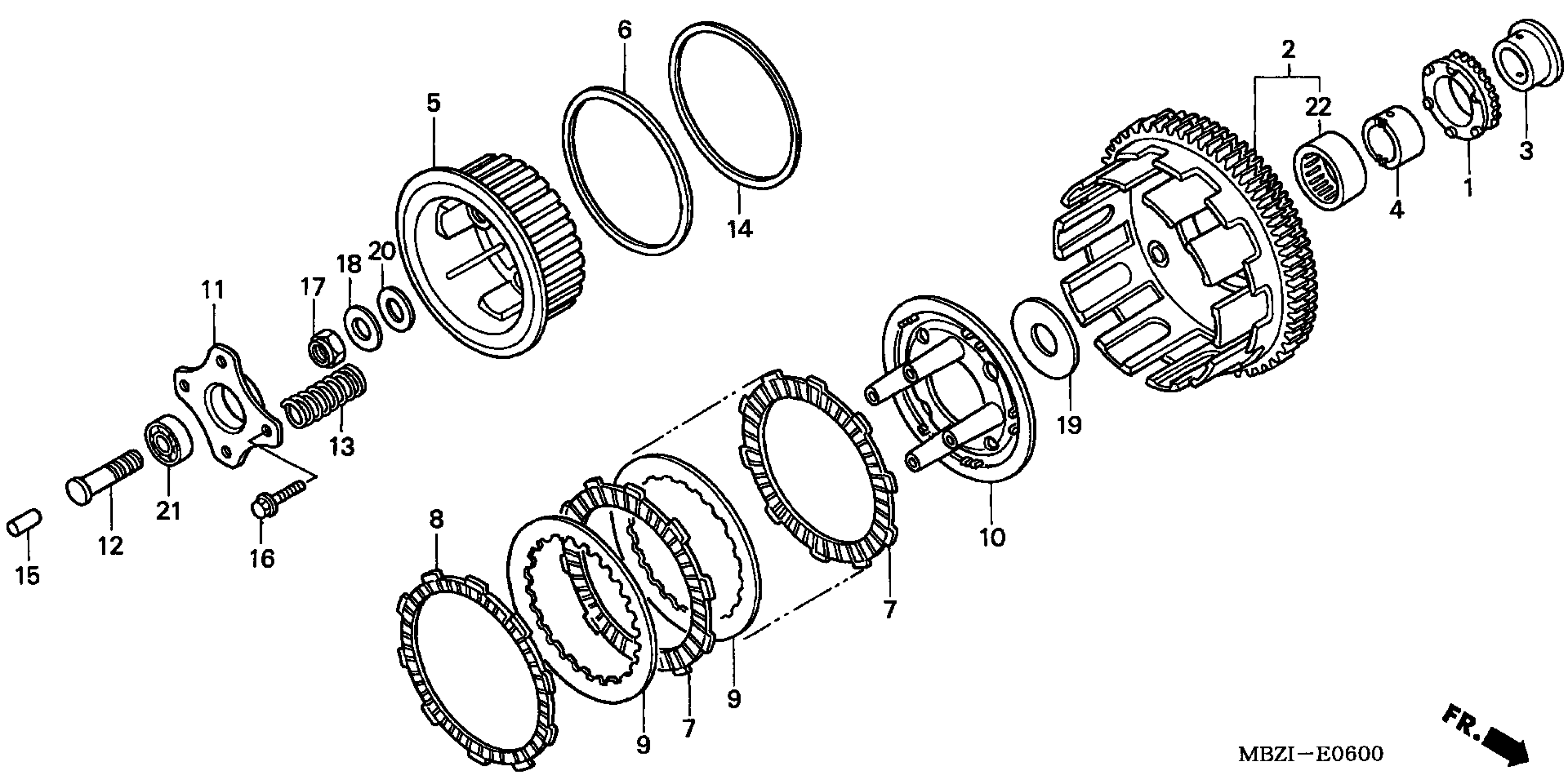

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T)

15131-MAL-A01

$55.26

2

CLUTCH (OUTER)

22100-MAL-600

Unavailable

3

COLLAR, OIL PUMP SPROCKET

22116-MV9-660

$26.77

4

GUIDE, CLUTCH (OUTER)

22117-MV9-670

Unavailable

5

CENTER, CLUTCH

22120-MAL-600

Unavailable

6

SEAT, JUDDER SPRING

22125-ML7-000

$10.67

7

DISK, CLUTCH FRICTION

22201-MAL-600

$17.72

8

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

9

PLATE, CLUTCH

22321-ML7-000

$14.02

9

PLATE, CLUTCH

22321-MR7-000

$16.43

10

PLATE, CLUTCH PRESSURE

22350-MV9-670

$74.59

11

PLATE, CLUTCH LIFTER

22361-MAL-600

Unavailable

12

ROD, CLUTCH LIFTER (B)

22366-MAL-600

Unavailable

13

SPRING, CLUTCH

22401-MV9-670

$6.41

14

SPRING, JUDDER

22402-ML7-000

$26.48

15

ROD A, CLUTCH LIFTER

22847-MV9-670

Unavailable

16

BOLT, FLANGE (6X28)

90003-MM9-000

$3.26

17

NUT, LOCK (20MM)

90241-KM9-000

$11.62

18

WASHER, LOCK

90432-121-000

$4.21

19

WASHER (22MM)

90457-MV9-670

Unavailable

20

WASHER, THRUST (20MM)

90454-428-000

$2.53

20

WASHER, THRUST (20X1.00) This part replaces 90554-700-000.

90454-428-000

$2.53

21

BEARING, RADIAL BALL (12X28X7) (NTN)

91001-KA4-003

$17.08

21

BEARING, RADIAL BALL (12X28X7) (NTN) This part replaces 91001-KA4-004.

91001-KA4-003

$17.08

22

BEARING, NEEDLE (35X42X23)

91026-MV9-671

$89.90
