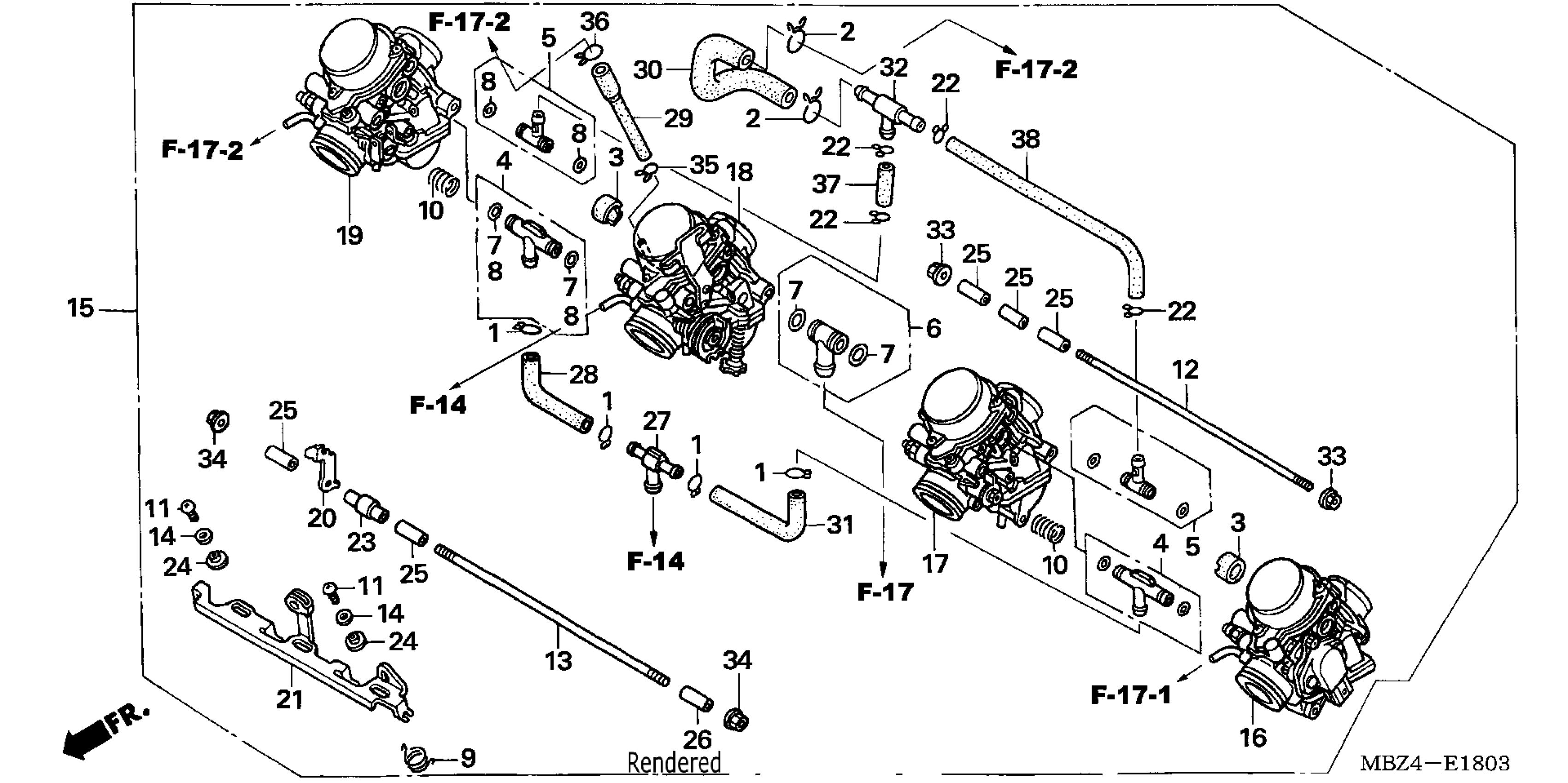

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 CARBURETOR (ASSY.) (AC) Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.80

2

CLIP, BREATHER TUBE

15772-551-000

$1.81

3

JOINT

16024-KAZ-000

$26.32

4

JOINT SET

16024-MZ2-E00

$27.98

5

JOINT SET

16026-MZ2-E00

$34.30

6

JOINT SET

16027-MAL-E00

$38.14

7

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$11.53

7

GASKET SET B

16040-MZ1-790

$11.53

8

GASKET SET B

16040-MZ1-790

$11.53

9

SPRING, TORSION COIL

16051-MZ5-670

Unavailable

10

SPRING, COMPRESSION COIL

16053-MA6-003

$8.26

11

SCREW, TRUSS (4X8)

16081-KAZ-000

$2.88

12

BOLT

16083-MAT-000

Unavailable

13

BOLT

16084-MER-D01

$11.45

14

WASHER, PLAIN

16085-MV4-000

$2.67

15

CARBURETOR ASSY. (VP49U A)

16100-MBZ-A41

Unavailable

16

CARBURETOR ASSY. 1

16101-MBZ-A41

Unavailable

17

CARBURETOR ASSY. 2

16102-MBZ-A41

$371.13

18

CARBURETOR ASSY. 3

16103-MBZ-A41

Unavailable

19

CARBURETOR ASSY. 4

16104-MBZ-A41

Unavailable

20

PLATE, BYSTARTER STAY

16119-MBZ-610

$6.38

21

LEVER, STARTER

16120-MER-D01

Unavailable

22

CLIP, TUBE

16163-GHB-610

$1.65

22

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.65

23

COLLAR

16172-MBZ-610

Unavailable

24

COLLAR

16175-MZ1-000

$12.27

25

PIN, DOWEL (7.9X20)

16178-MAS-600

$7.10

26

PIN, DOWEL (7.9X12.4)

16178-MBZ-K31

$3.12

27

T-JOINT

16180-MM5-601

$19.71

28

TUBE, FUEL

16195-MY9-000

$11.08

29

TUBE

16198-MBZ-K31

Unavailable

30

TUBE

16199-MBZ-K31

Unavailable

31

TUBE, FUEL

16199-MY9-000

Unavailable

32

T-JOINT

17193-MN5-000

$17.08

33

NUT, FLANGE (5MM)

94050-05000

$1.19

34

NUT, FLANGE (6MM)

94050-06000

$0.59

35

CLIP, TUBE (B8)

95002-02089

Unavailable

36

CLIP, TUBE (C9)

95002-50000

$1.14

37

BULK HOSE, VACUUM (7X1000) (7X25)

95005-70001-50M

$11.41

38

BULK HOSE, VACUUM (7X1000) (7X165)

95005-70001-50M

$11.41
