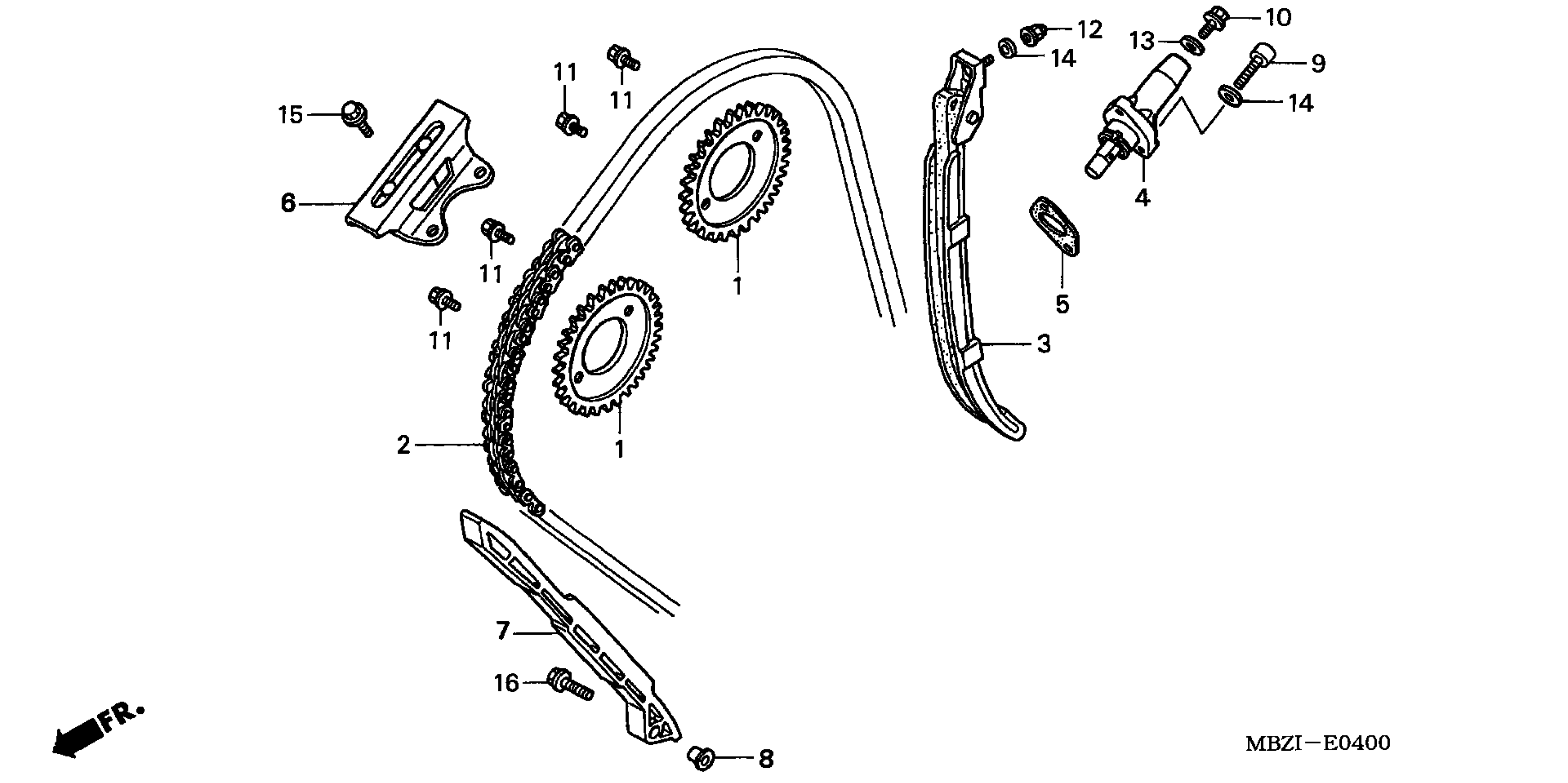

Honda CB600FA (06) 599, ITA, VIN# ZDCPC360-6F100001 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (34T)

14321-MBZ-G00

$51.67

CHAIN, CAM (116L) (BORG WARNER) This part replaces 14401-MAL-602.

14401-MEE-003

$76.02

CHAIN, CAM (116L) (BORG WARNER)

14401-MEE-003

$76.02

TENSIONER, CAM CHAIN

14510-MAL-601

$96.79

LIFTER ASSY., TENSIONER This part replaces 14520-MBZ-C50.

14520-MBZ-C51

$94.31

LIFTER ASSY., TENSIONER

14520-MBZ-C51

$94.31

GSKT, TENSIONER HOLE This part replaces 14523-MAL-A00.

14523-MAL-A02

$2.92

GSKT, TENSIONER HOLE This part replaces 14523-MAL-A01.

14523-MAL-A02

$2.92

GUIDE B, CAM CHAIN

14546-MAL-600

Unavailable

GUIDE, CAM CHAIN

14620-MV9-671

Unavailable

COLLAR (8MM)

14626-MV9-670

Unavailable

BOLT, SOCKET (6X25)

90003-MCZ-000

Unavailable

BOLT, FLANGE (6X10) (NSHF)

90004-GHB-600

$3.10

BOLT, FLANGE KNOCK (7X10.5)

90082-HA0-000

$1.97

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, SEALING (6MM)

90442-397-000

$2.28

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (8X32)

95801-08032-00

$2.07
