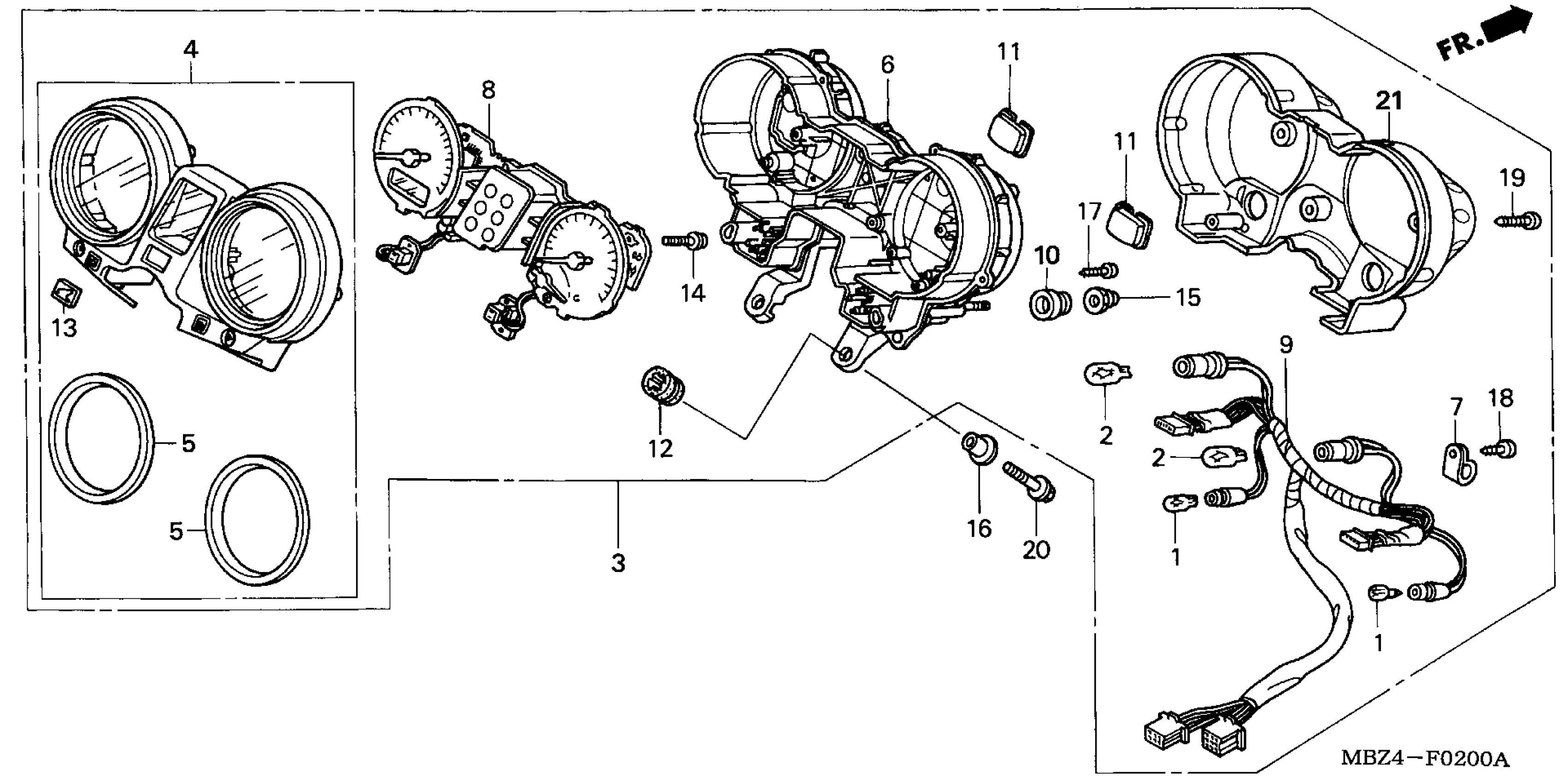

Honda CB600FA (04) 599, ITA, VIN# ZDCPC360-4F000001 TO ZDCPC360-4F099999 SPEEDOMETER (1) Diagram

BULB, WEDGE BASE (12V 1.7W)

34908-MG9-951

$2.33

BULB, WEDGE BASE (12V 1.7W H.D) (NIPPON SEIKI) This part replaces 34909-MCB-611.

34909-KW3-003

$3.31

METER ASSY., COMBINATION

37100-MBZ-A11

Unavailable

CASE ASSY. (UPPER)

37102-MCZ-003

Unavailable

RING, METER

37101-MCZ-300

Unavailable

CASE ASSY. (LOWER)

37103-MBZ-K00

Unavailable

CLAMP

37121-KV3-008

$4.36

SPEEDOMETER ASSY.

37200-MBZ-A10

Unavailable

SOCKET

37205-MBZ-A01

Unavailable

RUBBER, METER CUSHION

37215-MA6-008

$2.97

GROMMET

37218-GE1-741

$6.70

RUBBER, METER MOUNTING

37244-MB2-008

$6.87

EMBLEM, PRODUCT (MARUI) This part replaces 86150-GEZ-000.

86150-KPG-901

$3.62

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

SCREW-WASHER (3X18)

90101-MCE-003

$2.07

NUT, FLANGE CAP (6MM)

90201-ZM0-J20

$2.03

COLLAR (16X6.2X) (13.5)

90502-MCE-000

$3.08

SCREW, TAPPING (3X16)

93903-22420

$1.49

SCREW, TAPPING (4X12)

93903-24320

$1.49

SCREW, TAPPING (4X16)

93903-24480

$1.49

BOLT, FLANGE (6X28)

95701-06028-07

$1.49

OUTER, COVER

37130-MBZ-K01

Unavailable
