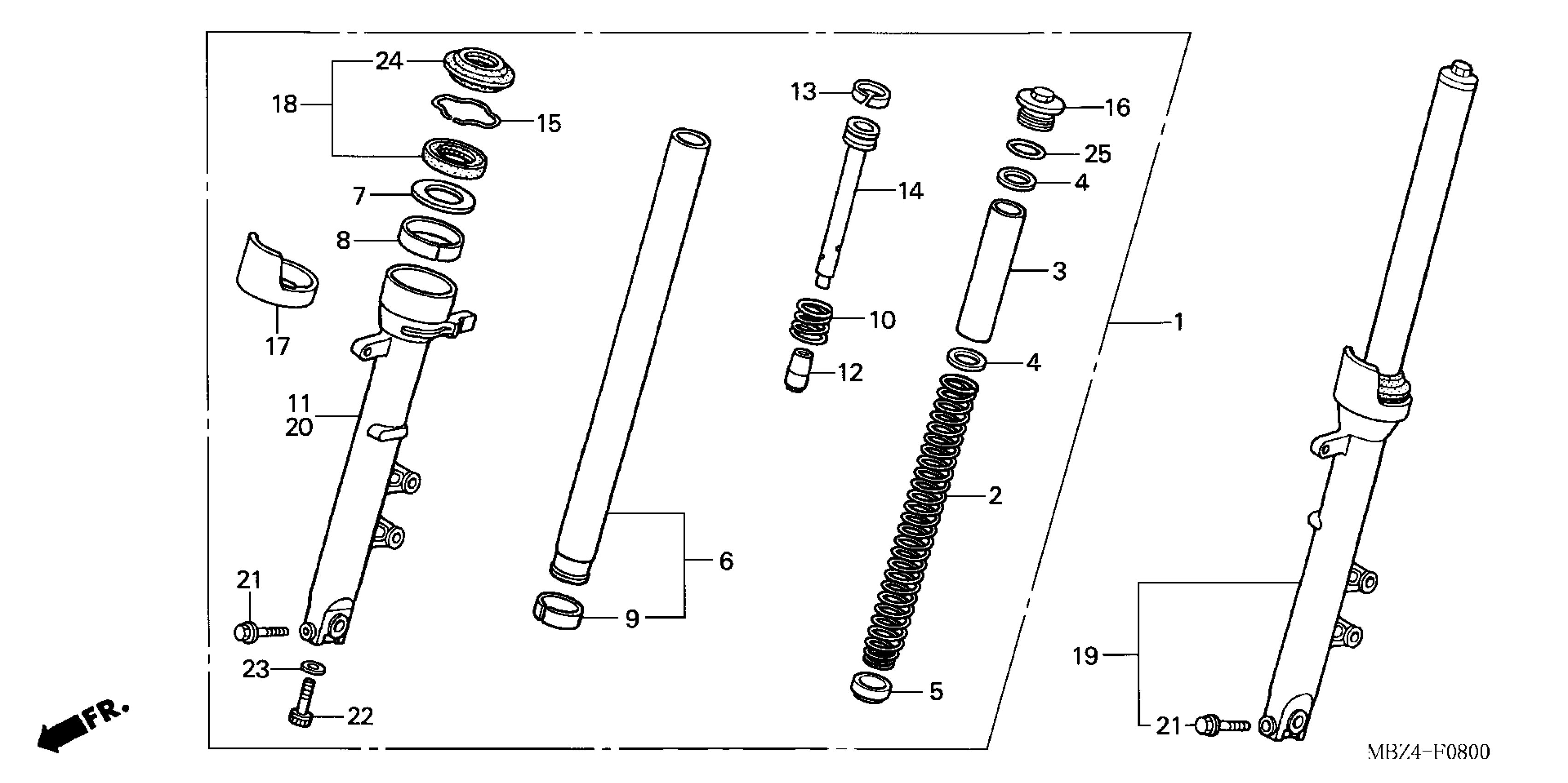

Honda CB600FA (04) 599, ITA, VIN# ZDCPC360-4F000001 TO ZDCPC360-4F099999 FRONT FORK (1) Diagram

#

Description
Price

1

FORK ASSY., R. FR. This part replaces 51400-MBZ-K31.

51400-MBZ-K32

$258.62

1

FORK ASSY., R. FR.

51400-MBZ-K32

$258.62

2

SPRING, FR. FORK

51401-MBZ-K31

$37.32

3

COLLAR, SPRING

51402-ML7-921

$24.38

4

SEAT, SPRING (SHOWA) This part replaces 51403-MBL-611.

51403-KF0-003

$4.58

5

COLLAR, SPRING

51404-MBZ-K01

$11.31

6

PIPE, FR. FORK

51410-MBZ-K31

Unavailable

7

RING, BACK-UP

51412-MBL-611

$5.46

8

BUSH, GUIDE (SHOWA)

51414-KCR-003

$12.86

9

BUSH, SLIDER (SHOWA)

51415-KCR-003

$11.27

10

SPRING, FR. REBOUND

51416-MBL-611

$5.91

11

CASE, R. (LOWER) This part replaces 51420-MBZ-K31.

51420-MBZ-K32

$146.43

11

CASE, R. (LOWER)

51420-MBZ-K32

$146.43

12

PIECE, OIL LOCK

51432-MBL-D01

$17.56

13

RING, PISTON

51437-KV3-701

$6.87

14

PIPE, SEAT

51440-MBZ-K31

$11.96

15

RING, OIL SEAL STOPPER (SHOWA) This part replaces 51447-MBL-611.

51447-KA4-711

$4.31

16

BOLT, FR. FORK This part replaces 51454-MBL-D01.

51454-MM9-671

$35.21

17

PROTECTOR, FORK PIPE

51460-MBZ-G01

$10.76

18

SEAL SET, FR. FORK

51490-MN8-305

$32.33

19

FORK ASSY., L. FR. This part replaces 51500-MBZ-K31.

51500-MBZ-K32

Unavailable

19

FORK ASSY., L. FR.

51500-MBZ-K32

Unavailable

20

CASE, L. (LOWER)

51520-MBZ-K31

$146.94

21

BOLT, FLANGE (8X45)

90109-MR7-000

$4.71

22

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

23

WASHER, SPECIAL (8MM)

90544-283-000

$2.65

24

DUST SEAL

91254-MM8-003

$16.42

25

O-RING (33.2X2.4)

91356-KF0-003

$3.59
