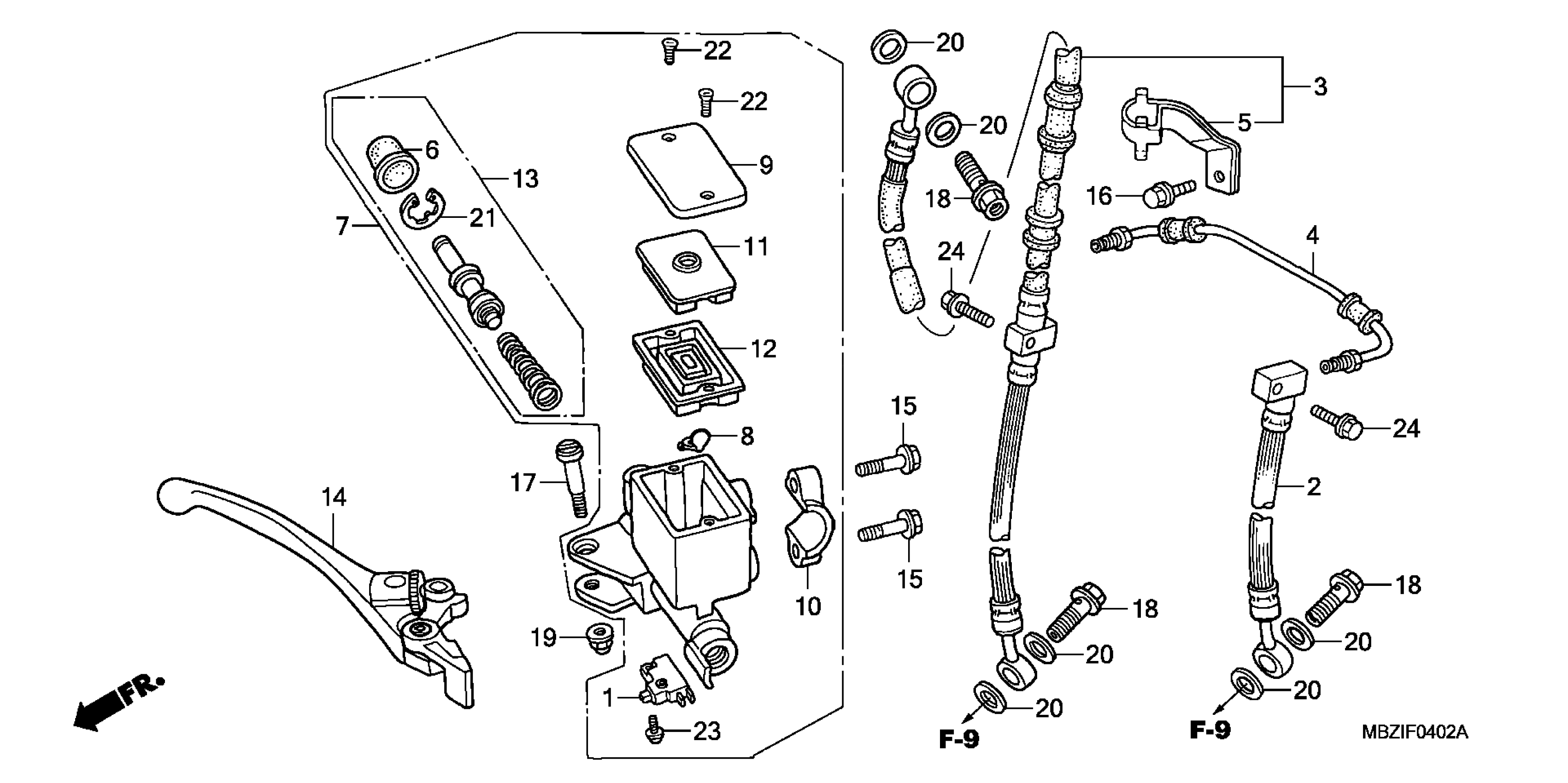

Honda CB600FA (04) 599, ITA, VIN# ZDCPC360-4F000001 TO ZDCPC360-4F099999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

HOSE, L. FR. BRAKE

45125-MBZ-G01

$49.04

HOSE, R. FR. BRAKE

45125-MBZ-K01

$109.38

PIPE, FR. BRAKE

45135-MBZ-D00

$22.31

CLAMP, FR. BRAKE HOSE

45158-MBZ-G00

Unavailable

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MW3-601

$217.19

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

DIAPHRAGM

45520-MM5-006

$13.87

MASTER CYLINDER SET

45530-471-831

$36.42

LEVER ASSY., R. HANDLE

53170-MBW-006

$40.03

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

BOLT, FLANGE (6X10)

90102-MW3-600

$1.28

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

BOLT, OIL (10X22)

90145-MS9-612

$6.99

NUT, CAP (6MM)

90201-415-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

BOLT, FLANGE (6X25)

95801-06025-07

$1.79
