Partiron

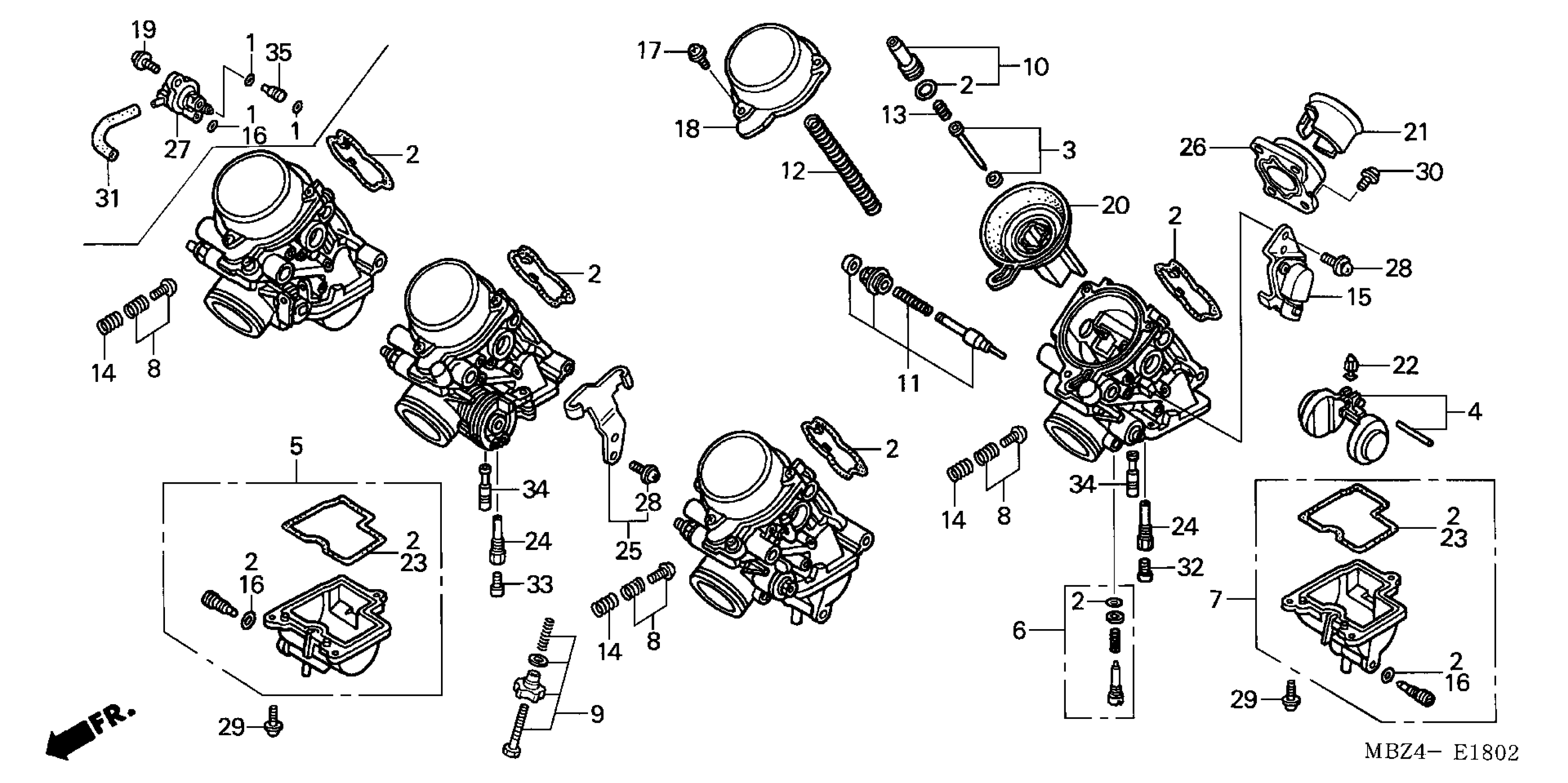

Honda CB600FA (04) 599, ITA, VIN# ZDCPC360-4F000001 TO ZDCPC360-4F099999 CARBURETOR (COMPONENT PARTS) (1) Diagram

#

Description
Price

1

GASKET SET C This part replaces 16010-HM7-670.

16041-MZ5-600

$16.19

2

GASKET SET A

16010-MZ5-920

$32.85

3

NEEDLE SET, JET

16012-MBZ-D01

Unavailable

4

FLOAT SET

16013-MBZ-610

$42.49

5

CHAMBER SET, FLOAT (#1) This part replaces 16015-MZ5-920.

16015-MZ2-E00

Unavailable

6

SCREW SET

16016-MAS-670

$22.48

6

SCREW SET This part replaces 16016-MV9-730.

16016-MAS-670

$22.48

7

CHAMBER SET, FLOAT (#3) This part replaces 16023-MAS-600.

16043-MZ2-E00

Unavailable

7

CHAMBER SET, FLOAT (#3)

16043-MZ2-E00

Unavailable

8

SCREW SET

16028-MZ2-E00

Unavailable

9

SCREW SET

16029-MZ1-790

Unavailable

10

PLATE SET, VALVE

16037-MY5-850

Unavailable

10

PLATE SET, VALVE This part replaces 16037-MZ1-790.

16037-MY5-850

Unavailable

11

VALVE SET, STARTER

16046-MBZ-610

Unavailable

12

SPRING, COMPRESSION COIL

16050-MBZ-A11

$9.78

13

SPRING, COMPRESSION COIL

16051-MV4-000

$17.87

14

SPRING, COMPRESSION COIL

16052-KG4-003

$5.42

15

SENSOR SET, THROTTLE

16060-MBZ-A11

$149.65

16

O-RING (1.3X4.3)

16075-GHB-640

$2.65

17

SCREW-WASHER

16080-MV4-000

$2.32

18

TOP

16107-MZ5-671

Unavailable

19

SCREW

16108-MW0-750

$2.29

20

PISTON, VACUUM

16111-MBZ-610

Unavailable

21

FUNNEL, AIR

16141-MBZ-610

Unavailable

22

VALVE, FLOAT

16155-MBZ-K31

$25.52

23

GASKET, FLOAT CHAMBER

16163-MZ5-920

$30.22

24

HOLDER, NEEDLE JET

16165-MBZ-B21

$12.07

24

HOLDER, NEEDLE JET This part replaces 16165-MBZ-610.

16165-MBZ-B21

$12.07

25

STAY, WIRE

16169-MZ2-600

Unavailable

26

PLATE, FUNNEL SETTING

16188-MZ1-000

$63.46

27

VALVE ASSY., AIR CUT

16510-MBT-621

$118.86

28

SCREW-WASHER (5X10)

93892-05010-00

$0.46

28

SCREW-WASHER (5X10) This part replaces 93892-05010-10.

93892-05010-00

$0.46

29

SCREW-WASHER (5X16)

93892-05016-00

$0.58

29

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$0.58

30

SCREW-WASHER (4X14)

93893-04014-07

$0.93

30

SCREW-WASHER (4X14) This part replaces 93893-04014-17.

93893-04014-07

$0.93

31

BULK HOSE, VACUUM (3.5X1000) (3.5X60)

95005-35001-20M

$8.69

32

JET, MAIN (#108) This part replaces 99101-GHB-1080.

99101-MAZ-1080

$8.02

32

JET, MAIN (#108) This part replaces 99101-393-1080.

99101-MAZ-1080

$8.02

33

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$8.19

33

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$8.19

34

JET, SLOW (#40)

99103-MT2-0400

$11.00

35

JET (#105)

99108-KEA-1050

$8.68
