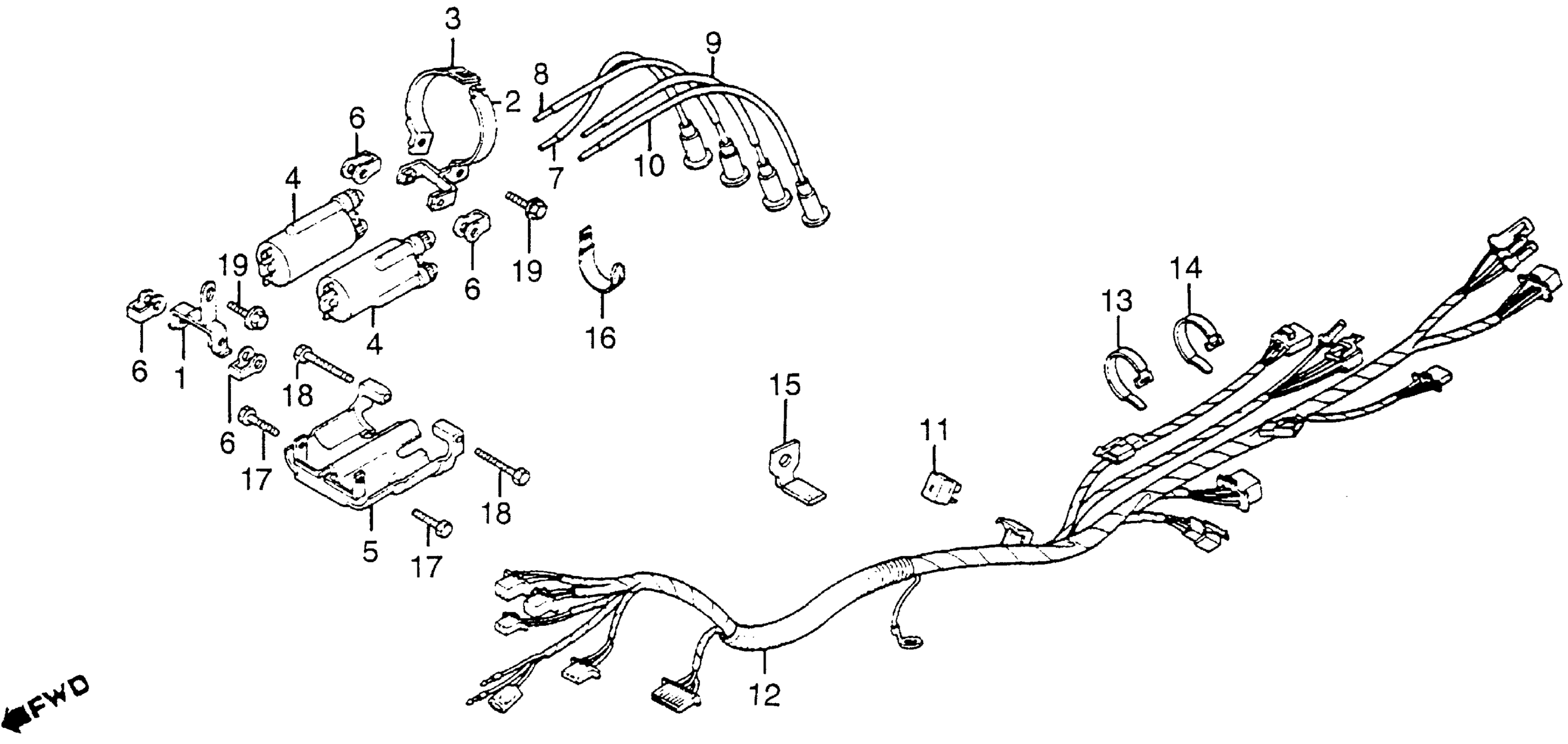

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 WIRE HARNESS + IGNITION COIL + RECTIFIER Diagram

#

Description
Price

1

BRACKET, FR. IGNITION COIL

30505-ME5-000

Unavailable

2

BRACKET, RR. IGNITION COIL

30506-ME4-000

Unavailable

3

BAND, R. IGNITION COIL STAY (NOT AVAILABLE)

30507-ME4-000

Unavailable

4

COIL, IGNITION This part replaces 30506-MA6-003.

30510-MA6-013

$168.34

4

COIL, IGNITION This part replaces 30510-MA6-003.

30510-MA6-013

$168.34

4

COIL, IGNITION

30510-MA6-013

$168.34

5

COVER, IGNITION COIL

30515-ME5-000

Unavailable

6

SPACER, IGNITION COIL

30520-MB0-000

Unavailable

7

CAP, SPARK PLUG WIRE (1-1) (NOT AVAILABLE)

30751-ME4-000

Unavailable

8

CAP, SPARK PLUG WIRE (2-4) (NOT AVAILABLE)

30752-ME4-000

Unavailable

9

CAP, SPARK PLUG WIRE (3-2) (NOT AVAILABLE)

30753-ME4-000

Unavailable

10

CAP, SPARK PLUG WIRE (4-3) (NOT AVAILABLE)

30754-ME4-000

Unavailable

11

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

11

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

12

WIRE HARNESS (NOT AVAILABLE)

32100-ME4-000

Unavailable

13

BAND, CABLE

32161-399-000

Unavailable

14

BAND B1, CABLE

32161-404-000

$2.23

15

CLIP, WIRE HARNESS

32170-ME5-000

Unavailable

16

CLIP, WIRE

91406-ME5-000

Unavailable

17

BOLT, HEX. (6X25) This part replaces 92000-06025-4J.

92101-06025-4J

$1.49

17

BOLT, HEX. (6X25)

92101-06025-4J

$1.49

18

BOLT, HEX. (6X40) This part replaces 92000-06040-4J.

92101-06040-4J

Unavailable

18

BOLT, HEX. (6X40)

92101-06040-4J

Unavailable

19

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

19

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
