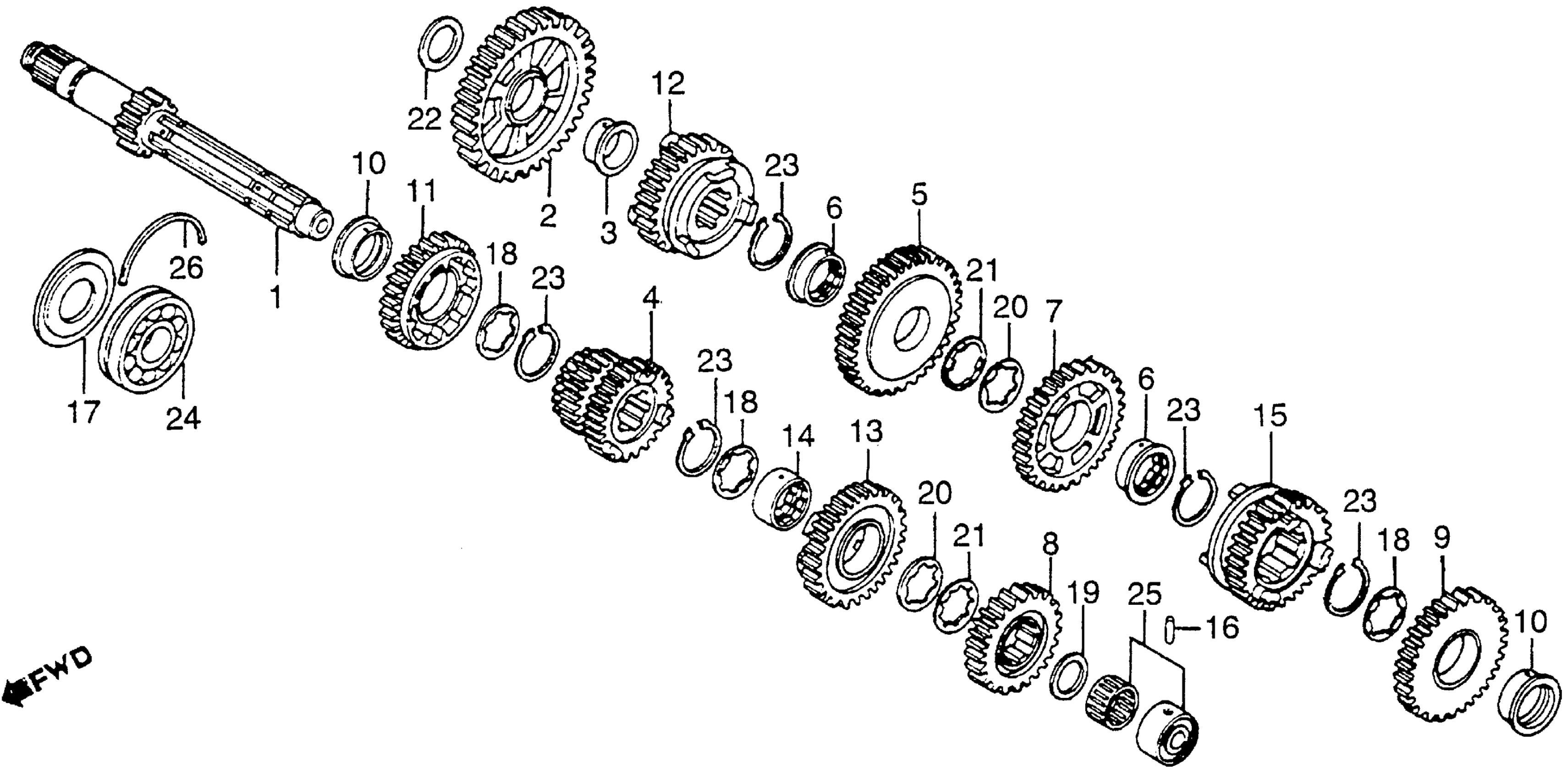

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION

23211-ME5-000

Unavailable

2

GEAR, COUNTERSHAFT LOW (36T)

23411-MA6-000

Unavailable

3

BUSH (20MM)

23412-MA6-000

Unavailable

4

GEAR, MAINSHAFT SECOND & THIRD (20T,21T) (NOT AVAILABLE)

23431-ME5-000

Unavailable

5

GEAR, COUNTERSHAFT SECOND (37T)

23441-ME5-000

Unavailable

6

COLLAR, SPLINE (25MM) This part replaces 23442-ME5-000.

23442-ME5-010

Unavailable

6

COLLAR, SPLINE (25MM)

23442-ME5-010

Unavailable

7

GEAR, COUNTERSHAFT THIRD (30T)

23451-ME5-000

Unavailable

8

GEAR, MAINSHAFT FOURTH (26T)

23461-ME5-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (30T) (NOT AVAILABLE)

23471-ME5-000

Unavailable

10

BUSH (25X9.5)

23472-ME5-000

Unavailable

11

GEAR, MAINSHAFT FIFTH (29T) (NOT AVAILABLE)

23481-ME5-000

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (28T) | Use up to Engine SN 2000455

23491-ME5-000

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (28T) | Use from Engine SN 2000456

23491-ME5-010

Unavailable

13

GEAR, MAINSHAFT SIXTH (28T) (NOT AVAILABLE)

23501-ME5-000

Unavailable

14

COLLAR, SPLINE (25MM)

23505-ME5-000

Unavailable

15

GEAR, COUNTERSHAFT SIXTH (23T) (NOT AVAILABLE)

23511-ME5-000

Unavailable

16

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

17

WASHER, THRUST (25MM)

90433-ME5-000

Unavailable

18

WASHER, THRUST (25MM)

90451-MB2-000

Unavailable

18

WASHER, THRUST (25MM) This part replaces 90451-371-000.

90451-MB2-000

Unavailable

19

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

20

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

21

WASHER, LOCK (25MM)

90462-323-000

$3.77

22

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

22

WASHER, THRUST (20X0.8) This part replaces 90468-MB0-770.

90468-ME5-000

Unavailable

22

WASHER, THRUST (20X0.8)

90468-ME5-000

Unavailable

22

WASHER, THRUST (20X0.9) This part replaces 90469-MB0-770.

90469-ME5-000

$4.80

22

WASHER, THRUST (20X0.9)

90469-ME5-000

$4.80

23

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

24

BEARING This part replaces 91002-300-004.

91003-612-004

Unavailable

24

BEARING This part replaces 91002-300-008.

91003-612-004

Unavailable

25

BEARING, NEEDLE (20MM) (TOYO)

91022-ME5-008

Unavailable

26

SET-RING (520)

95015-25200

Unavailable
