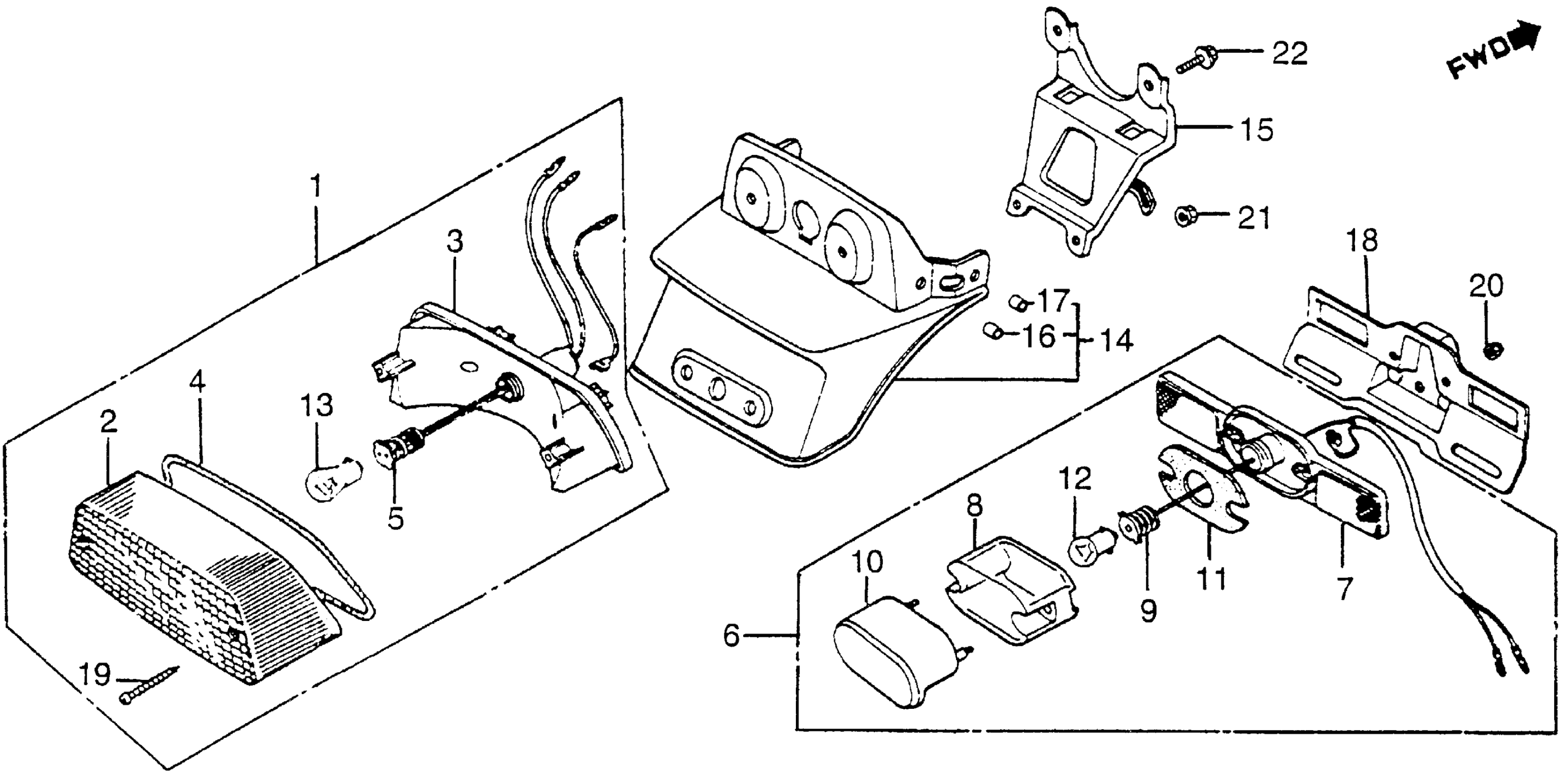

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT

33701-ME4-671

Unavailable

2

LENS, TAILLIGHT

33702-ME4-671

Unavailable

3

BASE, TAILLIGHT

33703-ME4-671

Unavailable

4

GASKET, LENS (NOT AVAILABLE)

33705-ME4-670

Unavailable

5

CABLE, TAILLIGHT

33708-ME4-671

Unavailable

6

LIGHT ASSY., LICENSE (NOT AVAILABLE)

33720-ME4-671

Unavailable

7

BASE

33721-ME4-671

Unavailable

8

LENS, LICENSE LIGHT This part replaces 33722-MB1-003.

33722-MB1-013

$19.68

8

LENS, LICENSE

33722-MB1-013

$19.68

9

WIRE, LICENSE LIGHT

33725-ME4-670

Unavailable

10

COVER, LICENSE LIGHT

33727-ME4-671

$27.26

11

GASKET, LENS

33729-MB1-003

$6.30

12

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

12

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

12

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

12

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

12

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

13

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

13

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

14

FENDER A, RR. (NOT AVAILABLE)

80100-ME4-000

Unavailable

15

BRACKET, LICENSE PLATE

80105-ME4-000

Unavailable

16

COLLAR B, RR. FENDER

80108-MA6-000

Unavailable

17

COLLAR, RR. FENDER

80108-ME4-000

$2.70

18

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-ME4-000

Unavailable

19

SCREW, TAPPING (4X30)

93901-34710

$1.49

20

NUT, CAP (6MM)

94021-06070-0S

$1.62

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
