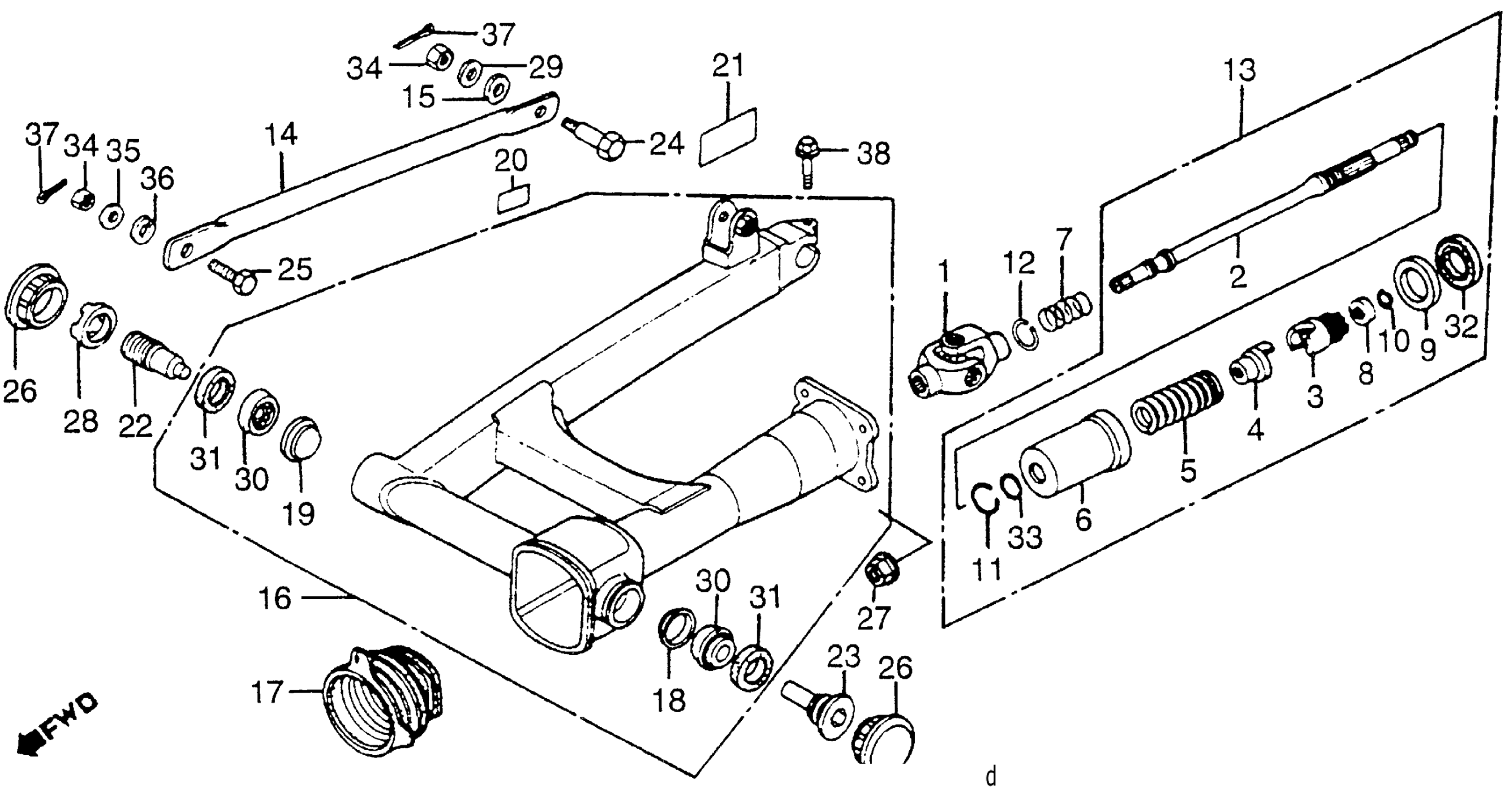

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 SWINGARM + DRIVE SHAFT Diagram

#

Description
Price

NI

CIRCLIP

40219-ME5-000

Unavailable

NI

STOPPER, DRIVESHAFT SPRING

40222-ME5-000

Unavailable

1

JOINT, YOKE (NOT AVAILABLE) This part replaces 40200-ME5-000.

40200-ME5-010

Unavailable

2

SHAFT, DRIVE This part replaces 40201-ME4-300.

40201-ME4-310

Unavailable

2

SHAFT, DRIVE

40201-ME4-310

Unavailable

3

CAM, DAMPER (NOT AVAILABLE)

40211-ME4-000

Unavailable

4

LIFTER, DAMPER

40212-ME5-000

Unavailable

5

SPRING, DAMPER CAM

40213-ME5-000

Unavailable

6

COVER, DAMPER

40214-ME4-000

Unavailable

7

SPRING, DRIVESHAFT

40215-ME5-000

Unavailable

8

RING, STOPPER This part replaces 40216-ME5-000.

40216-ME5-020

Unavailable

8

RING, STOPPER This part replaces 40216-ME5-010.

40216-ME5-020

Unavailable

8

RING, STOPPER

40216-ME5-020

Unavailable

9

GUIDE, OIL SEAL (NOT AVAILABLE)

40217-ME4-000

Unavailable

10

RING, SPRING STOPPER

40218-ME5-000

Unavailable

11

RING, DAMPER COVER

40220-ME5-000

Unavailable

12

RING, STOPPER

40221-ME4-000

$4.53

13

SHAFT ASSY., DRIVE

40250-ME4-000

Unavailable

14

ARM, RR. BRAKE STOPPER This part replaces 43431-415-000.

43431-415-010

Unavailable

14

ARM, RR. BRAKE STOPPER

43431-415-010

Unavailable

15

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

16

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-ME4-000ZA

Unavailable

17

BOOT, JOINT (NOT AVAILABLE)

52105-ME5-000

Unavailable

18

PLATE, DUST SEAL

52118-ME5-004

Unavailable

19

PLATE, DUST SEAL

52118-415-000

Unavailable

20

LABEL, MUFFLER CAUTION

87504-463-670

Unavailable

21

LABEL, TIRE CAUTION

87505-ME4-670

Unavailable

22

BOLT, R. RR. SWINGARM PIVOT

90121-ME5-000

Unavailable

23

BOLT, L. RR. SHOCK PIVOT

90124-ME5-000

Unavailable

24

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

25

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

26

CAP, R. LOCK NUT

90302-ME5-000

$19.37

27

NUT, HEX. (8MM)

90308-ME4-000

Unavailable

28

NUT, LOCK (23MM)

90354-ME5-000

Unavailable

29

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

29

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

30

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-003.

91066-415-006

Unavailable

30

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-004.

91066-415-006

Unavailable

30

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-005.

91066-415-006

Unavailable

30

BEARING (30202) (NIPPON SEIKO)

91066-415-006

Unavailable

31

OIL SEAL (20X35X5)

91266-ME5-003

Unavailable

31

OIL SEAL (20X35X5) This part replaces 91266-ME5-004.

91266-ME5-003

Unavailable

32

OIL SEAL (43X52X7)

91271-ME4-003

$7.03

32

OIL SEAL (43X52X7) This part replaces 91271-ME4-004.

91271-ME4-003

$7.03

33

O-RING (18X1.9)

91361-ME5-003

$3.76

33

O-RING (18X1.9) This part replaces 91361-ME5-004.

91361-ME5-003

$3.76

34

NUT, HEX. (8MM)

94001-08000-0S

$1.49

35

WASHER, PLAIN (8MM)

94101-08000

$1.49

36

WASHER, SPRING (8MM)

94111-10000

$1.49

37

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

37

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

37

PIN, COTTER (2.0X22)

94201-20220

$1.49

37

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

37

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

37

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

37

PIN, COTTER (2.0X35)

94201-20350

$1.49

37

PIN, COTTER (2.0X22)

94201-29220

$1.49

38

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

38

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
