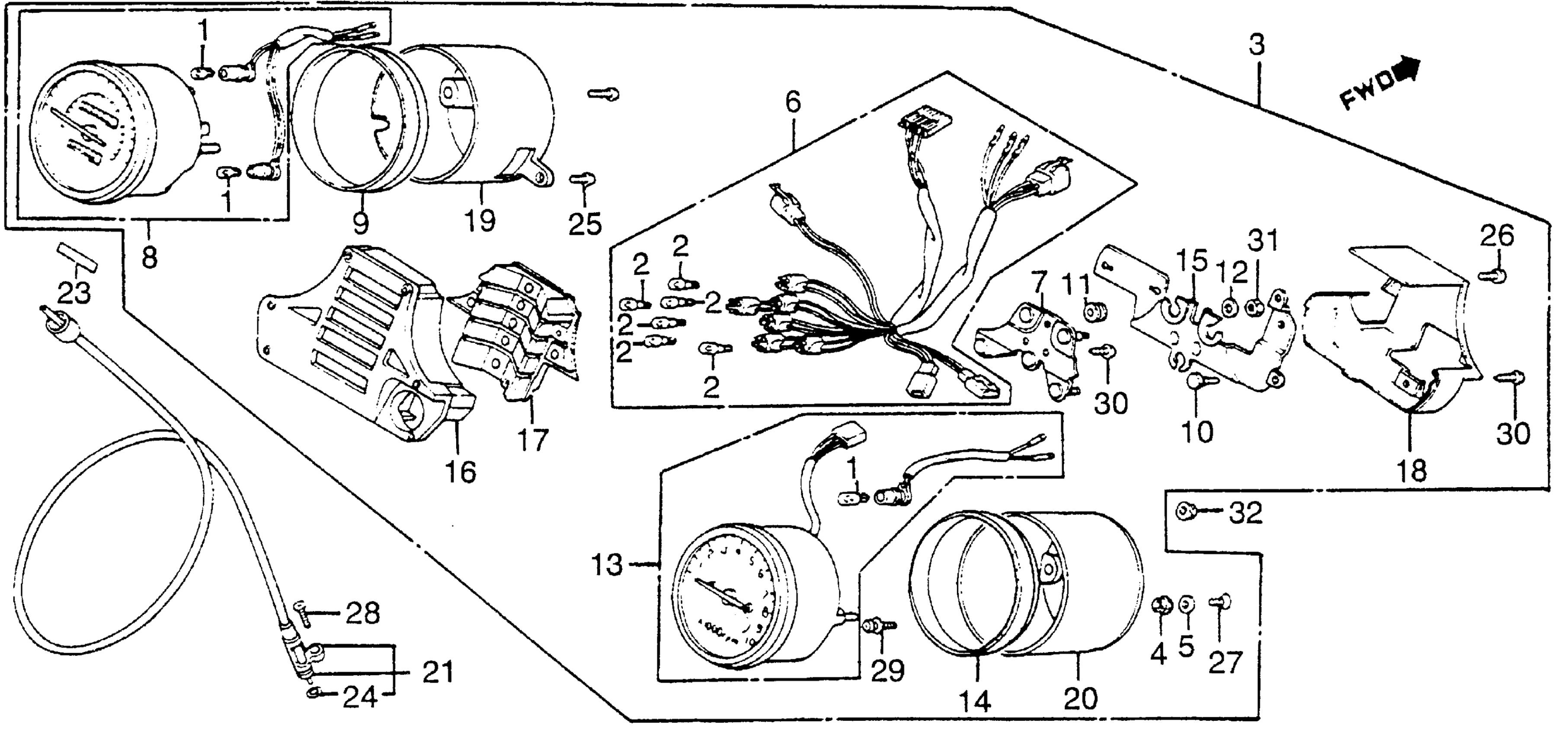

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

3

INSTRUMENT ASSY., COMBINATION (NOT AVAILABLE)

37100-ME4-671

Unavailable

4

RUBBER, METER SETTING

37101-MB1-008

$2.92

5

WASHER

37102-MB1-008

$2.92

6

SOCKET

37105-ME4-671

Unavailable

7

BRACKET, INSTRUMENT

37120-ME4-671

Unavailable

8

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-ME4-671

Unavailable

9

RUBBER, SPEEDOMETER

37204-MB1-008

Unavailable

10

STOPPER, INSTRUMENT BRACKET (NOT AVAILABLE)

37214-443-760

Unavailable

11

RUBBER, SETTING

37215-ME4-671

Unavailable

12

WASHER, PLAIN

37244-MA6-008

$2.15

13

TACHOMETER ASSY. (NOT AVAILABLE)

37250-ME4-671

Unavailable

14

RUBBER, TACHOMETER

37254-MB1-008

Unavailable

15

STAY, INSTRUMENT SETTING

37270-ME4-671

Unavailable

16

CASE, PILOT (UPPER)

37610-ME4-671

Unavailable

17

CASE, PILOT (LOWER)

37615-ME4-671

Unavailable

18

COVER

37618-ME4-671

Unavailable

19

COVER, SPEEDOMETER

37620-ME4-671

Unavailable

20

COVER, TACHOMETER

37625-ME4-671

Unavailable

21

CABLE ASSY., SPEEDOMETER

44830-MC7-000

Unavailable

23

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-410-790

Unavailable

24

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

24

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

24

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

25

SCREW, PAN (4X6)

93500-04006-0A

$1.49

25

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

26

SCREW, PAN (4X8)

93500-04008-0G

$1.49

26

SCREW, PAN (4X8) This part replaces 93500-04008-1G.

93500-04008-0G

$1.49

27

SCREW, OVAL (4X8)

93700-04008-0B

$1.49

28

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

29

SCREW-WASHER (5X8)

93892-05008-08

$1.49

29

SCREW-WASHER (5X8) This part replaces 93892-05008-18.

93892-05008-08

$1.49

30

SCREW, TAPPING (4X16)

93903-24480

$1.49

31

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

31

NUT, HEX. (6MM)

94001-06200-0S

$1.49

31

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

32

NUT, FLANGE (8MM)

94050-08000

$1.49
