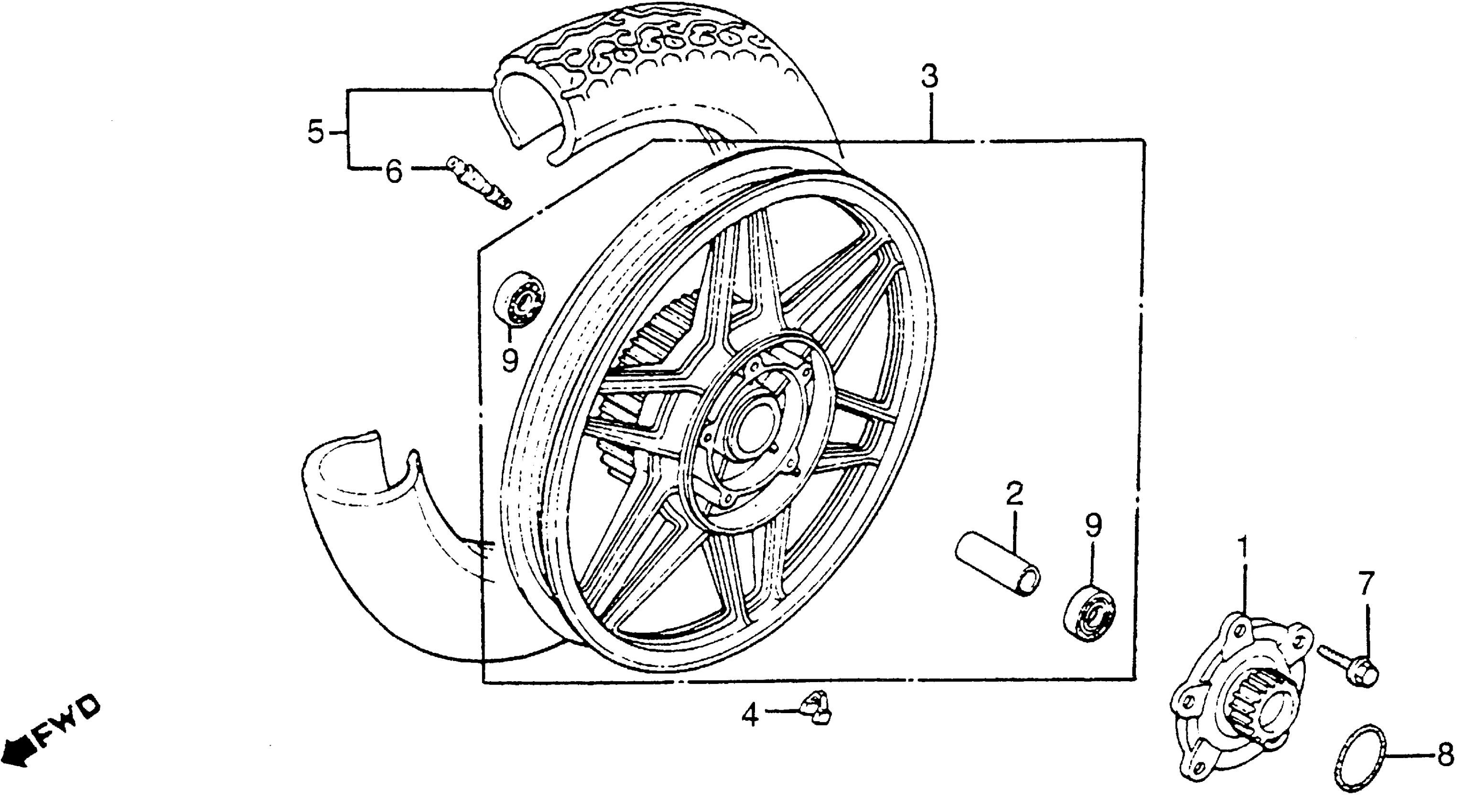

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 REAR WHEEL Diagram

#

Description
Price

1

FLANGE, FINAL DRIVEN

42610-ME4-000

Unavailable

2

COLLAR, AXLE DISTANCE

42620-ME4-000

Unavailable

3

WHEEL, RR.

42650-ME4-305

Unavailable

4

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

4

WEIGHT, BALANCE (10)

42704-MCF-D60

$12.74

4

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

4

WEIGHT, BALANCE (20)

42705-MCF-D60

$15.38

4

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

4

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

5

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP)

42710-ME2-672

Unavailable

5

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-671.

42710-ME2-672

Unavailable

5

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-672.

42710-ME2-672

Unavailable

5

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-673.

42710-ME2-672

Unavailable

6

VALVE, RIM (BS)

42753-GC7-821

Unavailable

6

VALVE, RIM This part replaces 42753-GC7-822.

42753-VM0-003

$10.30

6

VALVE, RIM This part replaces 42753-GC7-823.

42753-VM0-003

$10.30

6

VALVE, RIM

42753-VM0-003

$10.30

6

VALVE, RIM (BS)

42753-425-003

$11.00

7

BOLT, UBS (10X34) (NOT AVAILABLE)

90130-MC7-000

Unavailable

8

O-RING (41.7X3.5)

91351-740-003

$2.46

8

O-RING (41.7X3.5) This part replaces 91358-ME4-003.

91351-740-003

$2.46

8

O-RING (41.7X3.5) This part replaces 91358-ME4-004.

91351-740-003

$2.46

9

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

9

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
