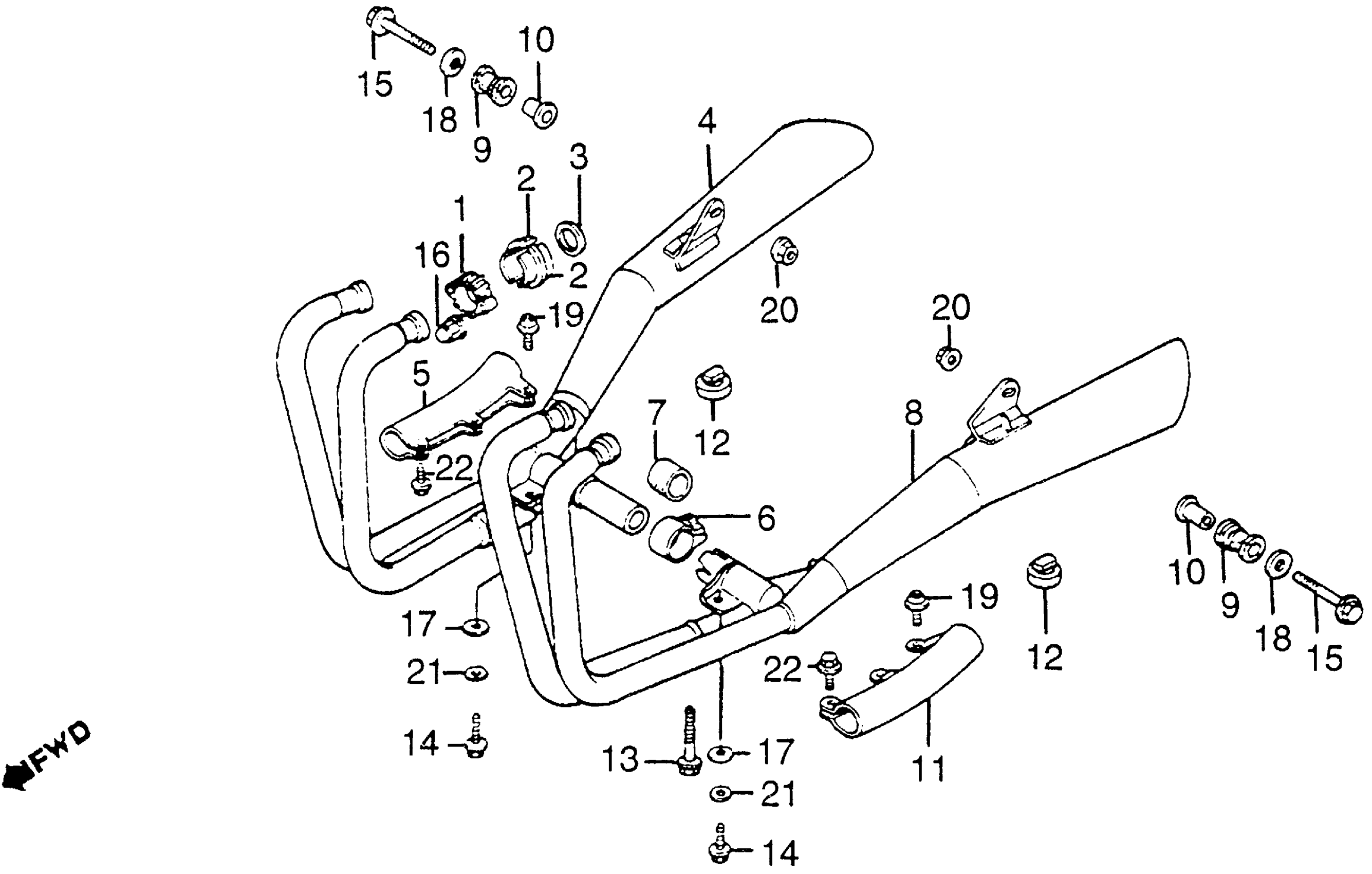

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-ME5-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-460-000

Unavailable

3

GASKET, EX. PIPE

18291-MN4-920

$5.31

3

GASKET, EX. PIPE This part replaces 18291-236-000.

18291-MN4-920

$5.31

4

MUFFLER, R. EX.

18300-ME4-003

Unavailable

5

PROTECTOR, R. JOINT (NOT AVAILABLE)

18375-ME5-003

Unavailable

6

BAND, R. RR. MUFFLER

18375-413-000

$40.08

7

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

7

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$13.66

8

MUFFLER, L. EX. (NOT AVAILABLE)

18400-ME4-003

Unavailable

9

RUBBER, MUFFLER SETTING

18421-MA6-000

$7.04

10

COLLAR, MUFFLER SETTING

18422-MA6-000

$7.91

11

PROTECTOR, L. JOINT

18425-ME5-003

Unavailable

12

RUBBER, STAND STOPPER

50524-MG9-000

$6.73

12

RUBBER, STAND STOPPER This part replaces 50524-422-000.

50524-MG9-000

$6.73

13

BOLT, FLANGE (8X37)

90118-471-000

$3.19

14

BOLT, UBS (8X50)

90155-ME5-000

Unavailable

15

BOLT, SPECIAL FLANGE (8X45)

90183-ME4-000

Unavailable

16

NUT, CAP (6MM)

90304-438-000

$7.14

17

WASHER, LOCK

90401-MA1-000

$6.05

18

WASHER (8.5X26)

90504-ME4-000

$3.26

19

SCREW-WASHER (6X10)

93893-06010-00

$1.49

20

NUT, FLANGE (8MM)

94050-08000

$1.49

21

WASHER, PLAIN (8MM)

94103-08000

$1.49

22

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

22

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
