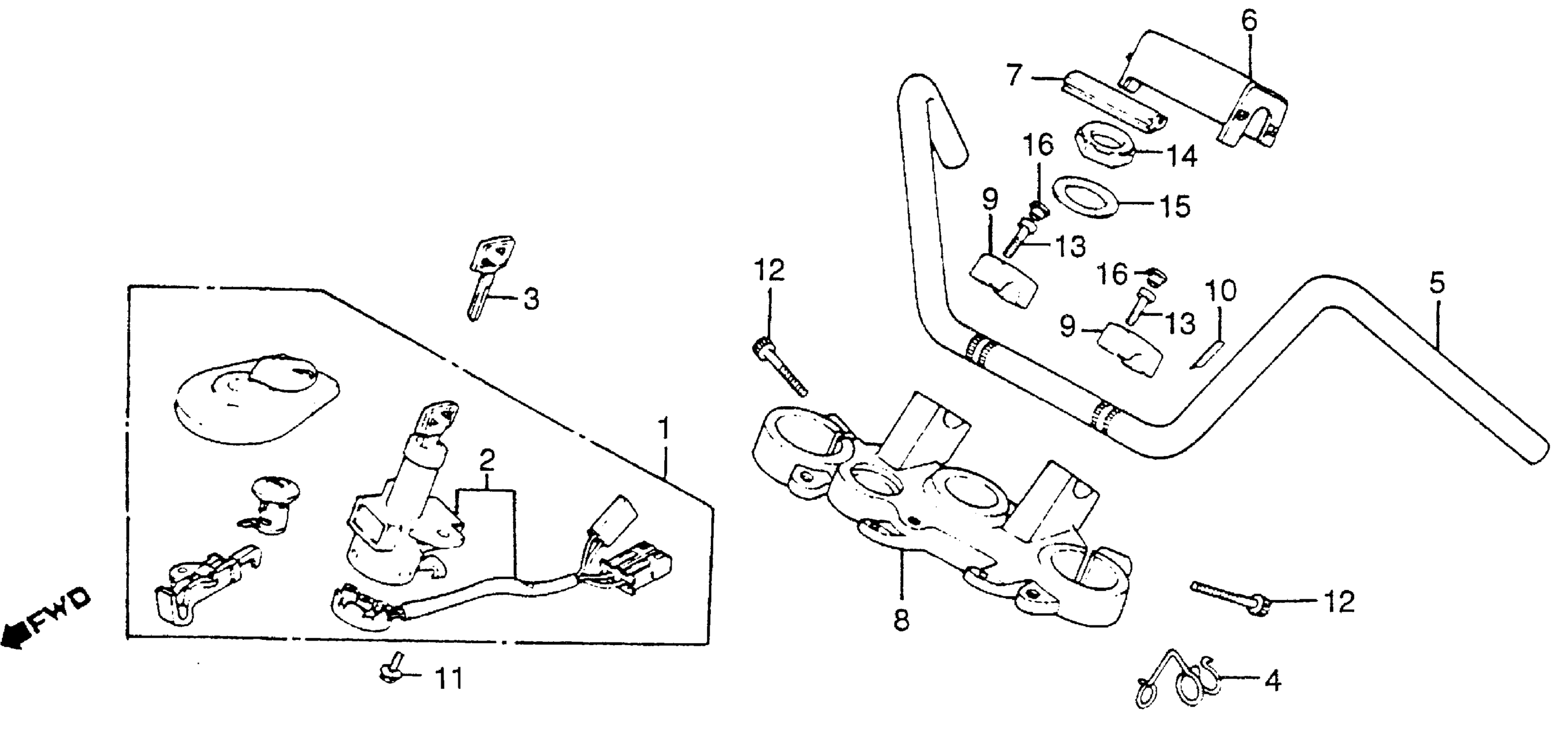

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 HANDLEBAR + TOP BRIDGE + KEY SET Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-ME4-000.

35010-ME4-020

Unavailable

1

LOCK SET (NOT AVAILABLE) This part replaces 35010-ME4-010.

35010-ME4-020

Unavailable

1

LOCK SET (NOT AVAILABLE)

35010-ME4-020

Unavailable

2

SWITCH ASSY., COMBINATION & LOCK

35100-ME5-007

Unavailable

3

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

3

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

3

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

3

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

4

CLIP, BRAKE HOSE

45417-ME4-000

Unavailable

5

HANDLEBAR (NOT AVAILABLE)

53100-ME4-000

Unavailable

6

COVER, HANDLEBAR

53105-ME5-000

Unavailable

7

RUBBER, HANDLEBAR COVER (NOT AVAILABLE)

53110-ME4-000

Unavailable

8

BRIDGE, FORK TOP

53230-ME4-000

Unavailable

9

HOLDER (UPPER)

53235-KR3-000

$21.67

9

HOLDER (UPPER) This part replaces 53235-ME5-000.

53235-KR3-000

$21.67

10

LABEL, FR. FORK CAUTION (NOT AVAILABLE)

87517-MB1-770

Unavailable

11

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

11

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

12

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

13

BOLT, SOCKET (8X32) | Use up to Frame SN DM009049

90154-MB1-000

Unavailable

13

BOLT, SOCKET (8X32) | Use from Frame SN DM009050

90154-ME9-000

$5.73

14

NUT, STEERING STEM

90304-425-000

$9.69

15

WASHER, STEERING STEM

90503-425-000

$4.21

16

CAP, SOCKET BOLT (8MM) This part replaces 91455-MB0-000.

91455-MB0-010

$3.77

16

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77
