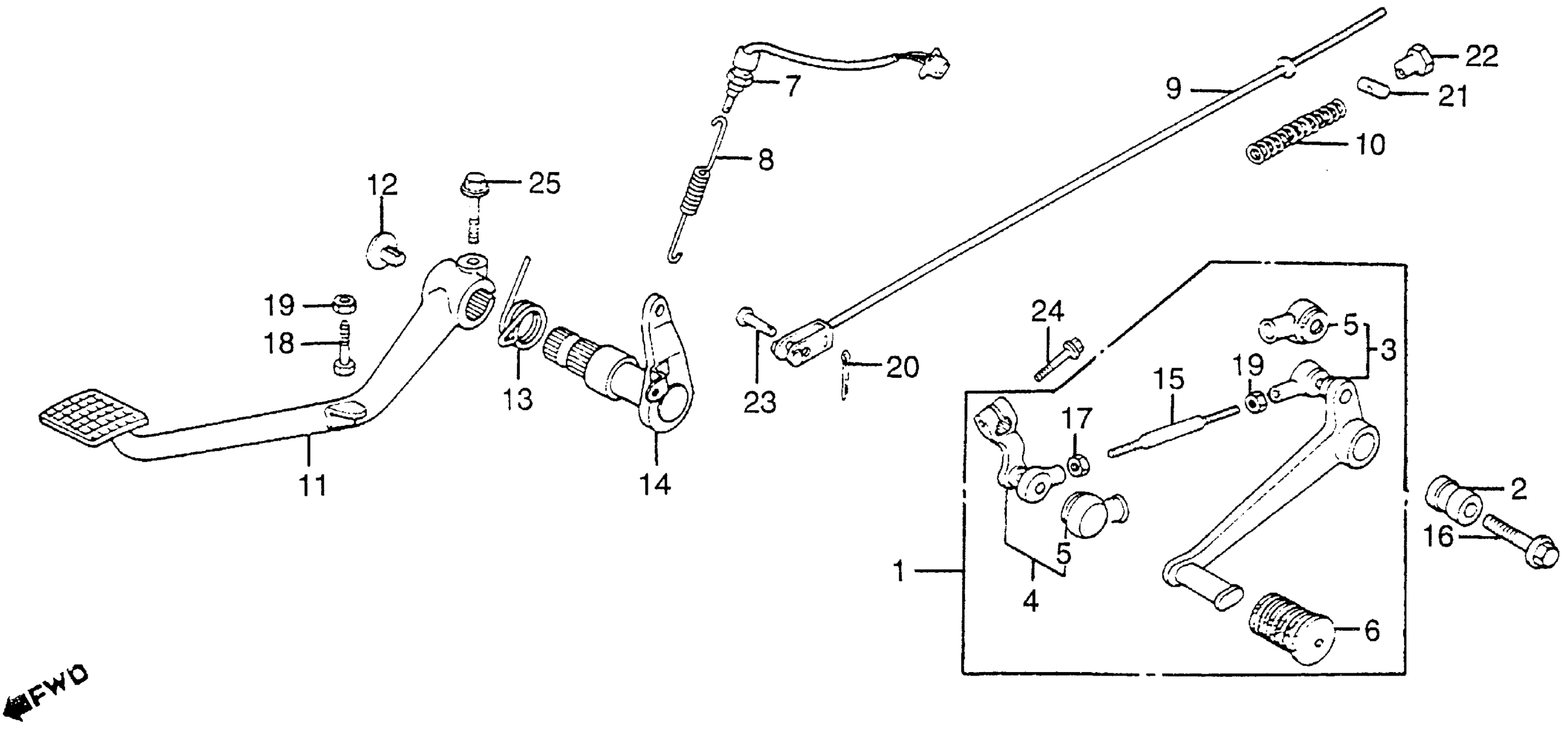

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 GEARSHIFT PEDAL + BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-ME4-000

Unavailable

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$10.84

2

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MT6-000

Unavailable

3

PEDAL, GEARSHIFT

24720-ME4-000

Unavailable

4

ARM, GEARSHIFT

24721-ME4-000

Unavailable

5

COVER, DUST

24724-422-000

$6.21

6

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.23

7

SWITCH ASSY., RR. STOP This part replaces 35350-KE8-700.

35350-KM4-405

Unavailable

7

SWITCH ASSY., RR. STOP

35350-KM4-405

Unavailable

7

SWITCH ASSY., RR. STOP This part replaces 35350-ME4-670.

35350-KM4-405

Unavailable

7

SWITCH ASSY., RR. STOP This part replaces 35350-MG7-000.

35350-KM4-405

Unavailable

8

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-ME4-000

Unavailable

9

ROD, RR. BRAKE (NOT AVAILABLE)

43451-ME4-000

Unavailable

10

SPRING, BRAKE ROD

43472-460-840

Unavailable

11

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-ME4-000

Unavailable

12

CAP, RR. BRAKE SPINDLE (NOT AVAILABLE)

46511-460-840

Unavailable

13

SPRING, BRAKE RETURN

46514-ME4-000

Unavailable

14

SHAFT, RR. BRAKE PIVOT

46515-ME4-000

Unavailable

15

BOLT, TIE ROD (NOT AVAILABLE)

90065-377-000

Unavailable

16

BOLT, SPECIAL FLANGE (8X28)

90103-MB0-000

$4.61

17

NUT, GOVERNOR ARM FIXING

90201-700-000

$0.70

18

BOLT, HEX. (6X28) This part replaces 92000-06028-02.

92201-06028-0B

Unavailable

19

NUT, HEX. (6MM)

94002-06020-0S

$1.00

20

PIN, COTTER (1.6X12)

94201-16120

$0.94

21

JOINT, BRAKE ARM

95015-32001

$0.86

22

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

23

PIN B, BRAKE ROD JOINT

95015-52000

$1.94

24

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

25

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.26

25

BOLT, FLANGE (8X28)

95701-08028-00

$1.26
