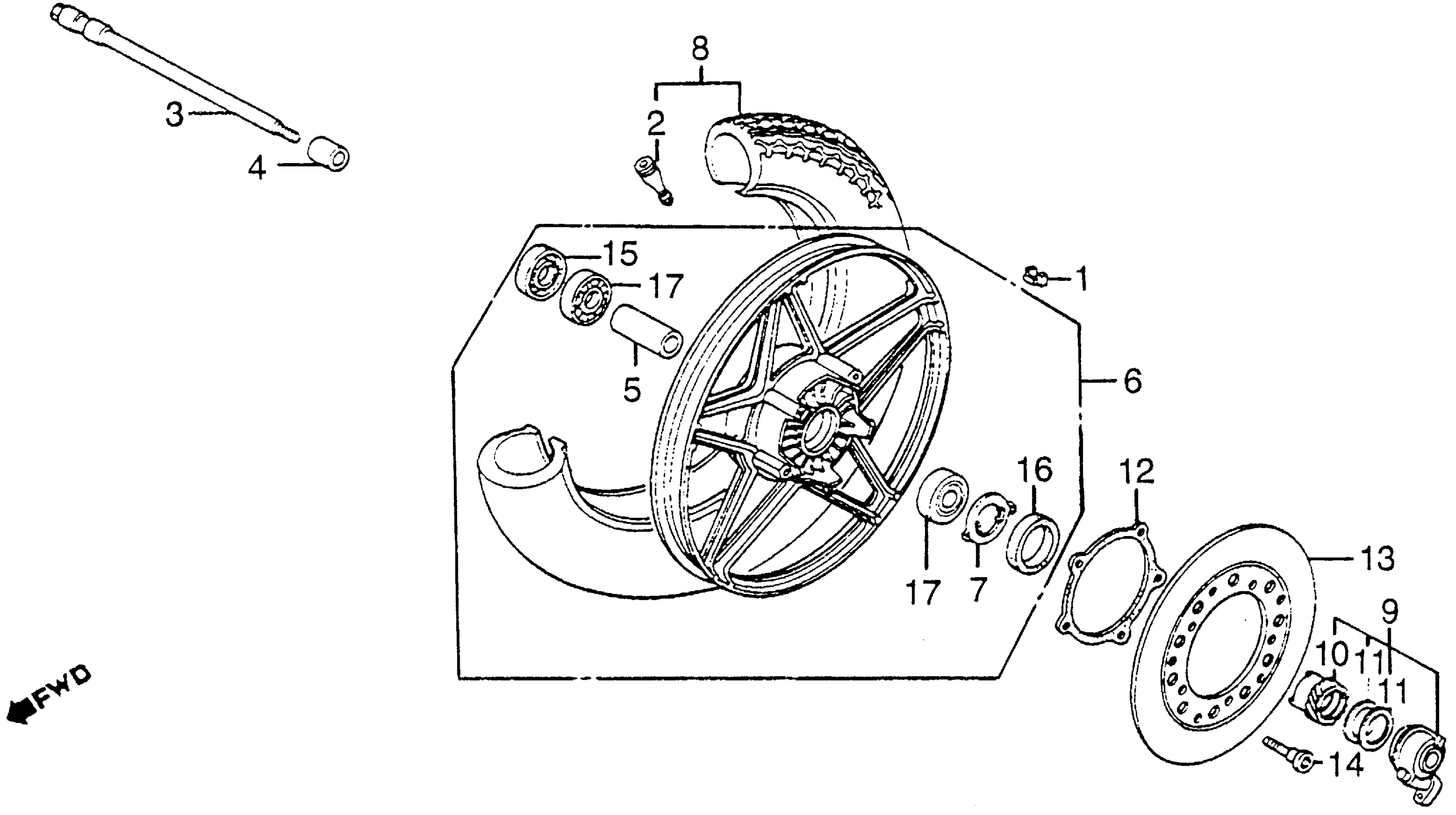

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (10)

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (20)

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

1

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

2

VALVE, RIM (BS)

42753-GC7-821

Unavailable

2

VALVE, RIM This part replaces 42753-GC7-822.

42753-VM0-003

$10.30

2

VALVE, RIM This part replaces 42753-GC7-823.

42753-VM0-003

$10.30

2

VALVE, RIM

42753-VM0-003

$10.30

2

VALVE, RIM (BS)

42753-425-003

$11.00

3

AXLE, FR. WHEEL

44301-MF5-000

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-460-840

Unavailable

5

COLLAR FR,DIST This part replaces 44620-MC9-770.

44620-MC9-405

Unavailable

6

WHEEL, FR. (NOT AVAILABLE)

44650-MC9-770

Unavailable

7

RETAINER, GEAR BOX

44680-410-000

$5.80

8

TIRE ASSY., FR. (100/90-19) (57H) (DUNLOP) This part replaces 44710-ME4-671.

44710-ME5-672

Unavailable

8

TIRE ASSY., FR. (100/90-19) (57H) (DUNLOP) This part replaces 44710-ME4-672.

44710-ME5-672

Unavailable

8

TIRE ASSY., FR. (100/90-19) (57H) (DUNLOP)

44710-ME5-672

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR

44800-MB0-013

$115.81

10

GEAR, SPEEDOMETER

44806-MB0-003

$38.85

11

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

12

SHIM, DAMPING (NOT AVAILABLE)

45128-MB1-000

Unavailable

13

DISK, FR. BRAKE

45251-KW9-970

Unavailable

13

DISK, FR. BRAKE This part replaces 45251-MF5-000.

45251-KW9-970

Unavailable

14

BOLT, FR. DISK (8X33) This part replaces 90105-MB0-000.

90105-MB0-010

Unavailable

14

BOLT, FR. DISK (8X33)

90105-MB0-010

Unavailable

15

DUST SEAL (22X42X7)

91252-MC7-003

$7.46

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

16

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

17

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
