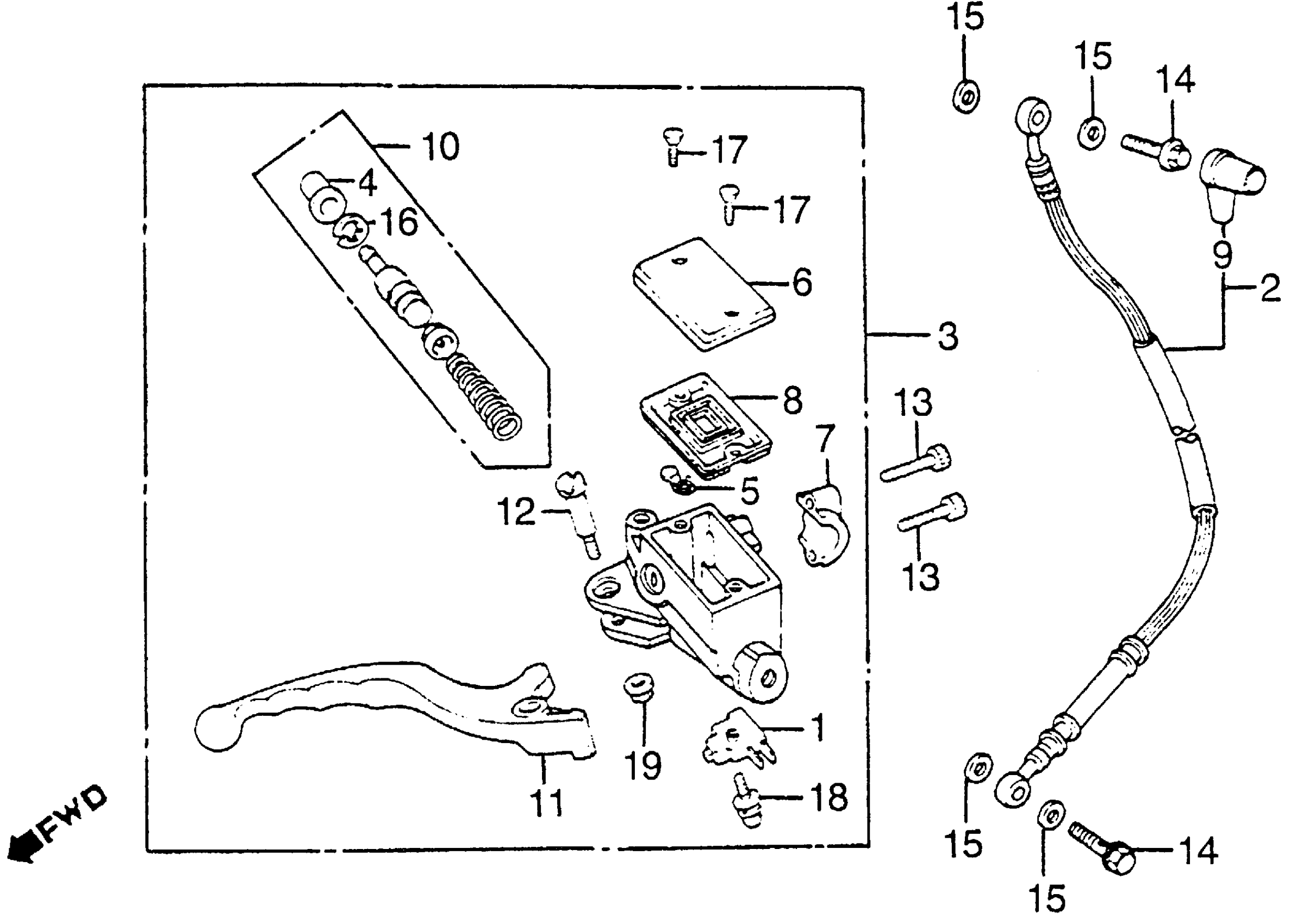

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 FR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-ME4-003.

45126-ME4-013

Unavailable

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-ME4-013

Unavailable

3

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-ME4-405)

45500-ME4-026

Unavailable

4

BOOT

45504-410-003

$12.16

5

PROTECTOR

45512-MA6-006

$4.28

6

CAP

45540-MA6-621

Unavailable

7

HOLDER, MASTER CYLINDER

45517-MB0-006

Unavailable

8

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

8

DIAPHRAGM

45520-MA5-672

$18.13

9

BOOT, MASTER CYLINDER

45522-422-000

$8.68

10

MASTER CYLINDER SET

45530-MA4-671

$47.76

11

LEVER, R. HANDLE This part replaces 53175-MB0-006.

53175-MK7-671

$17.88

11

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

12

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

13

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

14

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

14

BOLT, OIL

90145-300-010

$9.68

14

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$9.68

15

WASHER, OIL BOLT

90545-300-000

$3.99

16

CIRCLIP

90651-MA5-671

$2.66

17

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

17

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

18

SCREW-WASHER (4X12)

93893-04012-08

$1.49

18

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49
