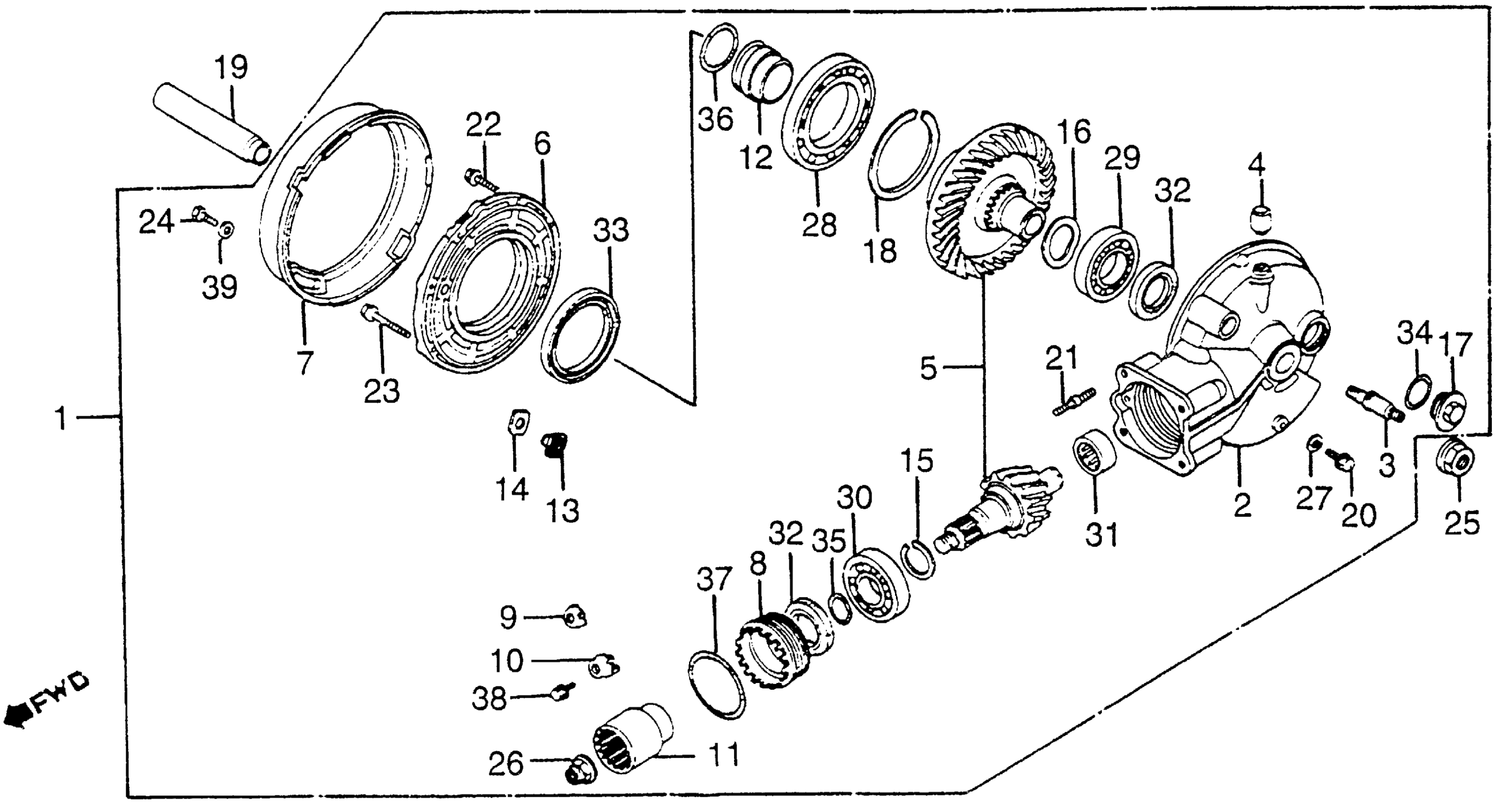

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

GEAR ASSY., FINAL DRIVEN

41300-ME4-000

Unavailable

2

CASE, FINAL GEAR

41301-ME4-000

Unavailable

3

STAY, RUBBER (LOWER) (NOT AVAILABLE)

41303-ME4-300

Unavailable

4

CAP, BREATHER This part replaces 41306-MB0-010.

41306-MB0-020

$9.24

4

CAP, BREATHER

41306-MB0-020

$9.24

4

BREATHER ASSY.

41306-ME5-305

Unavailable

5

GEAR SET, FINAL DRIVEN

41310-ME4-305

Unavailable

6

COVER, GEAR CASE

41321-ME4-000

Unavailable

7

PLATE, DUST GUARD (NOT AVAILABLE)

41324-ME4-000

Unavailable

8

RETAINER, BEARING (NOT AVAILABLE)

41331-ME4-000

Unavailable

9

LOCK A, BEARING ADJ.

41332-415-000

$2.51

10

LOCK B, BEARING ADJ.

41333-415-000

$2.51

11

JOINT, PINION

41410-ME4-000

Unavailable

12

HOLDER, O-RING

41433-ME4-000

Unavailable

13

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

14

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

14

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

15

SHIM A, PINION GEAR (1.32)

41450-ME4-000

Unavailable

15

SHIM B, PINION GEAR (1.38)

41451-ME4-000

Unavailable

15

SHIM C, PINION GEAR (1.44)

41452-ME4-000

Unavailable

15

SHIM D, PINION GEAR (1.50)

41453-ME4-000

Unavailable

15

SHIM E, PINION GEAR (1.56)

41454-ME4-000

Unavailable

15

SHIM F, PINION GEAR (1.62)

41455-ME4-000

Unavailable

15

SHIM G, PINION GEAR (1.68)

41456-ME4-000

Unavailable

16

WASHER, SPECIAL (31X40)

41510-ME4-003

Unavailable

17

CAP, GEAR CASE OIL

41511-ME5-000

$10.61

18

SPACER A, RING GEAR (1.32)

41530-ME4-000

Unavailable

18

SPACER B, RING GEAR (1.38)

41531-ME4-000

Unavailable

18

SPACER C, RING GEAR (1.44)

41532-ME4-000

Unavailable

18

SPACER D, RING GEAR (1.50)

41533-ME4-000

$13.74

18

SPACER E, RING GEAR (1.56)

41534-ME4-000

Unavailable

18

SPACER F, RING GEAR (1.62)

41535-ME4-000

Unavailable

18

SPACER G, RING GEAR (1.68)

41536-ME4-000

Unavailable

18

SPACER H, RING GEAR (1.74)

41537-ME4-000

Unavailable

18

SPACER I, RING GEAR (1.80)

41538-ME4-000

Unavailable

19

COLLAR B, RR. DISTANCE

42625-ME4-000

Unavailable

20

BOLT, SEALING (8MM) This part replaces 90109-ME5-000.

90109-371-000

$2.58

20

BOLT, SEALING (8MM)

90109-371-000

$2.58

21

BOLT, STUD (8X40)

90125-ME4-000

Unavailable

22

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

23

BOLT, FLANGE (10X38) (NOT AVAILABLE)

90134-371-000

Unavailable

24

BOLT, HEX. (6X16)

90170-MB0-000

$2.54

25

NUT, U (14MM)

90305-GE8-003

$3.86

25

NUT, U (14MM) This part replaces 90305-MA1-003.

90305-GE8-003

$3.86

26

NUT, HEX. (16MM)

90381-MB0-010

$6.90

27

WASHER (8MM)

90471-580-000

$2.92

28

BEARING, RADIAL BALL (55X90X11)

91051-ME4-003

Unavailable

28

BEARING, RADIAL BALL (55X90X11) This part replaces 91051-ME4-004.

91051-ME4-003

Unavailable

29

BEARING, RADIAL BALL (30X52X13) (NOT AVAILABLE)

91052-ME4-003

Unavailable

29

BEARING, RADIAL BALL (30X52X13) This part replaces 91052-ME4-004.

91052-ME4-003

Unavailable

30

BEARING, RADIAL BALL (22X56X16) This part replaces 91061-ME4-003.

91061-ME4-004

Unavailable

30

BEARING, RADIAL BALL (22X56X16)

91061-ME4-004

Unavailable

31

BEARING, NEEDLE (16X15) (NOT AVAILABLE)

91062-ME4-003

Unavailable

31

BEARING, NEEDLE (16X15) (NOT AVAILABLE) This part replaces 91062-ME4-004.

91062-ME4-003

Unavailable

32

OIL SEAL (30X45X7)

91261-ME4-003

Unavailable

32

OIL SEAL (30X45X7) This part replaces 91261-ME4-004.

91261-ME4-003

Unavailable

33

OIL SEAL (55X80X7)

91265-ME4-003

Unavailable

33

OIL SEAL (55X80X7) This part replaces 91265-ME4-004.

91265-ME4-003

Unavailable

34

O-RING (30.8MM)

91302-001-020

$3.75

35

O-RING (19X1.9)

91355-ME4-003

Unavailable

35

O-RING (19X1.9) This part replaces 91355-ME4-004.

91355-ME4-003

Unavailable

36

O-RING (32.5X2.5)

91307-MC8-005

Unavailable

36

O-RING (32.5X2.5) This part replaces 91356-ME4-003.

91307-MC8-005

Unavailable

36

O-RING (32.5X2.5) This part replaces 91356-ME4-004.

91307-MC8-005

Unavailable

37

O-RING (53.5X3.5)

91359-ME4-003

$3.80

37

O-RING (53.5X3.5) This part replaces 91359-ME4-004.

91359-ME4-003

$3.80

38

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

38

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

38

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

39

WASHER, PLAIN (6MM)

94101-06800

$1.49
