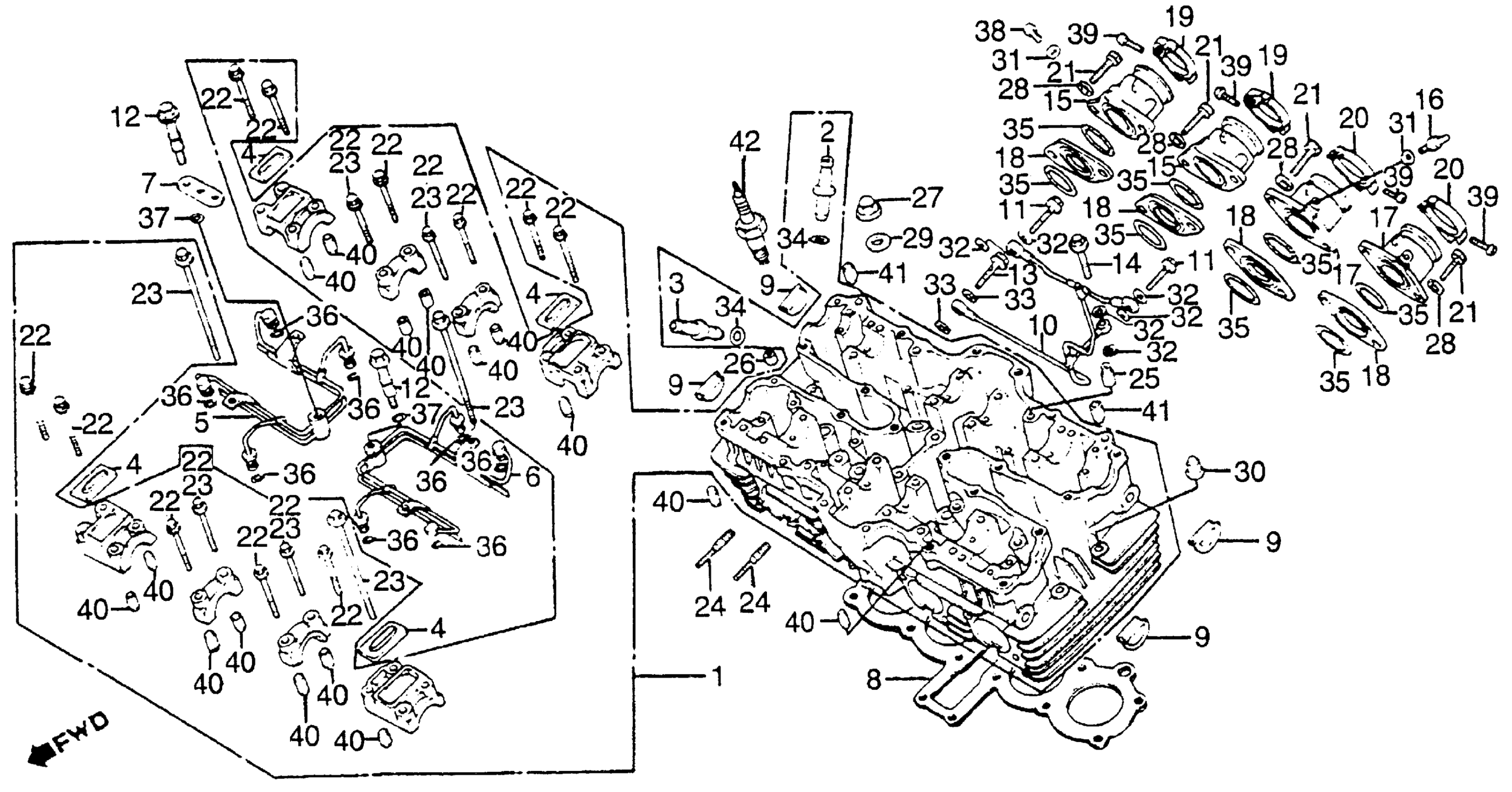

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. (NOT AVAILABLE) | Use up to Engine SN 2009535 This part replaces 12010-ME5-000.

12010-ME5-030

Unavailable

1

CYLINDER HEAD ASSY. (NOT AVAILABLE) | Use up to Engine SN 2009535 This part replaces 12010-ME5-010.

12010-ME5-030

Unavailable

1

CYLINDER HEAD ASSY. (NOT AVAILABLE) This part replaces 12010-ME5-010.

12010-ME5-030

Unavailable

1

CYLINDER HEAD ASSY. (NOT AVAILABLE) This part replaces 12010-ME5-020.

12010-ME5-030

Unavailable

1

CYLINDER HEAD ASSY. (NOT AVAILABLE)

12010-ME5-030

Unavailable

2

GUIDE, VALVE

12205-ME5-315

Unavailable

3

GUIDE, EX. VALVE

12206-ME5-315

Unavailable

4

PLATE, OIL CHAMBER | Use up to Engine SN 2015936 This part replaces 12221-ME5-005.

12221-ME5-035

Unavailable

4

PLATE, OIL CHAMBER | Use up to Engine SN 2015936 This part replaces 12221-ME5-015.

12221-ME5-035

Unavailable

4

PLATE, OIL CHAMBER | Use up to Engine SN 2015936 This part replaces 12221-ME5-025.

12221-ME5-035

Unavailable

4

PLATE, OIL CHAMBER | Use up to Engine SN 2015936

12221-ME5-035

Unavailable

4

PLATE, OIL CHAMBER

12221-ME5-035

Unavailable

5

PIPE, R. OIL | Use up to Engine SN 2008095 This part replaces 12230-ME5-000.

12230-ME5-020

Unavailable

5

PIPE, R. OIL | Use up to Engine SN 2008095 This part replaces 12230-ME5-010.

12230-ME5-020

Unavailable

5

PIPE, R. OIL | Use up to Engine SN 2008095

12230-ME5-020

Unavailable

5

PIPE, R. OIL

12230-ME5-020

Unavailable

6

PIPE, L. OIL | Use up to Engine SN 2008095 This part replaces 12240-ME5-000.

12240-ME5-020

Unavailable

6

PIPE, L. OIL | Use up to Engine SN 2008095 This part replaces 12240-ME5-010.

12240-ME5-020

Unavailable

6

PIPE, L. OIL | Use up to Engine SN 2008095

12240-ME5-020

Unavailable

6

PIPE, L. OIL

12240-ME5-020

Unavailable

7

SPACER, OIL PIPE

12245-ME5-000

Unavailable

8

GASKET, CYLINDER HEAD This part replaces 12251-ME5-003.

12251-ME5-005

Unavailable

8

GASKET, CYLINDER HEAD

12251-ME5-005

Unavailable

9

CAP, CYLINDER HEAD SIDE This part replaces 12331-ME5-000.

12331-ME5-010

$28.08

9

CAP, CYLINDER HEAD SIDE

12331-ME5-010

$28.08

10

PIPE, OIL FEED | Use up to Engine SN 2008095 This part replaces 15520-ME4-000.

15520-ME4-010

Unavailable

10

PIPE, OIL FEED | Use up to Engine SN 2008095

15520-ME4-010

Unavailable

10

PIPE, OIL FEED

15520-ME4-010

Unavailable

11

BOLT B, OIL CONTROL (8X28) This part replaces 15532-HC0-000.

15532-ME5-015

$10.35

11

BOLT B, OIL CONTROL (8X28) This part replaces 15532-ME5-005.

15532-ME5-015

$10.35

11

BOLT B, OIL CONTROL (8X28)

15532-ME5-015

$10.35

12

BOLT D, OIL CONTROL (6X38) This part replaces 15535-ME5-000.

15535-ME5-010

Unavailable

12

BOLT D, OIL CONTROL (6X38)

15535-ME5-010

Unavailable

13

BOLT C, OIL CONTROL (10X30) This part replaces 15545-ME5-005.

15545-ME5-015

Unavailable

13

BOLT C, OIL CONTROL (10X30)

15545-ME5-015

Unavailable

14

BOLT A, OIL CONTROL (8X28) This part replaces 15565-ME5-000.

15565-ME5-010

Unavailable

14

BOLT A, OIL CONTROL (8X28)

15565-ME5-010

Unavailable

15

INSULATOR, R. CARBURETOR (NOT AVAILABLE)

16213-ME4-000

Unavailable

16

JOINT, BOOSTER

16214-MB0-000

$4.76

17

INSULATOR, L. CARBURETOR (NOT AVAILABLE)

16214-ME4-000

Unavailable

18

PLATE, CARBURETOR INSULATOR This part replaces 16215-ME5-000.

16215-ME5-306

Unavailable

18

PLATE, CARBURETOR INSULATOR

16215-ME5-306

Unavailable

19

BAND, R. INSULATOR This part replaces 16223-MA7-000.

16223-ME5-000

Unavailable

19

BAND, R. INSULATOR

16223-ME5-000

Unavailable

20

BAND, L. INSULATOR This part replaces 16224-MA7-000.

16224-ME5-000

Unavailable

20

BAND, L. INSULATOR

16224-ME5-000

Unavailable

21

BOLT, SOCKET (6X22)

90005-ME5-000

Unavailable

22

BOLT, FLANGE (6X45.5) | Use up to Engine SN 2009535

90017-MA6-000

$3.35

22

BOLT, FLANGE (6X45.5) | Use from Engine SN 2009536

90017-MA6-000

$3.35

23

BOLT, FLANGE (6X77) | Use up to Engine SN 2009535

90018-MA6-000

Unavailable

23

BOLT, FLANGE (6X77) | Use from Engine SN 2009536

90018-MA6-000

Unavailable

24

BOLT, STUD (8-6X52)

90035-ME5-000

Unavailable

25

ORIFICE, OIL CONTROL (NOT AVAILABLE) This part replaces 90088-ME5-000.

90088-ME5-010

Unavailable

26

ORIFICE, OIL CONTROL (9MM) This part replaces 90089-ME5-000.

90089-ME5-010

Unavailable

26

ORIFICE, OIL CONTROL (9MM)

90089-ME5-010

Unavailable

27

NUT, FLANGE CAP (8MM) (NOT AVAILABLE)

90203-422-000

Unavailable

28

WASHER (6MM)

90436-ME5-000

Unavailable

29

WASHER, SEALING (8MM)

90441-469-000

$5.28

30

NUT, SPECIAL (8MM) (NOT AVAILABLE)

90444-ME5-000

Unavailable

31

WASHER, SEALING (5MM)

90452-323-000

$1.59

32

WASHER C (8MM)

90475-703-000

$1.49

33

WASHER, OIL BOLT

90545-300-000

$3.99

34

O-RING (10X1.6)

91301-200-000

$3.01

35

O-RING (33.7X2.6) (ARAI)

91306-HA0-003

$3.48

35

O-RING (33.7X2.6) (ARAI) This part replaces 91306-ME5-003.

91306-HA0-003

$3.48

36

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

37

O-RING (5.5X1.4)

91319-ME5-003

$1.85

38

SCREW, PAN (5X8)

93500-05008-0A

$1.49

39

SCREW, PAN (5X20)

93500-05020-0G

$1.49

40

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

41

PIN A, DOWEL (10X16)

94301-10160

$2.28

42

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

42

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

42

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

42

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

42

SPARK PLUG (DPR9EA-9) (NGK)

98069-59916

$2.62

42

SPARK PLUG (X27EPR-U9) (DENSO)

98069-59926

$2.54
