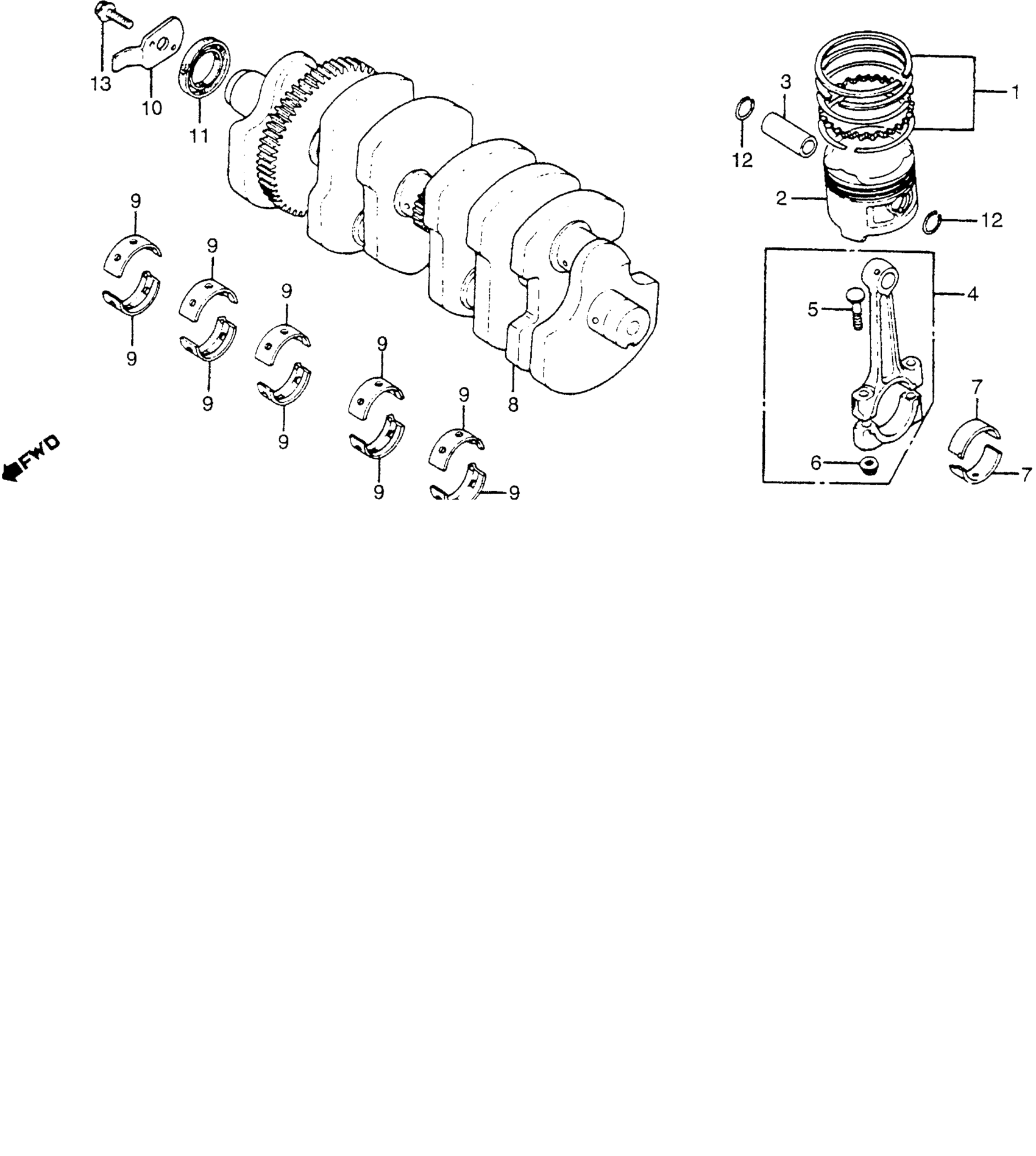

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-ME5-004

Unavailable

1

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

13021-ME5-004

Unavailable

1

RING SET, PISTON (OS 0.50) (NOT AVAILABLE)

13031-ME5-004

Unavailable

1

RING SET, PISTON (0.75) (NOT AVAILABLE)

13041-ME5-004

Unavailable

1

RING SET, PISTON (1.00) (NOT AVAILABLE)

13051-ME5-004

Unavailable

2

PISTON (STD) (NOT AVAILABLE)

13101-ME4-000

Unavailable

2

PISTON (OS 0.25)

13102-ME4-000

Unavailable

2

PISTON (OS 0.50) (NOT AVAILABLE)

13103-ME4-000

Unavailable

2

PISTON (0.75) (NOT AVAILABLE)

13104-ME4-000

Unavailable

2

PISTON (1.00) (NOT AVAILABLE)

13105-ME4-000

Unavailable

3

PIN, PISTON

13111-MA7-000

Unavailable

4

ROD C, CONNECTING This part replaces 13201-ME4-000.

13203-ME4-405

Unavailable

4

ROD C, CONNECTING This part replaces 13202-ME4-000.

13203-ME4-405

Unavailable

4

ROD C, CONNECTING This part replaces 13203-ME4-000.

13203-ME4-405

Unavailable

4

ROD C, CONNECTING

13203-ME4-405

Unavailable

4

ROD D, CONNECTING

13204-ME4-000

Unavailable

4

ROD E, CONNECTING

13205-ME4-000

Unavailable

5

BOLT, CONNECTING ROD (TOKAI TRW) This part replaces 13204-PA6-003.

13204-689-004

Unavailable

5

BOLT, CONNECTING ROD (TOKAI TRW) This part replaces 13204-PA6-004.

13204-689-004

Unavailable

5

BOLT, CONNECTING ROD (TOKAI TRW)

13204-689-004

Unavailable

5

BOLT, CONNECTING ROD (TOKAI TRW) This part replaces 13213-422-004.

13204-689-004

Unavailable

6

NUT, CONNECTING ROD

13205-634-010

$5.26

7

BEARING A, CONNECTING ROD (BLUE)

13214-MA7-000

Unavailable

7

BEARING B, CONNECTING ROD (BLACK)

13215-MA7-000

Unavailable

7

BEARING C, CONNECTING ROD (BROWN)

13216-MA7-000

Unavailable

7

BEARING D, CONNECTING ROD (GREEN)

13217-MA7-000

Unavailable

7

BEARING E, CONNECTING ROD (YELLOW) (NOT AVAILABLE)

13218-MA7-000

Unavailable

8

CRANKSHAFT

13300-ME4-010

Unavailable

9

BEARING A, MAIN (BLUE) (NOT AVAILABLE)

13315-ME4-005

Unavailable

9

BEARING B, MAIN (BLACK) (NOT AVAILABLE)

13316-ME4-005

Unavailable

9

BEARING C, MAIN (BROWN) (NOT AVAILABLE)

13317-ME4-005

Unavailable

9

BEARING D, MAIN (GREEN)

13318-ME4-005

Unavailable

9

BEARING E, MAIN (YELLOW)

13319-ME4-005

Unavailable

9

BEARING F, MAIN (PINK) (NOT AVAILABLE)

13320-ME4-005

Unavailable

10

ROTOR, PULSE GENERATOR (NOT AVAILABLE)

30291-ME5-000

Unavailable

11

OIL SEAL (30X45X8)

91201-323-005

$14.97

12

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

13

BOLT, FLANGE (10X25) This part replaces 95700-10025-08.

95701-10025-08

$2.19

13

BOLT, FLANGE (10X25)

95701-10025-08

$2.19
