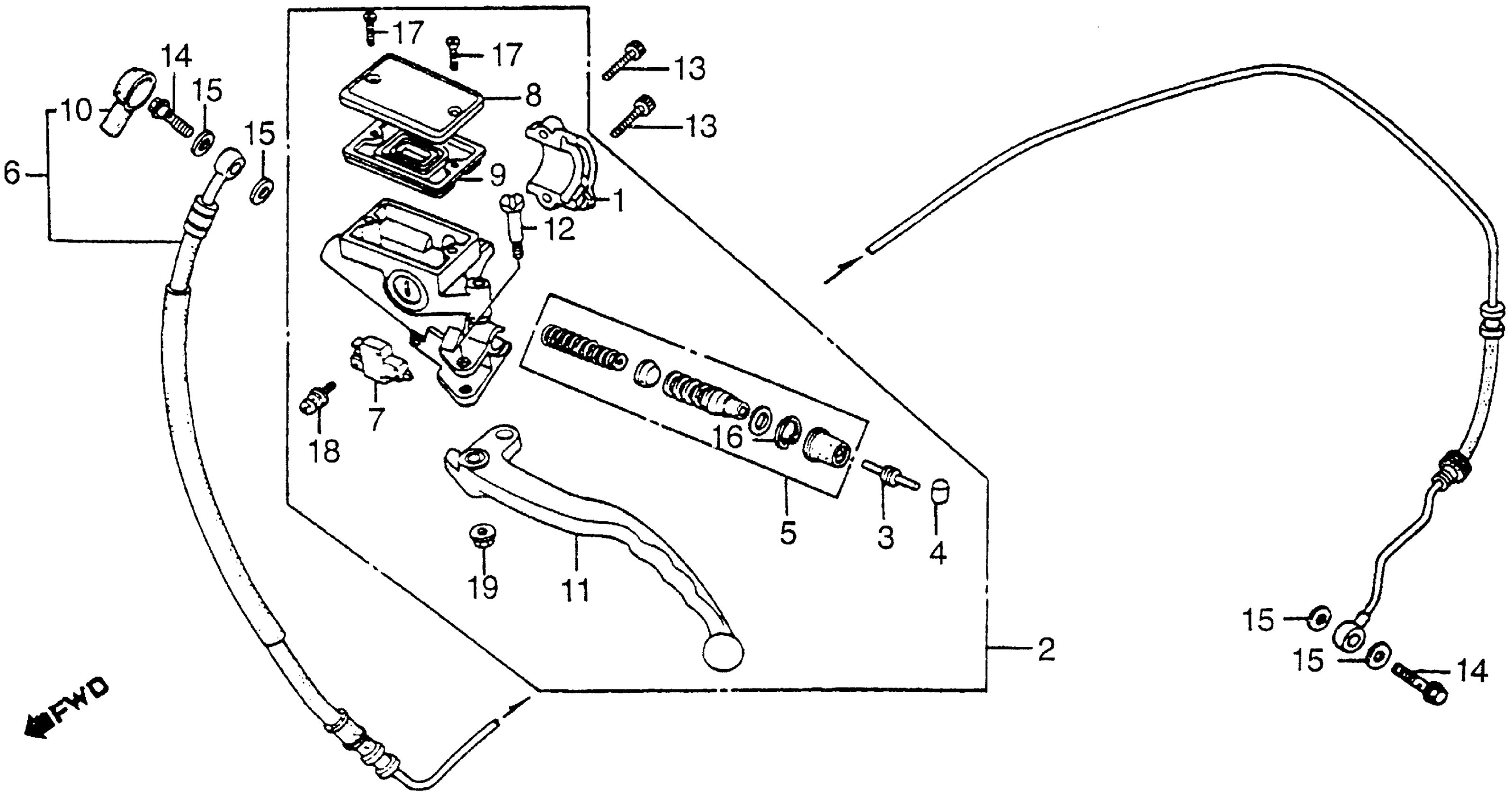

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

HOLDER, CHOKE LEVER

17963-ME5-000

Unavailable

2

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-ME4-673

Unavailable

3

ROD, PUSH

22884-MB0-006

$18.55

4

BUSH

22885-MB0-006

$11.63

5

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$66.74

6

PIPE, CLUTCH (NOT AVAILABLE) This part replaces 22889-ME4-000.

22889-ME4-013

Unavailable

6

PIPE, CLUTCH (NOT AVAILABLE) This part replaces 22889-ME4-003.

22889-ME4-013

Unavailable

6

PIPE, CLUTCH (NOT AVAILABLE)

22889-ME4-013

Unavailable

7

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

8

CAP

45540-MA6-621

Unavailable

9

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$16.27

9

DIAPHRAGM

45520-MA5-672

$16.27

10

BOOT, MASTER CYLINDER

45522-422-000

$7.79

11

LEVER, L. HANDLEBAR

53178-KE8-006

$22.25

11

LEVER, L. HANDLEBAR This part replaces 53178-MB0-006.

53178-KE8-006

$22.25

12

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$8.46

13

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

14

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$8.32

14

BOLT, OIL

90145-300-010

$8.32

14

BOLT, OIL This part replaces 90145-961-000.

90145-300-010

$8.32

15

WASHER, OIL BOLT

90545-300-000

$3.72

16

CIRCLIP (INNER) (18MM)

90651-377-003

$1.77

17

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

17

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

18

SCREW-WASHER (4X12)

93893-04012-07

$1.22

18

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

19

NUT, FLANGE (6MM)

94050-06000

$0.59
