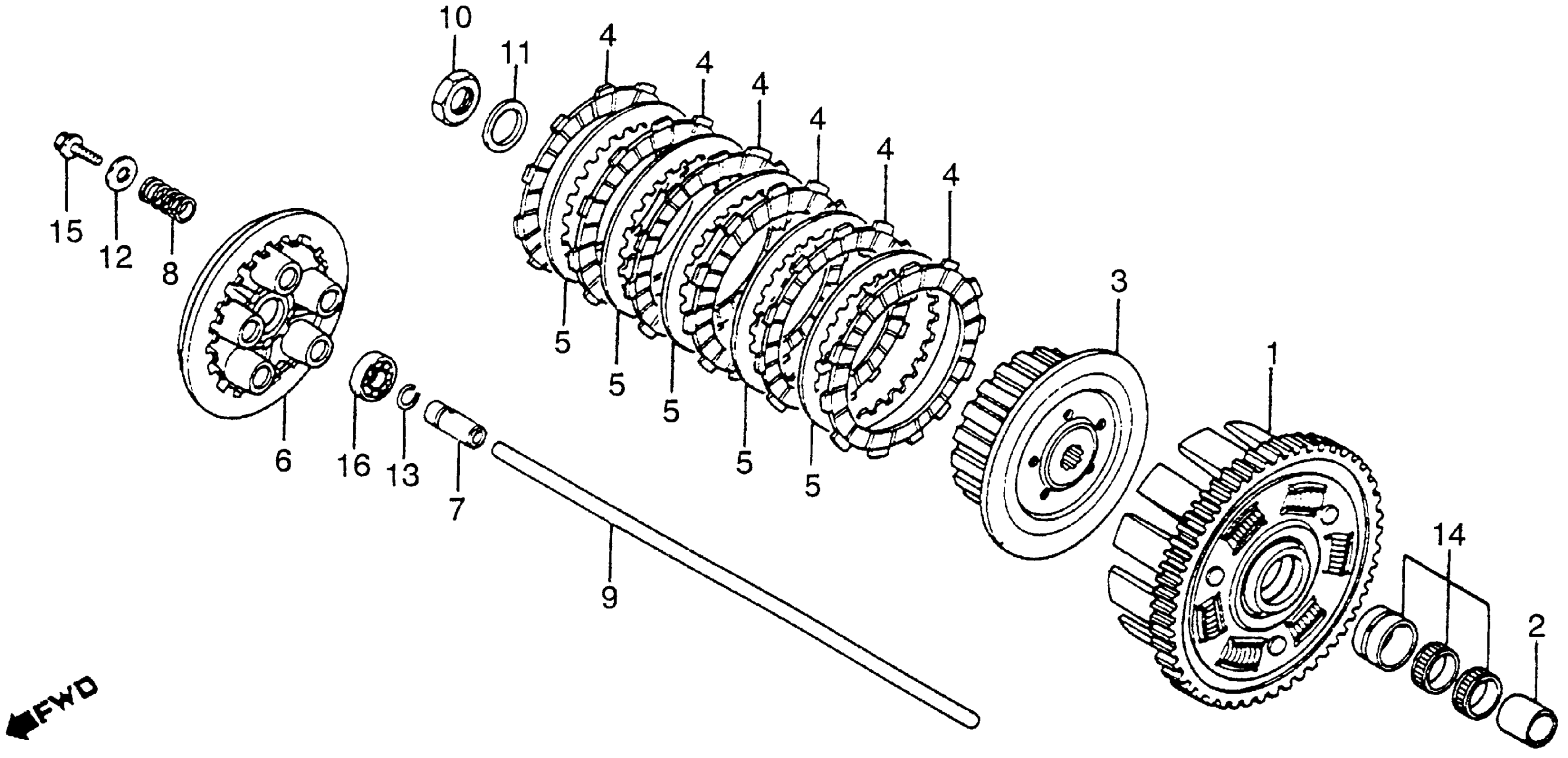

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-ME4-003

Unavailable

2

GUIDE, CLUTCH (OUTER)

22116-ME5-000

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE) | Use up to Engine SN 2008440 This part replaces 22120-ME5-003.

22120-ME5-013

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE)

22120-ME5-013

Unavailable

4

DISK, CLUTCH FRICTION

22201-KY2-000

$14.84

4

DISK, CLUTCH FRICTION This part replaces 22201-MA6-000.

22201-KY2-000

$14.84

5

PLATE, CLUTCH This part replaces 22321-ME5-003.

22321-GHB-811

$12.02

5

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

6

PLATE, CLUTCH PRESSURE

22350-ME5-003

Unavailable

7

PIECE, CLUTCH JOINT

22366-ME5-000

Unavailable

8

SPRING, CLUTCH

22401-MB0-000

$5.40

9

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-MB0-000

Unavailable

10

NUT, LOCK (22MM)

90201-MB0-770

Unavailable

11

WASHER, SPRING (22MM) This part replaces 90432-MB0-000.

90432-MB0-010

$9.93

11

WASHER, SPRING (22MM)

90432-MB0-010

$9.93

12

WASHER (6X19)

90481-259-000

Unavailable

13

CLIP (11MM)

90605-ME5-000

Unavailable

14

BEARING, NEEDLE (21X42X26)

91024-ME5-008

Unavailable

15

BOLT, FLANGE (6X18) This part replaces 95700-06018-08.

95701-06018-08

$1.62

15

BOLT, FLANGE (6X18)

95701-06018-08

$1.62

16

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08
