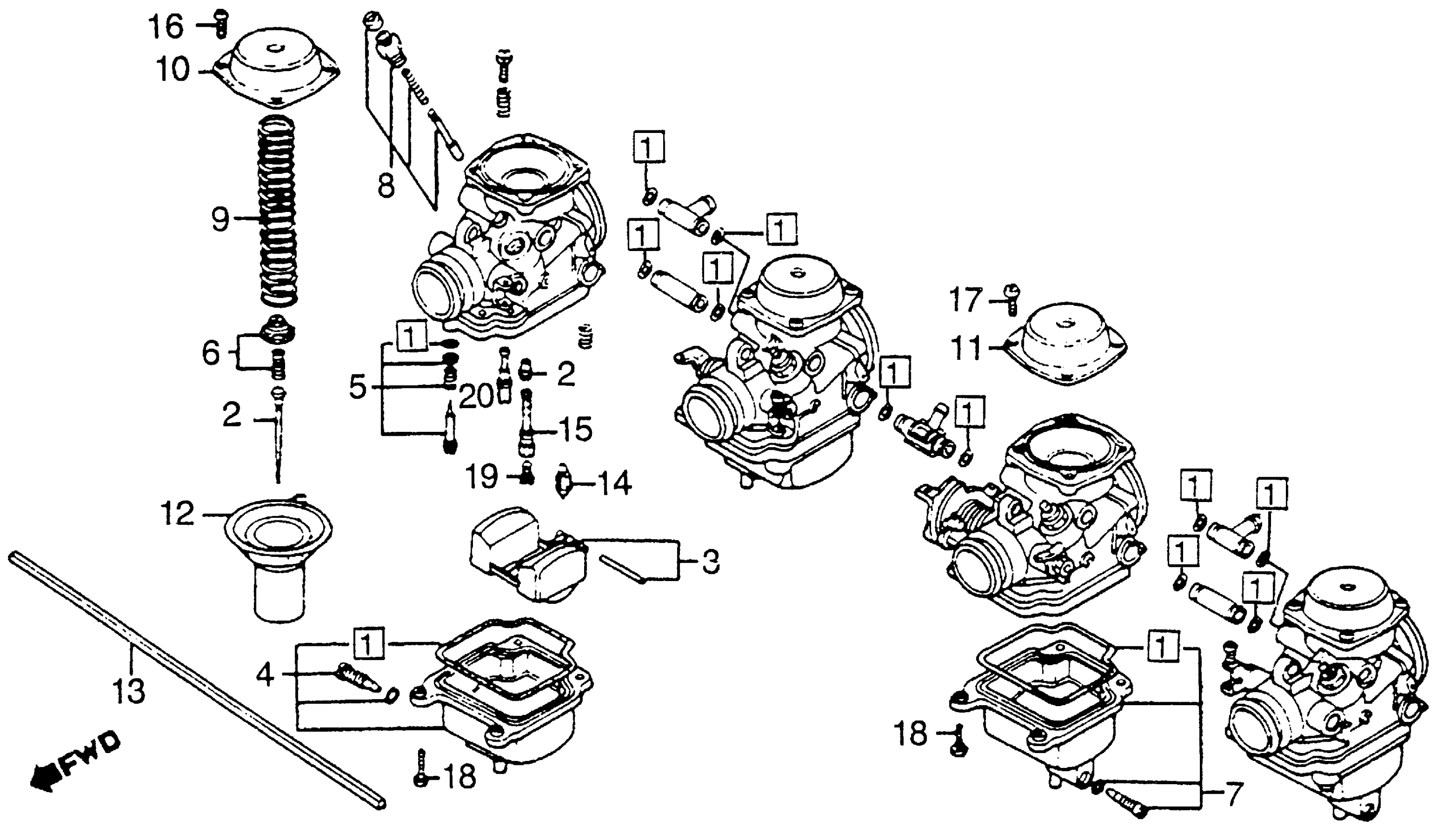

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 CARBURETOR COMPONENTS Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-MA6-003.

16010-MA6-305

$58.13

1

GASKET SET This part replaces 16010-MA6-013.

16010-MA6-305

$58.13

1

GASKET SET

16010-MA6-305

$58.13

2

NEEDLE SET, JET

16012-ME4-671

Unavailable

3

FLOAT SET This part replaces 16013-MA6-003.

16013-KR3-980

$55.27

4

CHAMBER SET, FLOAT This part replaces 16015-MA6-003.

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MA6-013.

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT

16015-MW3-A90

Unavailable

4

CHAMBER SET, FLOAT This part replaces 16015-MW3-R00.

16015-MW3-A90

Unavailable

5

SCREW SET This part replaces 16016-KR3-671.

16016-MY6-770

$21.27

5

SCREW SET This part replaces 16016-ME5-671.

16016-MY6-770

$21.27

6

PLATE SET, VALVE

16037-MA6-003

Unavailable

7

CHAMBER SET, FLOAT

16015-KAB-670

Unavailable

7

CHAMBER SET, FLOAT This part replaces 16045-ME5-671.

16015-KAB-670

Unavailable

7

CHAMBER SET, FLOAT This part replaces 16045-ME5-672.

16015-KAB-670

Unavailable

8

VALVE SET, STARTER

16046-ME4-671

Unavailable

9

SPRING (NOT AVAILABLE)

16051-ME4-671

Unavailable

10

TOP This part replaces 16107-MA6-003.

16107-MBE-000

Unavailable

10

TOP

16107-MBE-000

Unavailable

11

TOP This part replaces 16107-MA6-003.

16107-MBE-000

Unavailable

11

TOP

16107-MBE-000

Unavailable

11

TOP This part replaces 16108-MA6-003.

16107-MBE-000

Unavailable

12

VALVE, THROTTLE (NOT AVAILABLE)

16111-ME4-671

Unavailable

13

ROD (NOT AVAILABLE)

16145-ME4-671

Unavailable

14

VALVE, FLOAT

16155-413-751

$32.50

15

HOLDER, NEEDLE JET

16165-449-771

$31.28

16

SCREW, PAN (4X8)

93500-04008-0A

$1.49

17

SCREW, PAN (4X10)

93500-04010-0A

$1.49

18

SCREW, PAN (4X14)

93500-04014-0A

$1.49

19

JET (#110) This part replaces 99101-GHB-1100.

99101-MBA-1100

$9.11

19

JET (#110) This part replaces 99101-393-1100.

99101-MBA-1100

$9.11

20

JET, SLOW (#35)

99103-GY6-0350

$12.44

20

JET, SLOW (#35) This part replaces 99103-MA4-0350.

99103-GY6-0350

$12.44
