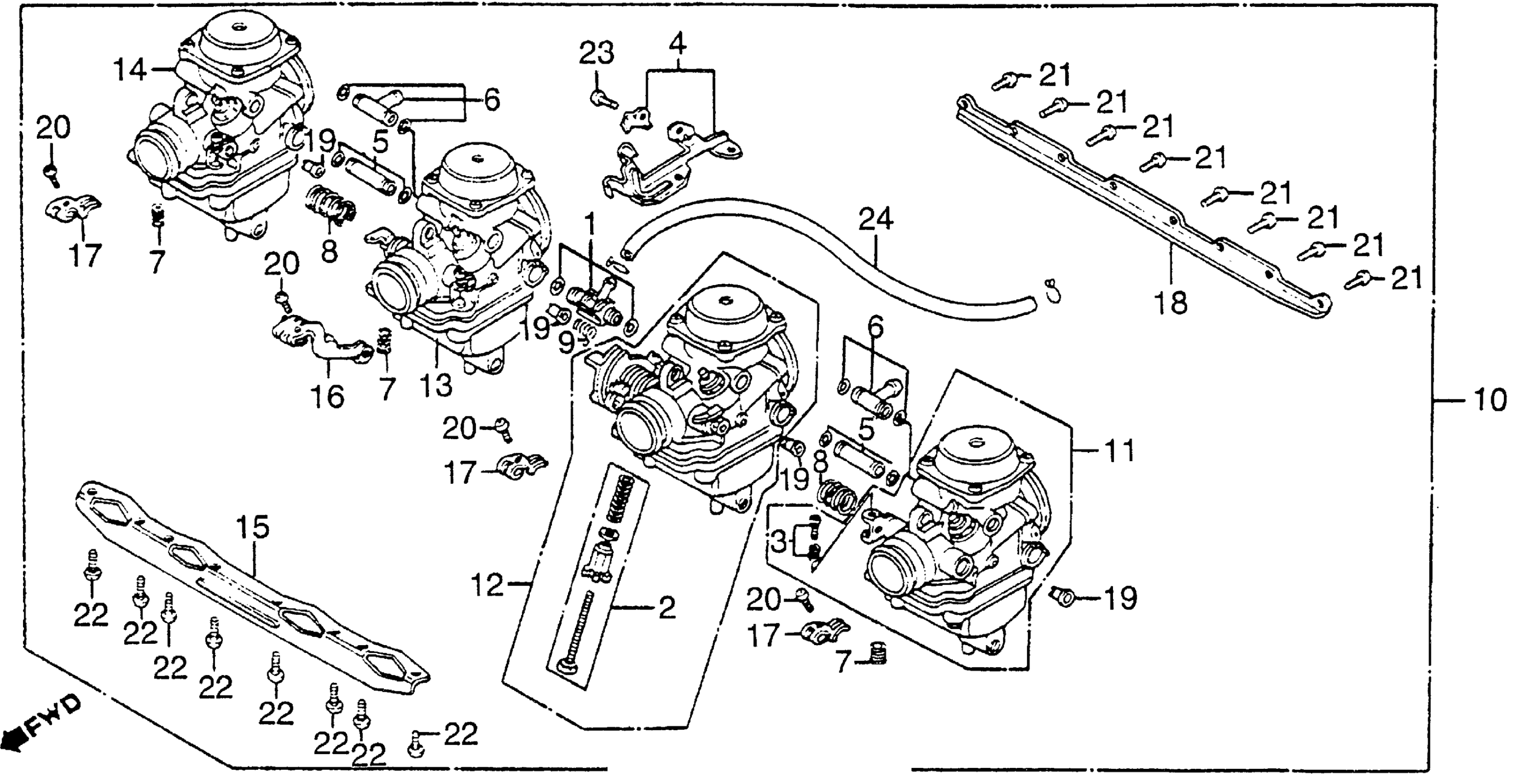

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 CARBURETOR ASSY. LINK Diagram

#

Description
Price

1

JOINT SET This part replaces 16026-MA6-003.

16026-MW3-R00

$52.08

1

JOINT SET

16026-MW3-R00

$52.08

2

SCREW SET This part replaces 16028-KR3-671.

16028-KR3-980

$46.87

2

SCREW SET This part replaces 16028-MA6-003.

16028-KR3-980

$46.87

3

SCREW SET This part replaces 16029-KE8-004.

16029-KEJ-900

Unavailable

4

PLATE SET, STAY (NOT AVAILABLE)

16035-ME4-671

Unavailable

5

JOINT SET, FUEL

16042-ME4-671

Unavailable

6

JOINT SET, FUEL

16047-ME4-671

Unavailable

7

SPRING

16052-MB0-671

$6.23

8

SPRING

16053-MA6-003

$9.07

9

SPRING

16054-MA6-003

$8.67

10

CARBURETOR ASSY.

16100-ME4-671

Unavailable

11

CARBURETOR ASSY. 1

16101-ME4-671

Unavailable

12

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-ME4-671

Unavailable

13

CARBURETOR ASSY. 3 (NOT AVAILABLE)

16103-ME4-671

Unavailable

14

CARBURETOR ASSY. 4

16104-ME4-671

Unavailable

15

STAY, PLATE

16119-ME4-671

Unavailable

16

LEVER, STARTER (NOT AVAILABLE)

16120-MA6-003

Unavailable

17

LEVER, STARTER

16121-MA6-003

$14.62

18

PLATE, STAY

16129-ME4-671

Unavailable

19

COLLAR, SETTING (NOT AVAILABLE)

16172-MA6-003

Unavailable

20

SCREW, PAN (4X8)

93500-04008-0A

$1.49

20

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

21

SCREW, PAN (5X10)

93500-05010-0A

$1.49

22

SCREW, PAN (6X12)

93500-06012-0A

$1.49

23

SCREW-WASHER (4X12)

93892-04012-00

$1.49

24

BULK HOSE, VINYL (7X11X8000) (7X11X250)

95003-19008-60M

Unavailable
