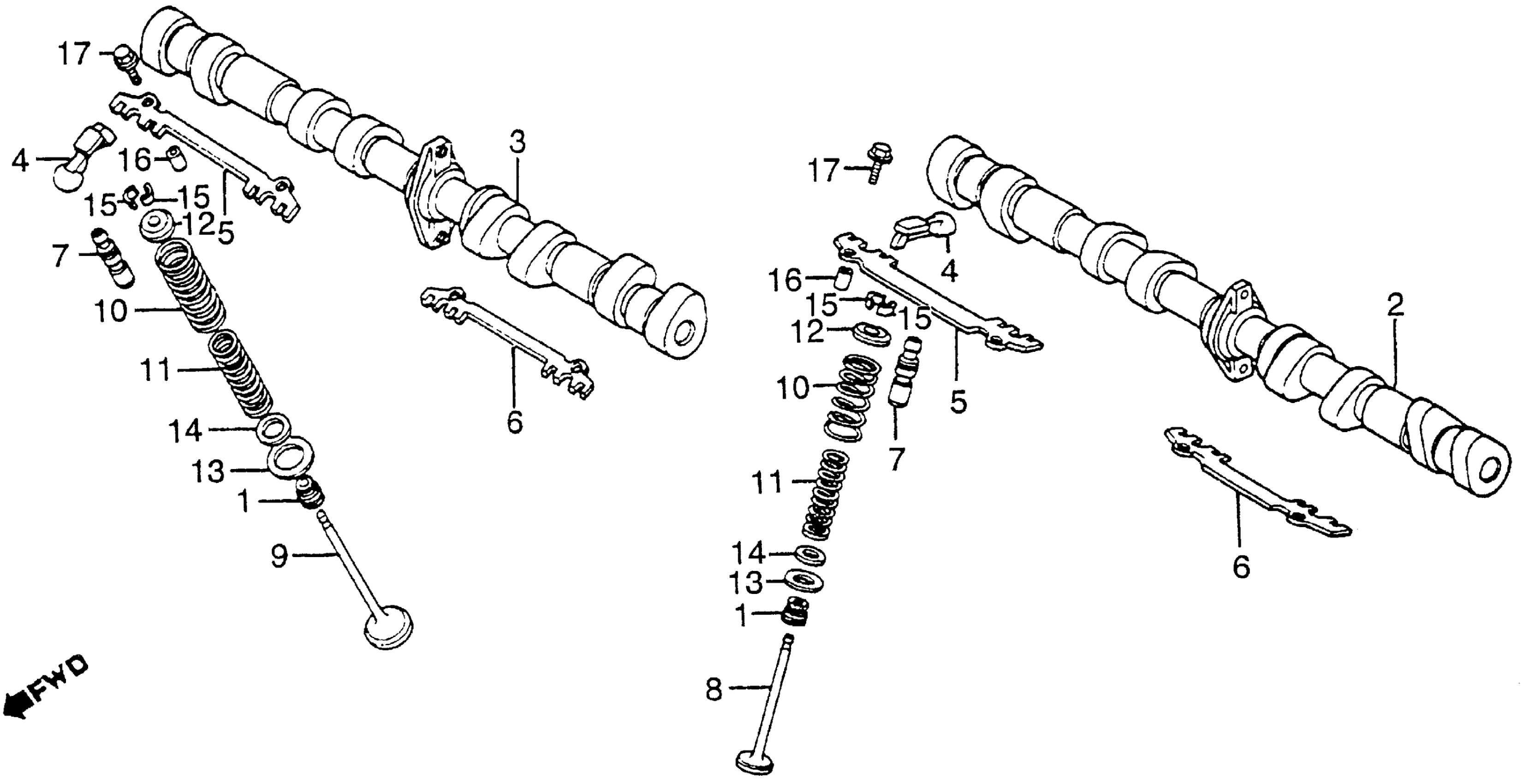

Honda CB550SCA (83) NIGHTHAWK 550, JPN, VIN# JH2PC090-DM000023 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM

12209-KE8-005

$13.05

CAMSHAFT, IN.

14101-ME5-000

Unavailable

CAMSHAFT, EX.

14201-ME5-000

Unavailable

ARM, VALVE ROCKER

14431-ME5-000

Unavailable

GUIDE, R. VALVE ROCKER ARM (NOT AVAILABLE)

14433-ME5-000

Unavailable

GUIDE, L. VALVE ROCKER ARM

14434-ME5-000

Unavailable

ADJUSTER, HYDRAULIC LASH (NOT AVAILABLE)

14451-ME5-003

Unavailable

VALVE, IN.

14711-ME5-000

Unavailable

VALVE, EX.

14721-ME5-000

Unavailable

SPRING, VALVE (OUTER)

14751-ME5-000

Unavailable

SPRING, VALVE (INNER)

14761-ME5-000

Unavailable

RETAINER, VALVE SPRING

14771-GB4-680

$8.68

RETAINER, VALVE SPRING This part replaces 14771-MA6-000.

14771-GB4-680

$8.68

SEAT, VALVE SPRING (OUTER)

14775-MA6-000

$3.67

SEAT, VALVE SPRING (INNER)

14776-MA6-000

Unavailable

COTTER, VALVE

14781-MA6-000

$2.92

PIN, DOWEL (8X8)

90702-MB0-000

$3.80

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
