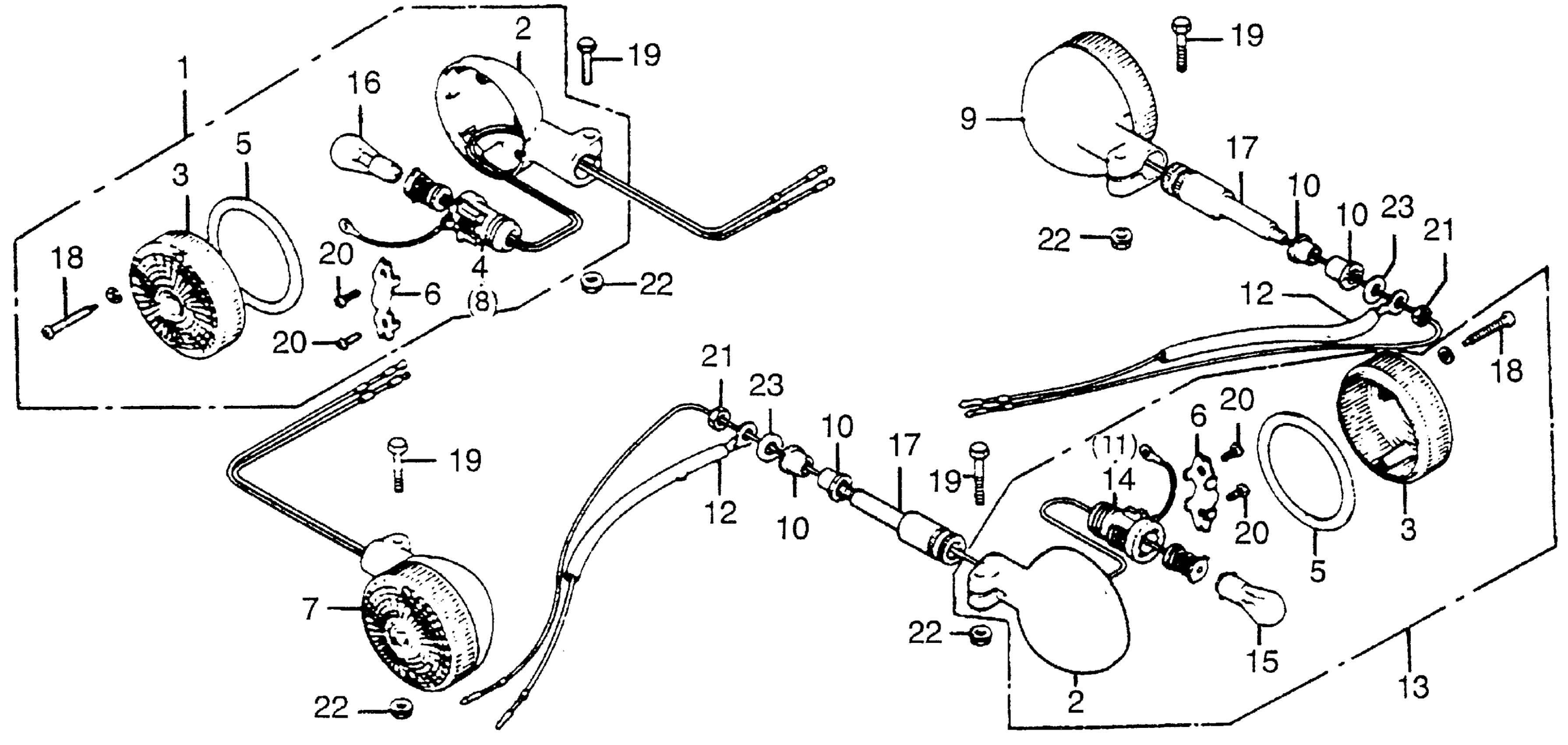

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

1

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

2

BASE, R. FR. TURN SIGNAL (NOT AVAILABLE)

33401-377-671

Unavailable

3

LENS, FR. TURN SIGNAL

33402-377-671

Unavailable

4

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33405-377-671.

33405-461-670

Unavailable

5

GASKET, TURN SIGNAL LENS

33406-377-671

Unavailable

6

HOLDER, FR. TURN SIGNAL SOCKET (NOT AVAILABLE)

33407-377-671

Unavailable

7

TURN SIGNAL ASSY., R. FR. This part replaces 33400-377-671.

33400-461-679

Unavailable

7

TURN SIGNAL ASSY., R. FR. This part replaces 33400-461-670.

33400-461-679

Unavailable

7

TURN SIGNAL ASSY., R. FR.

33400-461-679

Unavailable

7

TURN SIGNAL ASSY., R. FR. This part replaces 33450-377-671.

33400-461-679

Unavailable

8

SOCKET, R. FR. TURN SIGNAL (NOT AVAILABLE) This part replaces 33455-377-671.

33405-461-670

Unavailable

9

TURN SIGNAL, R. RR. (NOT AVAILABLE)

33600-374-671

Unavailable

10

RUBBER, RR. TURN SIGNAL MOUNT

33606-371-000

Unavailable

11

SOCKET, R. RR. TURN SIGNAL

33610-374-671

Unavailable

12

WIRE, TURN SIGNAL GROUND (NOT AVAILABLE)

33620-393-000

Unavailable

13

TURN SIGNAL ASSY., L. RR.

33650-374-671

Unavailable

14

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-374-671

Unavailable

15

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

16

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

16

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

17

BOLT, RR. TURN SIGNAL MOUNT (NOT AVAILABLE)

90155-404-670

Unavailable

18

SCREW, PAN (4X25) This part replaces 90192-377-671.

93500-04025-0A

$1.93

18

SCREW, PAN (4X25)

93500-04025-0A

$1.93

19

BOLT, HEX. (6X35) This part replaces 93000-06035-0B.

93101-06035-0B

Unavailable

19

BOLT, HEX. (6X35) This part replaces 93000-06035-02.

93101-06035-0B

Unavailable

19

BOLT, HEX. (6X35)

93101-06035-0B

Unavailable

20

SCREW, PAN (3X8)

93500-03008-0H

$1.49

21

NUT, HEX. (10MM)

94001-10000-0S

$1.49

22

NUT, FLANGE (6MM)

94050-06080

$1.49

23

WASHER, PLAIN (10MM)

94101-10000

$1.49
