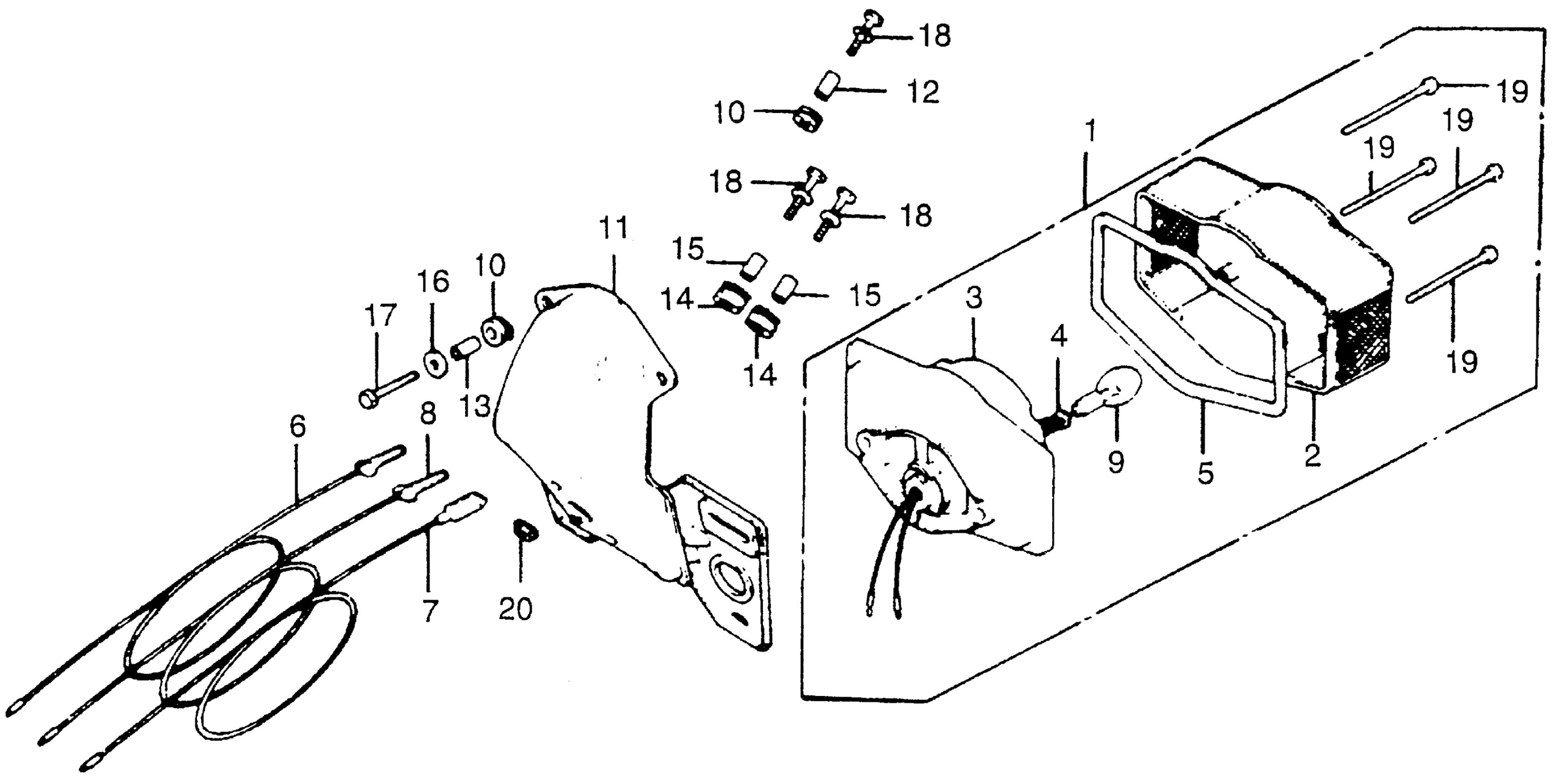

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-341-910

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-900

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

SUB-WIRE, TAILLIGHT

33711-028-000

Unavailable

7

CABLE, TAILLIGHT GROUND (STANLEY) (NOT AVAILABLE)

33712-300-003

Unavailable

8

SUB-WIRE, STOP LIGHT (NOT AVAILABLE)

33713-028-000

Unavailable

8

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT)

33713-028-670

Unavailable

9

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

9

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

10

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

11

BRACKET, NUMBER PLATE This part replaces 84700-393-670.

84700-425-870

Unavailable

11

BRACKET, NUMBER PLATE

84700-425-870

Unavailable

12

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

13

COLLAR, TAILLIGHT UNIT

84706-378-000

Unavailable

14

RUBBER, FENDER

84905-333-000

$4.22

15

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

16

WASHER (20MM)

90581-310-000

$1.90

17

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

17

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

18

BOLT-WASHER (6X22) This part replaces 93494-06022-00.

93404-06022-00

$1.49

19

SCREW, PAN (4X55)

93500-04055-4J

$1.49

20

NUT, FLANGE (6MM)

94050-06080

$1.49
