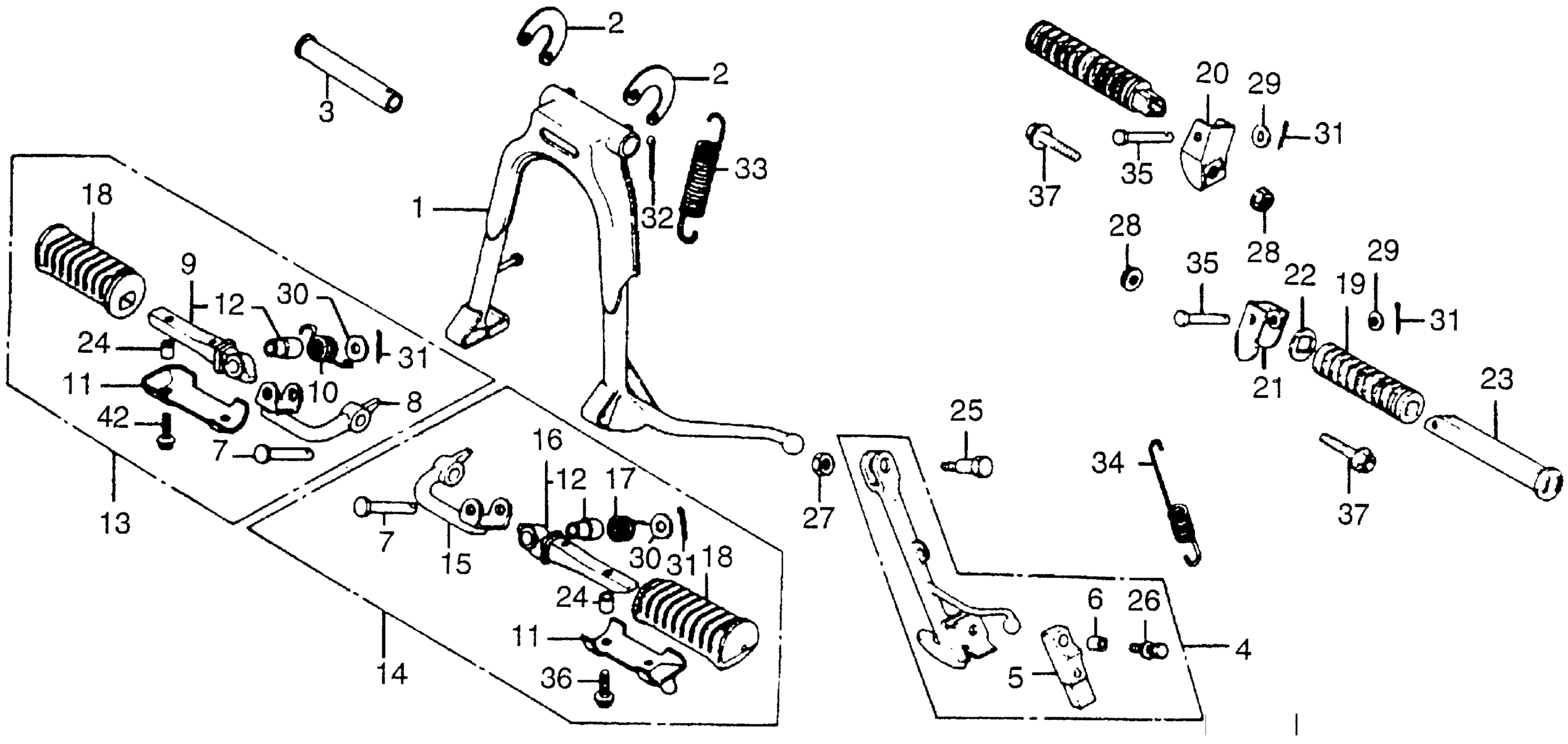

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 STAND + STEP Diagram

#

Description
Price

1

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-404-670ZA

Unavailable

2

PLATE, MAIN STAND SPRING

50523-300-010

Unavailable

3

PIPE, MAIN STAND PIVOT

50526-300-000

Unavailable

4

BAR ASSY., SIDE STAND (NOT AVAILABLE)

50540-404-670

Unavailable

5

RUBBER, STAND

50548-356-700

$10.50

6

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

7

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

7

PIN, STEP BAR JOINT

50603-033-010

$3.30

8

BAR, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50615-404-670ZA

Unavailable

9

ARM, R. FOOTPEG *NH1* (BLACK)

50616-369-670B

Unavailable

10

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

11

STOPPER, STEP RUBBER (NOT AVAILABLE) This part replaces 50619-375-000.

50619-388-000

Unavailable

12

PIPE, FOOTPEG (INNER) (NOT AVAILABLE)

50620-310-000

Unavailable

13

STEP ASSY., R. *NH1* (BLACK)

50630-404-670ZA

Unavailable

14

STEP ASSY., L. *NH1* (BLACK)

50640-404-670ZA

Unavailable

15

BAR, L. STEP *NH1* (BLACK) (NOT AVAILABLE)

50641-404-670ZA

Unavailable

16

STEP, L. *NH1* (BLACK)

50642-369-670B

Unavailable

17

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

18

RUBBER, FOOTPEG

50661-369-000

Unavailable

19

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

19

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

20

BRACKET, R. PILLION FOOTPEG (NOT AVAILABLE)

50711-374-670

Unavailable

21

BRACKET, L. PILLION FOOTPEG (NOT AVAILABLE)

50712-374-670

Unavailable

22

WASHER, PILLION FOOTPEG

50712-377-000

Unavailable

23

BAR, PILLION FOOTPEG

50715-MA6-000

$19.16

23

BAR, PILLION FOOTPEG This part replaces 50715-377-000.

50715-MA6-000

$19.16

24

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

25

SCREW, SIDE STAND PIVOT

90108-283-000

$7.72

26

BOLT-WASHER (6X28)

93401-06028-00

$1.49

26

BOLT-WASHER (6X28) This part replaces 93481-06028-00.

93401-06028-00

$1.49

27

NUT, HEX. (10MM)

94001-10000-0S

$1.49

28

NUT-WASHER (10MM)

94071-10080

$1.97

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49

32

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

32

PIN, COTTER (2.5MM)

94201-25300

$1.49

33

SPRING G, MAIN STAND

95014-71702

$4.08

34

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

34

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

34

SPRING D, SIDE STAND

95014-72402

$2.92

35

PIN C, PILLION FOOTPEG

95015-83000

$2.41

36

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

36

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

37

BOLT, FLANGE (10X28) This part replaces 95700-10028-00.

95701-10028-00

$1.49

37

BOLT, FLANGE (10X28)

95701-10028-00

$1.49
