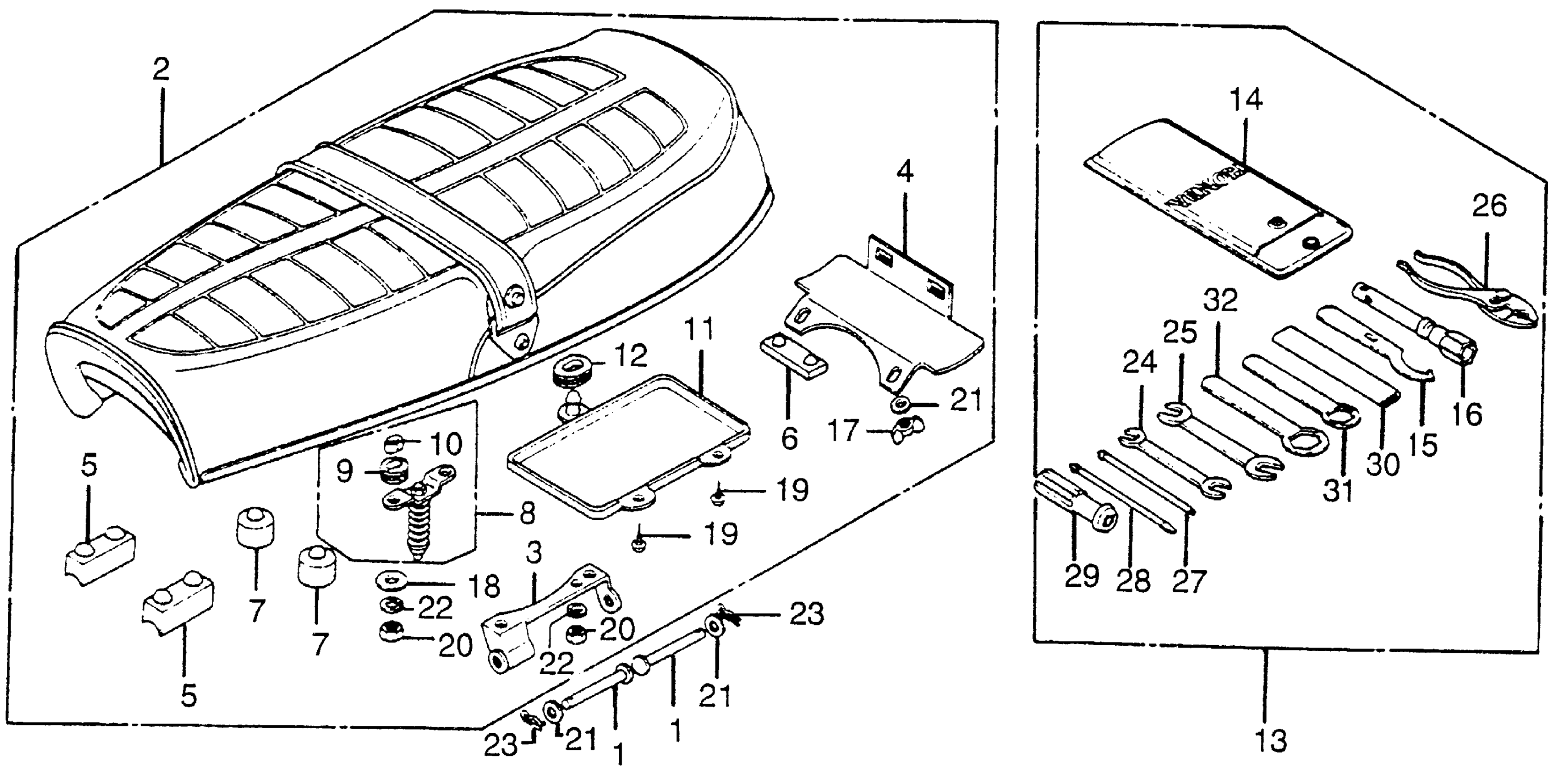

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 SEAT + TOOL Diagram

#

Description
Price

1

BAR, SEAT HINGE

77103-313-000

Unavailable

2

SEAT ASSY. (NOT AVAILABLE)

77200-404-770

Unavailable

3

HINGE, SEAT (NOT AVAILABLE)

77201-323-010

Unavailable

5

RUBBER, SEAT SETTING

77204-292-000

$9.11

6

RUBBER, SEAT SETTING

77204-312-000

$5.05

7

RUBBER B, SEAT SETTING

77206-329-000

$7.04

8

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

8

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

8

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

9

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

9

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

9

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

10

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

10

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

10

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

11

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

12

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

13

TOOL SET (NOT AVAILABLE)

89010-404-670

Unavailable

14

BAG, TOOL

89101-ME5-670

Unavailable

14

BAG, TOOL This part replaces 89101-300-010.

89101-ME5-670

Unavailable

14

BAG, TOOL This part replaces 99008-02000.

89101-ME5-670

Unavailable

15

WRENCH, PIN

89215-404-670

$7.60

16

WRENCH, SPARK PLUG

89216-323-000

Unavailable

17

WINGNUT, AIR CLEANER COVER

90203-PB2-000

$6.56

17

NUT, AIR CLEANER COVER (DACRO COATING) This part replaces 90203-611-000.

90203-PB2-000

$6.56

18

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

18

WASHER, PLAIN (6MM)

94103-06800

$1.49

19

SCREW, TAPPING (5X8)

93901-25080

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

PIN, LOCK (6MM)

94251-06000

$1.49

24

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

25

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

26

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

27

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

28

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

29

GRIP

99003-50000

$3.27

30

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

31

WRENCH, EYE (22MM)

99006-22000

$4.16

32

WRENCH, EYE (24MM)

99006-24000

$4.29
