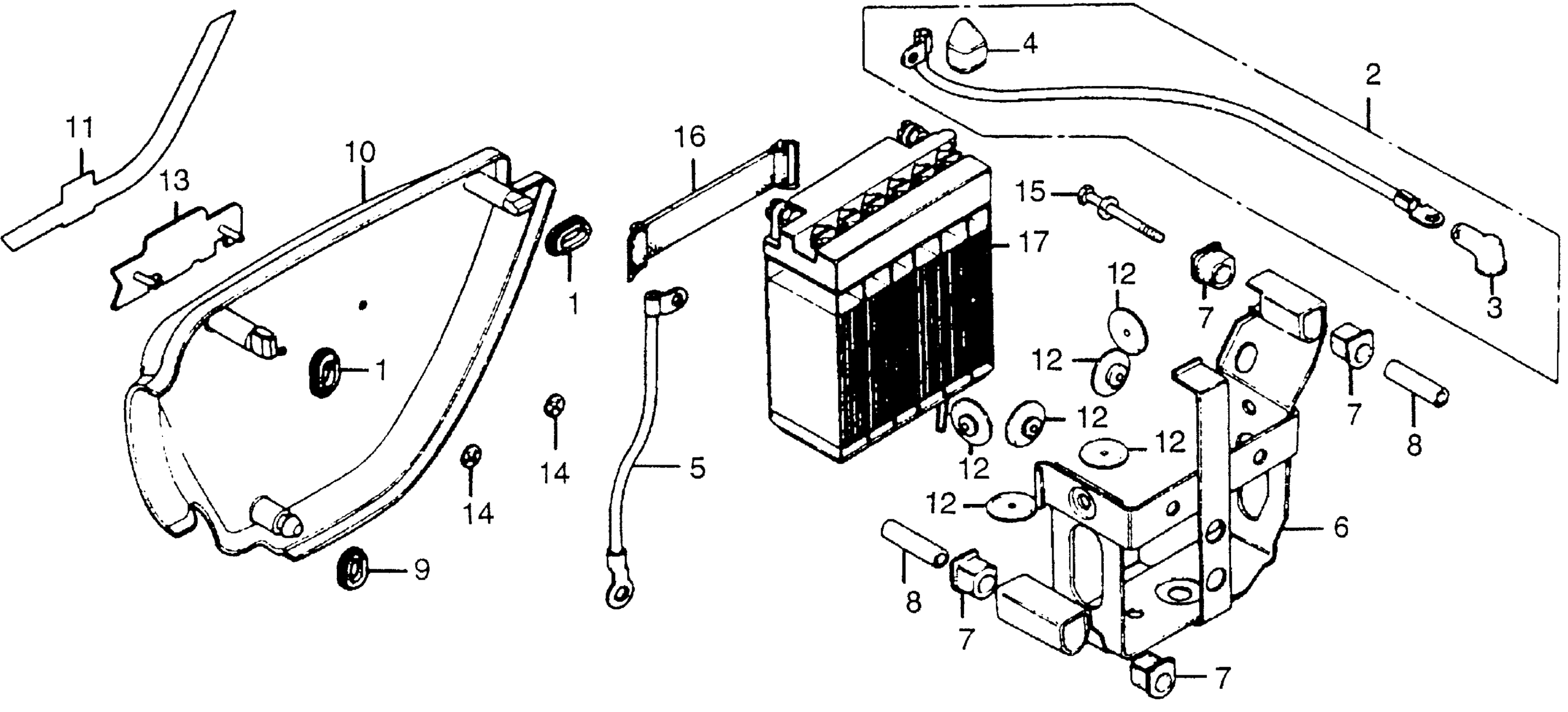

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 RIGHT SIDE COVER + BATTERY Diagram

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-323-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY TERMINAL (NOT AVAILABLE)

32412-323-000

Unavailable

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-323-000

Unavailable

BOX, BATTERY (NOT AVAILABLE)

50325-323-040

Unavailable

RUBBER, BATTERY BOX (NOT AVAILABLE)

50331-323-000

Unavailable

COLLAR, BATTERY BOX (NOT AVAILABLE)

50332-323-000

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83600-404-670ZE

Unavailable

COVER, R. SIDE *R9CS* (CANDY ALPHA RED) (NOT AVAILABLE)

83600-404-670ZG

Unavailable

STRIPE, R. SIDE COVER

83612-404-770

Unavailable

RUBBER, BATTERY BOX

83618-323-000

$2.47

EMBLEM, SIDE COVER (NOT AVAILABLE)

87124-404-670

Unavailable

NUT, SPEED (3MM)

90315-504-000

$3.21

BOLT-WASHER (8X65) (NOT AVAILABLE)

93481-08065-00

Unavailable

BAND F, BATTERY This part replaces 50322-300-010.

95012-17001

$7.23

BAND F, BATTERY This part replaces 95012-17000.

95012-17001

$7.23

BAND F, BATTERY

95012-17001

$7.23

BATTERY (12V12) This part replaces 31500-460-672.

31500-460-672AH

Unavailable

BATTERY (12V12) This part replaces 98203-22250.

31500-460-672AH

Unavailable
