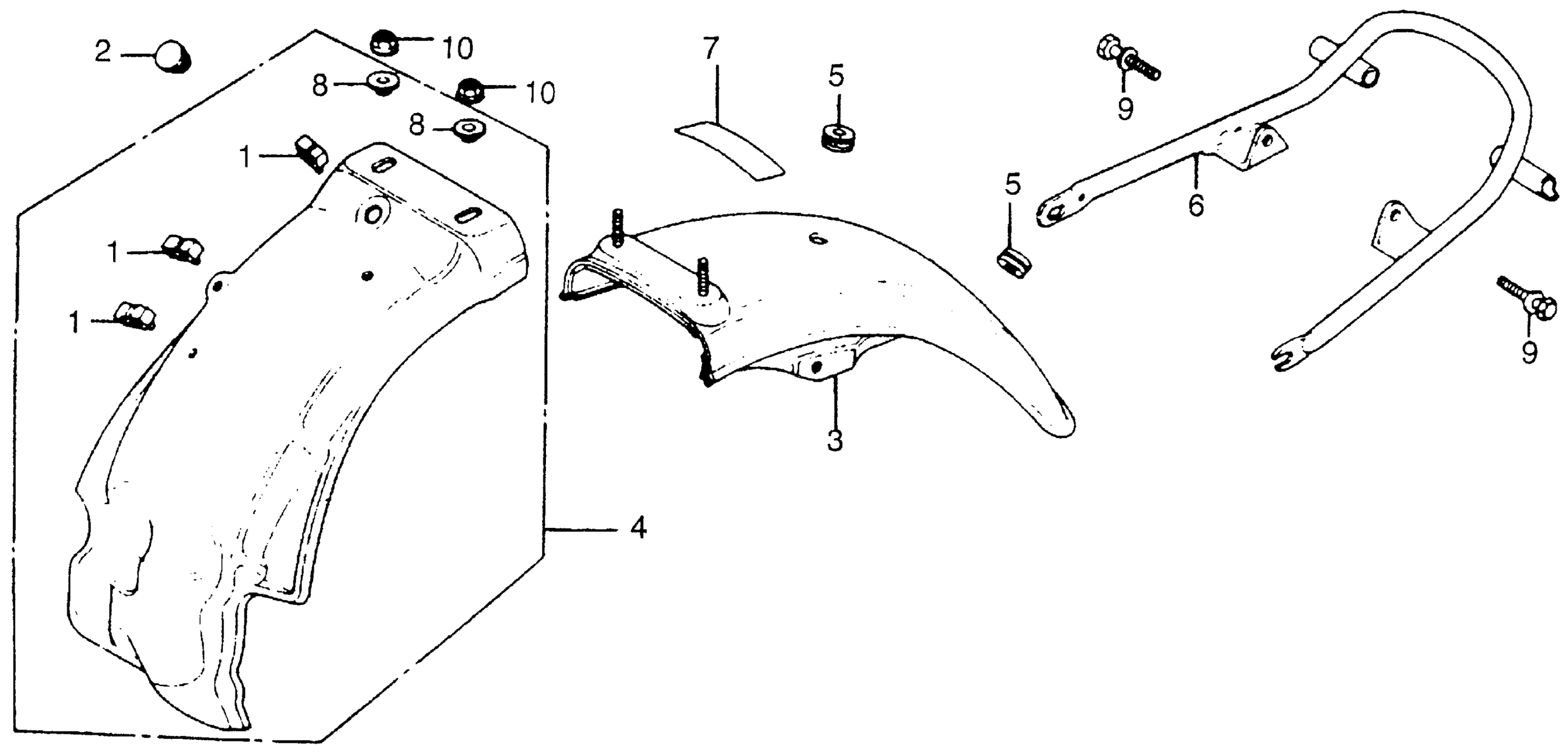

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 REAR FENDER Diagram

#

Description

Price

1

GROMMET, CABLE

32985-300-000

$3.35

2

GROMMET, DOOR SWITCH This part replaces 73871-538-000.

91612-SA5-000

Unavailable

2

GROMMET, DOOR SWITCH

91612-SA5-000

Unavailable

3

FENDER A, RR. (NOT AVAILABLE)

80100-404-670

Unavailable

4

FENDER B, RR. (NOT AVAILABLE)

80101-390-000

Unavailable

5

GROMMET, CABLE

80102-323-000

Unavailable

6

BUMPER, RR. (NOT AVAILABLE)

84100-404-670

Unavailable

7

LABEL, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-371-670

Unavailable

8

WASHER (6X20)

90512-300-000

$3.08

9

BOLT-WASHER (8X32) (NOT AVAILABLE)

93481-08032-00

Unavailable

10

NUT, FLANGE (6MM)

94050-06080

$1.49
