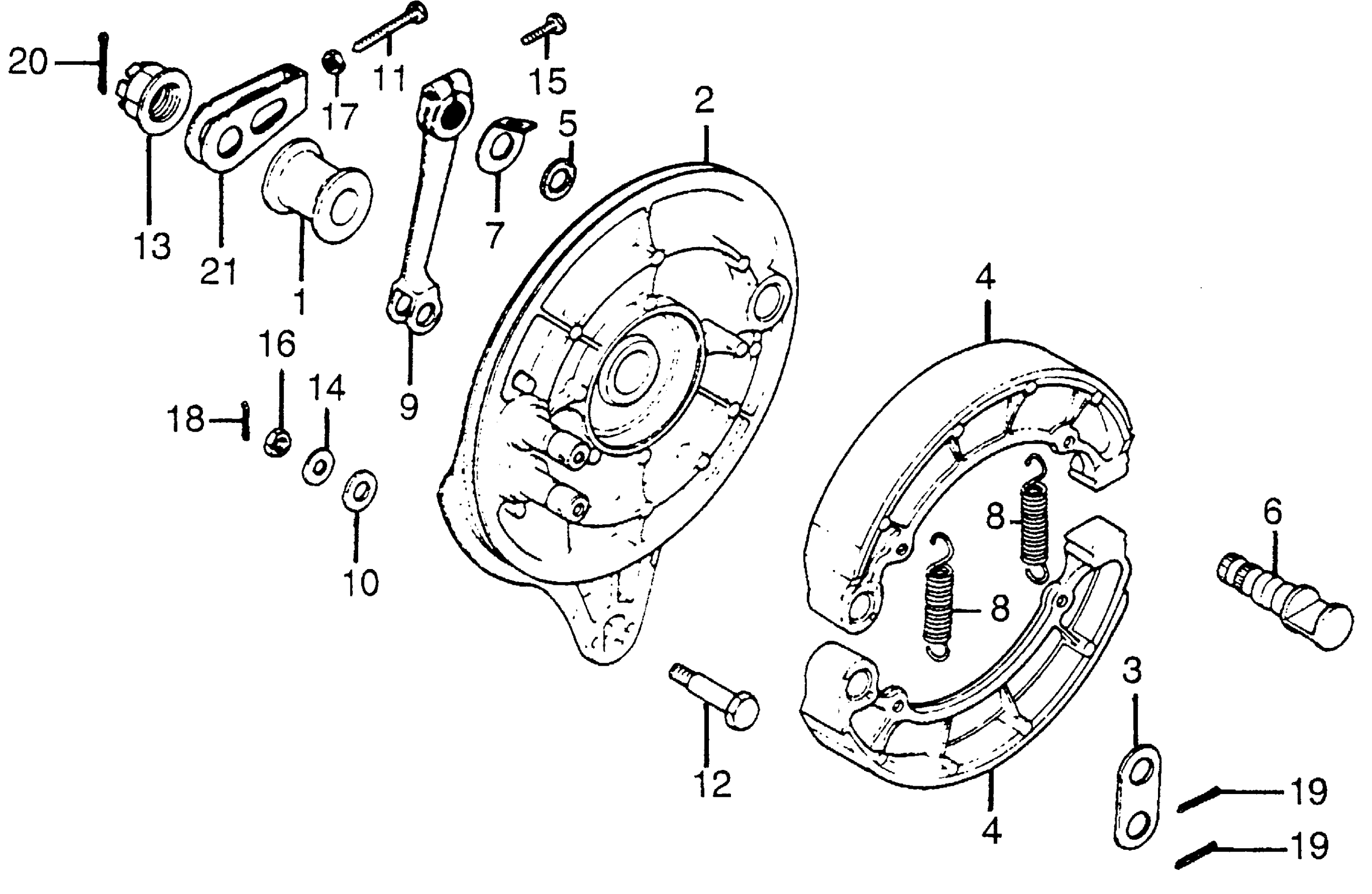

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-390-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 431A0-390-670.

06430-390-405

Unavailable

1

COLLAR, RR. PANEL SIDE (NOT AVAILABLE)

42313-404-000

Unavailable

2

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-393-781

Unavailable

2

PANEL, RR. BRAKE (NOT AVAILABLE) This part replaces 43100-405-000.

43100-393-781

Unavailable

2

PANEL, RR. BRAKE (NOT AVAILABLE) This part replaces 43100-405-010.

43100-393-781

Unavailable

3

WASHER, ANCHOR PIN

43102-319-000

$6.21

3

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

4

SHOE KIT, BRAKE

06430-390-405

Unavailable

4

SHOE KIT, BRAKE This part replaces 43120-404-003.

06430-390-405

Unavailable

4

SHOE KIT, BRAKE This part replaces 43120-458-670.

06430-390-405

Unavailable

5

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

6

CAM, RR. BRAKE (NOT AVAILABLE)

43141-341-020

Unavailable

7

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-341-010

Unavailable

8

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

9

ARM, RR. BRAKE

43410-MR5-000

Unavailable

9

ARM, RR. BRAKE This part replaces 43410-404-000.

43410-MR5-000

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

11

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

12

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

13

NUT, AXLE (18MM)

90305-393-000

Unavailable

14

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

15

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

15

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

16

NUT, HEX. (8MM)

94001-08000-0S

$1.49

17

NUT, HEX. (8MM)

94002-08000-0S

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

18

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

18

PIN, COTTER (2.0X22)

94201-20220

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

18

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

18

PIN, COTTER (2.0X35)

94201-20350

$1.49

18

PIN, COTTER (2.0X22)

94201-29220

$1.49

19

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

19

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

19

PIN, COTTER (2.5MM)

94201-25300

$1.49

20

PIN, COTTER (4.0X30)

94201-40300

$1.49

21

ADJUSTER K, CHAIN

95014-19000

$19.86
