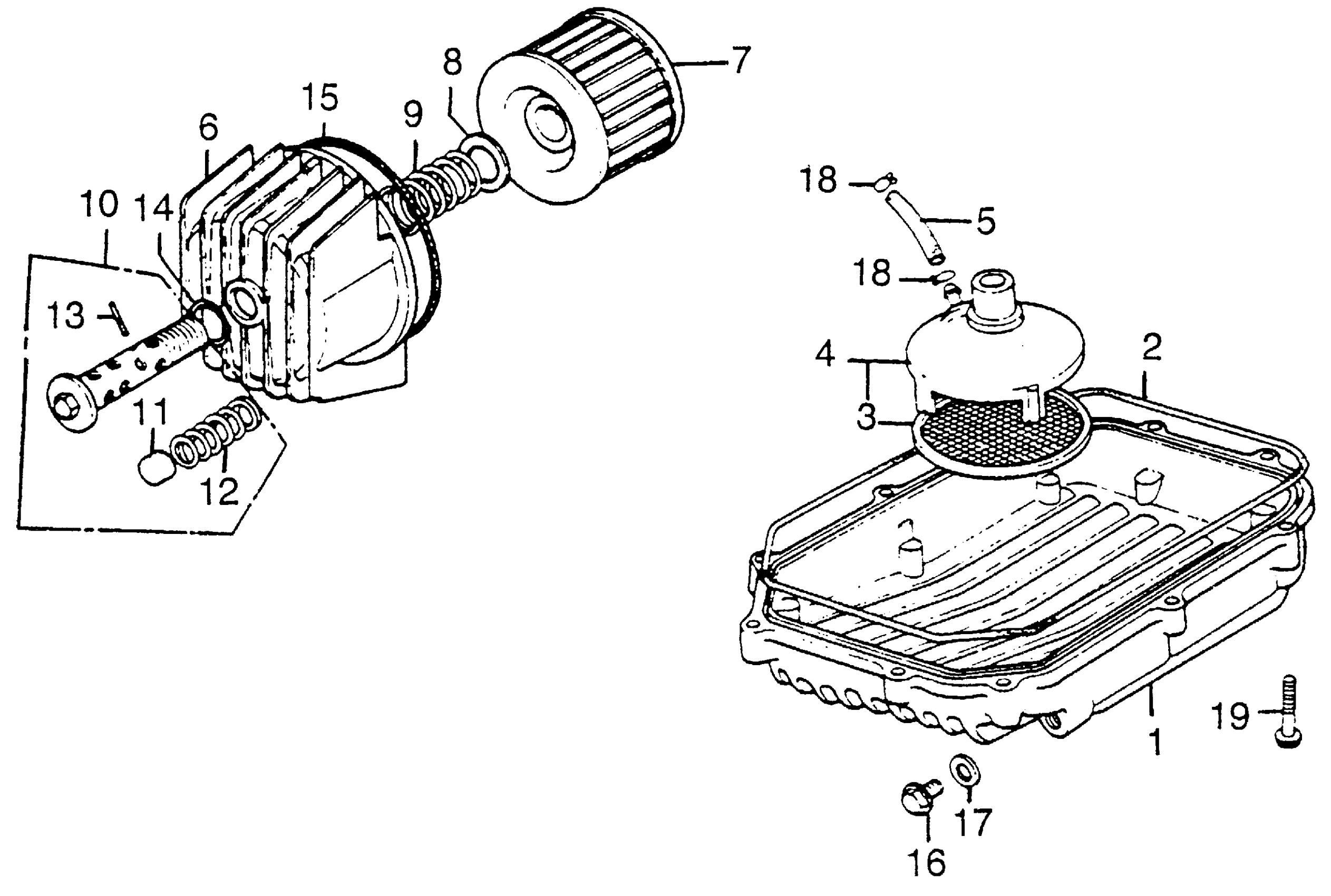

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 OIL FILTER + OIL PAN Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE)

11210-323-000

Unavailable

2

GASKET, OIL PAN

11398-426-000

Unavailable

3

SCREEN, OIL STRAINER

15150-300-000

Unavailable

4

STRAINER, OIL (NOT AVAILABLE)

15150-374-000

Unavailable

5

PIPE, TRANSMISSION OIL (NOT AVAILABLE)

15154-374-000

Unavailable

6

CASE, OIL FILTER (NOT AVAILABLE)

15411-300-010

Unavailable

7

ELEMENT, OIL FILTER This part replaces 15410-422-000.

15410-426-010

$8.10

7

ELEMENT, OIL FILTER This part replaces 15410-426-000.

15410-426-010

$8.10

7

ELEMENT, OIL FILTER

15410-426-010

$8.10

7

ELEMENT, OIL FILTER This part replaces 15412-300-024.

15410-426-010

$8.10

7

ELEMENT, OIL FILTER This part replaces 15412-300-325.

15410-426-010

$8.10

8

SEAT, OIL FILTER SPRING

15414-300-000

$3.62

9

SPRING, OIL FILTER ELEMENT SETTING

15415-300-000

$4.51

10

BOLT, OIL FILTER CENTER

15420-300-020

Unavailable

11

VALVE, CHECK

15473-300-300

$3.87

12

SPRING, CHECK VALVE

15474-300-310

$4.45

13

PIN, SPRING SETTING

15477-300-300

$3.25

14

O-RING (15X2.5)

91301-MY9-003

$2.17

14

O-RING (15X2.5) This part replaces 91302-028-000.

91301-MY9-003

$2.17

15

O-RING (89X4.5) This part replaces 91316-300-005.

91316-425-003

$4.13

15

O-RING (89X4.5)

91316-425-003

$4.13

16

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

17

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

18

CLIP, TUBE (C11)

95002-70000

$1.49

19

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.71

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.71
