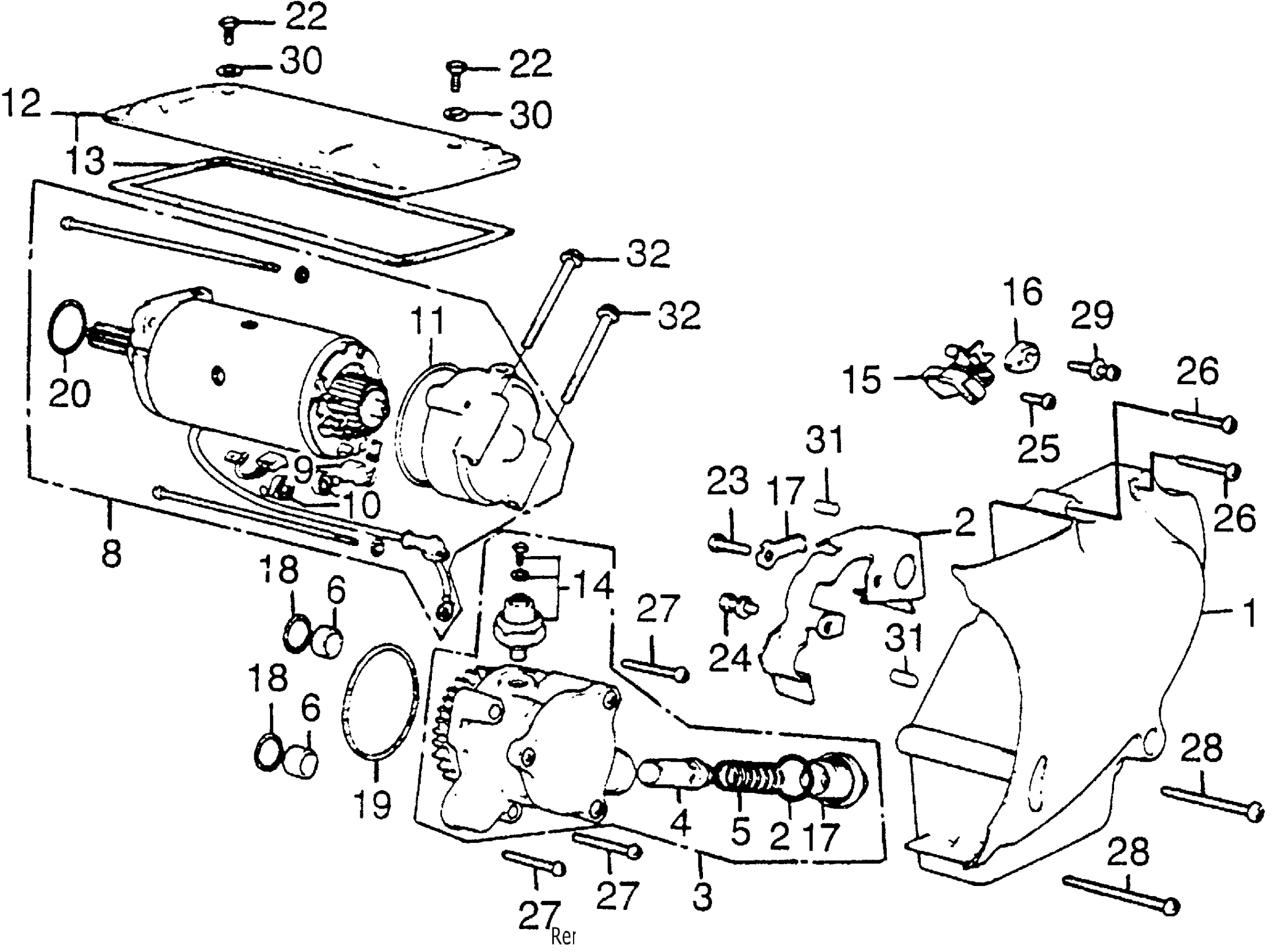

Honda CB550KA (78) 550 FOUR K, JPN, VIN# CB550K-2100001 TO CB550K-2122082 LEFT CRANKCASE COVER + STARTING MOTOR + OIL PUMP Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-374-010

Unavailable

2

PROTECTOR, CASE (NOT AVAILABLE)

11353-363-000

Unavailable

3

PUMP ASSY., OIL (NOT AVAILABLE)

15100-390-000

Unavailable

4

VALVE, RELIEF (NOT AVAILABLE)

15140-300-010

Unavailable

5

SPRING, RELIEF VALVE (NOT AVAILABLE)

15145-300-000

Unavailable

6

COLLAR, O-RING (NOT AVAILABLE)

15155-323-000

Unavailable

7

CAP, OIL PASSAGE (NOT AVAILABLE)

15331-323-003

Unavailable

8

STARTER MOTOR ASSY. This part replaces 31200-323-013.

31200-426-405

Unavailable

9

BRUSH SET, CARBON

31201-292-158

$26.15

10

SPRING, CARBON BRUSH

31204-292-158

$3.83

11

O-RING (60X1.4) This part replaces 31206-286-158.

31206-402-008

Unavailable

11

O-RING (60X1.4)

31206-402-008

Unavailable

12

COVER, STARTER MOTOR (NOT AVAILABLE)

31280-323-000

Unavailable

13

GASKET, STARTER MOTOR COVER (NOT AVAILABLE)

31282-323-300

Unavailable

14

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-333-014.

37240-P13-013

$44.49

14

SWITCH ASSY., OIL PRESSURE (DENSO)

37240-P13-013

$44.49

15

STATOR, NEUTRAL SWITCH (NOT AVAILABLE)

35752-323-000

Unavailable

16

ROTOR, NEUTRAL SWITCH (NOT AVAILABLE)

35753-323-000

Unavailable

17

WASHER, TONGUED (6MM) (NOT AVAILABLE)

90532-323-000

Unavailable

18

O-RING (13.6X2.4)

91301-268-020

$2.95

19

O-RING (47X3.2)

91302-250-010

$7.30

20

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

20

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

20

O-RING (24.4X3.1)

91312-MG7-003

$6.34

21

O-RING (19.4X2.8) This part replaces 91315-044-000.

94608-40000

$1.49

21

O-RING (19.4X2.8)

94608-40000

$1.49

22

BOLT, HEX. (6X12) This part replaces 92000-06012-02.

92101-06012-0B

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0B

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

23

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

24

BOLT-WASHER (6X16)

93402-06016-00

$1.73

24

BOLT-WASHER (6X16) This part replaces 93482-06016-00.

93402-06016-00

$1.73

25

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

26

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

26

SCREW, PAN (6X32)

93500-06032-0A

$1.49

27

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

27

SCREW, PAN (6X35)

93500-06035-0A

$1.49

28

SCREW, PAN (6X55) This part replaces 93500-06055.

93500-06055-0A

$1.49

28

SCREW, PAN (6X55)

93500-06055-0A

$1.49

29

SCREW-WASHER (6X20) (NOT AVAILABLE)

93891-06020-00

Unavailable

30

WASHER, PLAIN (6MM)

94101-06200

$1.49

31

PIN B, DOWEL (6X10)

94302-06100

$2.23

32

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

32

BOLT, FLANGE (6X55)

95701-06055-00

$2.16
